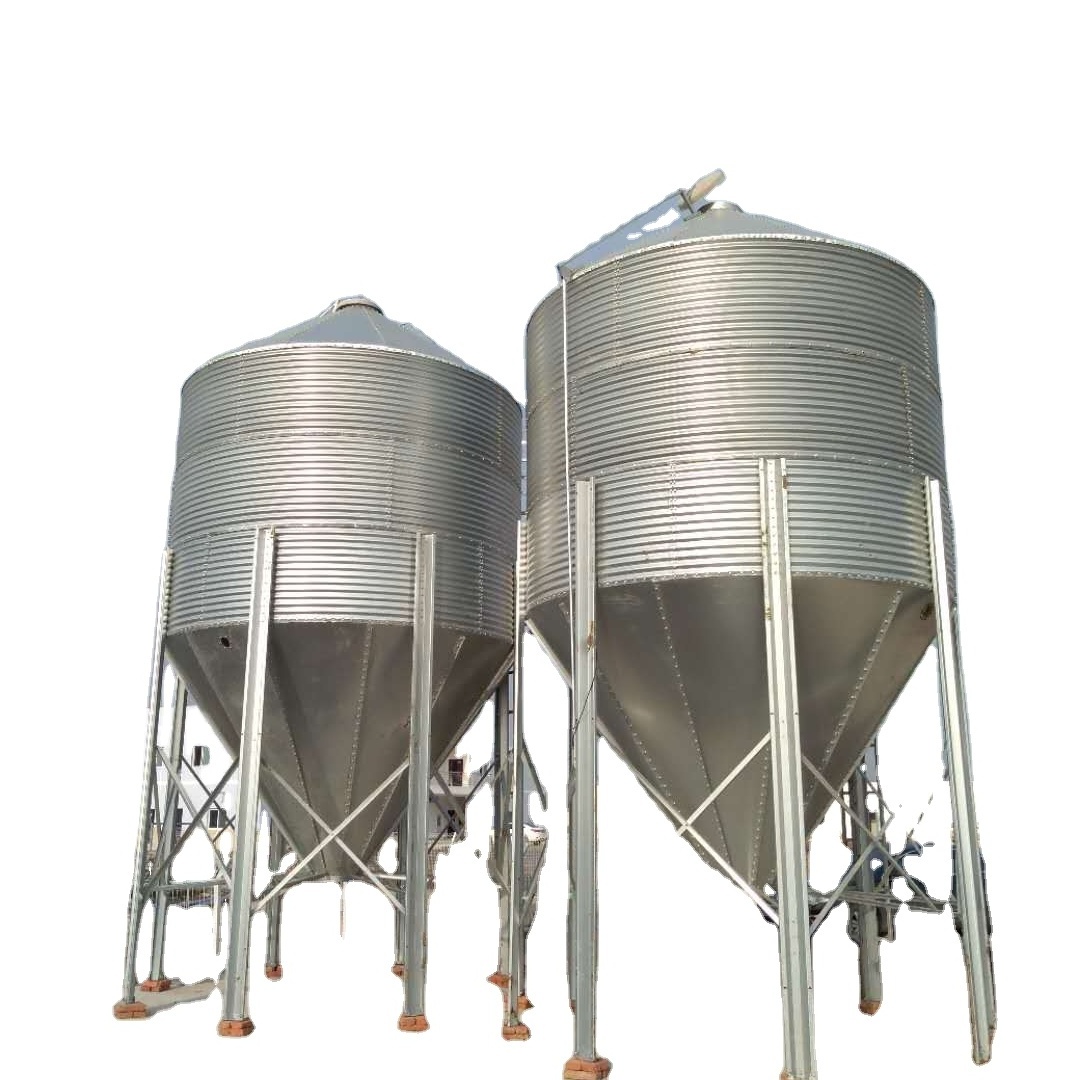

Hot Sale Grain/Wheat/Rice/Coffee Bean/Corn Storage Silos Galvanized Steel Silos

Hot Sale Grain/Wheat/Rice/Coffee Bean/Corn Storage Silos Galvanized Steel Silos

FOB Reference Price: Get Latest Price

≥1 Sets

US $2000

≥20 Sets

US $1800

≥50 Sets

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: MUHE

Dimension(L*W*H):: customized

Weight:: 1500 KG

Usage:: storage

Silo Materials:: 275g/m2 Galvanized

Bottom Type:: 45-60 Hopper Cone

Type:: steel silos

Silo Life:: 25-40 Years

Installation:: Engineer's Professional Guidance

Quick Details

Warranty of core components:: 10 years

Core Components:: silos

Place of Origin:: Shandong, China

Brand Name:: MUHE

Dimension(L*W*H):: customized

Weight:: 1500 KG

Usage:: storage

Silo Materials:: 275g/m2 Galvanized

Bottom Type:: 45-60 Hopper Cone

Type:: steel silos

Silo Life:: 25-40 Years

Installation:: Engineer's Professional Guidance

Products Description

SHANDONG MUHE POULTRY FARM EQUIPMENT

FEED SILO

Product Introduction

Shandong MUHE series feed silo is made of 275 g/㎡ hot-dip galvanized sheet and all screws are made of 8.8-level high-strength hot-dip galvanized bolts, which are corrosion-resistant, anti-oxidation, high-temperature resistance, high strength, long service life, and can withstand a strong storm.
The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy assembly and use.

Advantages：
1). Silo standard ladder which has a guard railing and is safe and reliable;
2). Firm connection and good sealing performance;
3). High-quality plates, for more than 30-year service life

Product Paramenters

S/N	Silo Model	Diameter(mm)	Tonnage(T)	Capacity(m³)	Height(m)	Legs NO.	Layers
01	MH-1860-1	1860	3.2	5.1	4.07	4	1
02	MH-1860-2		1860	4.7	7.4		4.96		2
03	MH-1860-3		1860	6.3	9.7		5.85		3
04	MH-1860-4		1860	7.8	12		6.74		4
05	MH-2240-1	2240	5	7.7	4.55			1
06	MH-2240-2			7.2	11.1		5.44		2
07	MH-2240-3			9.4	14.5		6.33		3
08	MH-2240-4			11	17.9		7.22		4
09	MH-2750-1	2750	7.7	11.9	4.72	6	1
10	MH-2750-2			11	17.1		5.6		2
11	MH-2750-3			14.4	22.3		6.5		3
12	MH-2750-4			18	27.7		7.4		4
13	MH-3180-1	3180	12	18.5	5.3			1
14	MH-3180-2			16	25.4		6.2		2
15	MH-3180-3			20	31		7.1		3
16	MH-3180-4			24	37.8		7.55		4
17	MH-3660-1	3660	16	25.2	5.3	8	1
18	MH-3660-2			22	34.6		6.2		2
19	MH-3660-3			28	43.8		7.1		3
20	MH-3660-4			34	53.1		8		4
21	MH-3660-5			42.5	64		8.965		5
22	MH-4500-3	4500	43	67.3	7.87	10	1

Details Images

Silo Body Produce Machine

The New Silo Body Produce Machine Can Produce the Silo form 3 T to 1000 T.

1. Totally New Machine;

2. Sufficient Production Capacity;

3. Produce Different Size Silo to Meet

Customers' Need;

Silo Ring Sheets

1. C onstructed with Hot-galvanized corrugated

steel plate, Which Can Reduce The Silo

Inside Condensation & Moisture.

2. ZN-Coat thickness≥275 g/m² ;

3. Out ring cover with film which avoid scratch

during transit.

3. Sealing glue is added between the ring

sheets to prevent water entering the silo to

avoid feed mildew.

Silo Inlet Cover & Automatic Opening Control

1.304 SS Top Cover, High Strength, No Rust;

2. With Our Specially Designed Automatic

Elastic Torsion Spring Control Structure,

Customers Can Open and Closed the Top

Cover Easily and Safe.

Air Duct

The Silo Roof Sheet Has An Air Duct, Which Can Balance The Air Pressure Between Silo Side and Outside, Discharge Various Gases And Heat, Ensure Feeding Smoothly and Keep the Silo Inside Clean.
