Quick Details
-
Voltage:
-
380v/3phase/50hz, 380v/3ph/50hz
-
Disc Dia.:
-
Standard
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YAHUI
-
Model Number:
-
YH-03
-
Warranty:
-
1 year warranty, 12 Months
-
Product Name:
-
retractable spray booth
-
Color:
-
According to customer requirements
-
Noise:
-
Noise < 80 Db
-
Usage:
-
Equipment of Spray Paint
-
Lighting System:
-
LED Light
-
Product Keywords:
-
Container Paint Booth
-
Keywords:
-
Spary Booth
-
Optional Accessories:
-
Accept
Quick Details
-
Power:
-
15KW
-
External Size:
-
as required
-
Internal Size:
-
as required
-
Voltage:
-
380v/3phase/50hz, 380v/3ph/50hz
-
Disc Dia.:
-
Standard
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YAHUI
-
Model Number:
-
YH-03
-
Warranty:
-
1 year warranty, 12 Months
-
Product Name:
-
retractable spray booth
-
Color:
-
According to customer requirements
-
Noise:
-
Noise < 80 Db
-
Usage:
-
Equipment of Spray Paint
-
Lighting System:
-
LED Light
-
Product Keywords:
-
Container Paint Booth
-
Keywords:
-
Spary Booth
-
Optional Accessories:
-
Accept

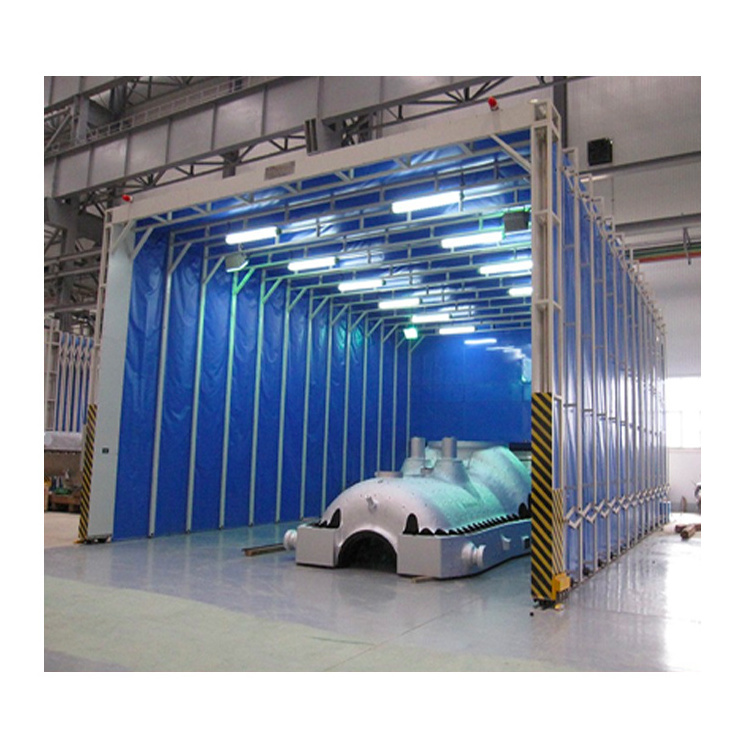

Collapsible / inflatable / retractable mobile spray paint booth for Large parts
Retractable painting booth is a special booth device which can be spread as enclosed or semi-enclosed working room when painting, while it can also be retracted to save footprint when not painting.
For large and heavy work-piece that is difficult to be conveyed, retractable spray booth is a good choice to solve this problem. It can greatly simplify the production process of using cranes to convey large and heavy work-pieces back and forth. Its dimensions can be adjusted according to the work-piece sizes, which helps fully utilize the production site and operation areas.
| Size | 8500*4000*4000mm(L*W*H) |
| Cabin Structure |
Retractable gantry structure,each gantry structure has 2 pieces of mecanum wheels. Fireproof PVC soft curtain on 2 sides,rear side and ceiling of cabin.
With air extraction box at the rear.
Special guide rails on both sides for the retractable steel structureto move,both sides are driven together and they are interiocked,with safety l imit control ar the front and the back. |
| Entrance door |
Electric roller shutter |
| Filtration system | Optional. |
| Exhaust filter | Optional |
| Lighting system | LED lights. |
| Intake system | Nature air intake. |
| Exhaust system |
Optional. |
| Power & motor description | 7.5KW.970rpm,380V,50hz |
| Empty loaded air speed | 0.3m/s |
| Noise | <86db |
| Ductwork | With 5 pieces of straight ducting |
| Control System | Standard |
| Advantages Of Retractable Painting Booth | |
| 1. | Nylon fiber mat,durable,non-deformable,waterproof and anti-corrosion,anti-exposure. |
| 2. | Double-side double motor,equipped with reducer,smooth expansion and contraction. |
| 3. | Interior equipped with water curtain carbinet,effectively purify paint mist. |
| 4. | The use of high-quality square steel pipe expansion joints,strong bearing capacity,structural stability |
| 5. | Size.color can be customized |
| 6. | Explosion-proof lighting system |
| 7. | Voltmeter.push button switch,emergency stop,multiple circuit protection. |
Details of retractable spray booth
Shandong Yahui Mahinery Manufacturing Co.,Ltd
We are specialized in auto garage spray booth,which have more than 10 years experience.Our products are passed CE and CCC certification,with high quality and competitive price.
In addition, we will solve all possible problems during customer installation during the production process. Such as:cabinet installtion, pre-install the door, basement and etc.Help customers save time and effort.
For us, quality of service doesn’t end with the received goods. We We will track the whole process.Choose us we can work together and make your business more profitable.
1.Delivery time:
Within 25 working days after receiving deposit.
2.Package:
We use standard ecport packing in 20GP or 40GP
We will add stretchy film for the whole machine and spare parts for delicate protaction.
3.Guarantee:
The machine is guaranteed for 12 months.
If the machine has something problem in 12 months,you will get sprae part for free.
More than 12 months,you will get the cost price for accessories.
4.Techinical support:
Technical support by phone,email,wecaht,whatsapp and slype,24 hours online.
Engineer available to service macinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery.
You can operate the machine immediately after receiving machine.
If you don't know how to use the machine,we will offer you free training.
And if there is still have any questions,please contact us.
Glad to receive feedback from customer.This is the most direct proof of product quality.
Which will make us more refined and better service in the future.
