Quick Details
-
Roll Ratio(Front/Back):
-
customized
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JUCAI
-
Voltage:
-
As your local need
-
Dimension(L*W*H):
-
1100*680*1300mm
-
Weight (KG):
-
1100 KG
-
Type:
-
Open Mixing Mill
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
roller:
-
hollow smooth roll/drilled smooth roller/hollow grooved roll
-
Nip adjustment:
-
manual / motorized/hydraulic type
-
stock guide:
-
fixed type /manually move/hydraulic move
-
safety device:
-
mechnical safety
-
gearbox:
-
hardened teeth gearbox
-
Weight:
-
1100 kg
-
Power(W):
-
7.5kw
Quick Details
-
Diameter of Roll(mm):
-
160 mm
-
Rotation Speed of Front Roll(rpm):
-
1 - 30 rpm
-
Length of Roll(mm):
-
320 mm
-
Roll Ratio(Front/Back):
-
customized
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JUCAI
-
Voltage:
-
As your local need
-
Dimension(L*W*H):
-
1100*680*1300mm
-
Weight (KG):
-
1100 KG
-
Type:
-
Open Mixing Mill
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
roller:
-
hollow smooth roll/drilled smooth roller/hollow grooved roll
-
Nip adjustment:
-
manual / motorized/hydraulic type
-
stock guide:
-
fixed type /manually move/hydraulic move
-
safety device:
-
mechnical safety
-
gearbox:
-
hardened teeth gearbox
-
Weight:
-
1100 kg
-
Power(W):
-
7.5kw
Machine configuration
1.Driving mode : Left driving and right driving
2.Speed ratio of rollers : 1:1.08, 1:1.17,1:1.27
3.roller type : hollow smooth roller ,drilled smooth roll ,hollow grooved roll
4.Gao adjustment device : Manual type , motorized type ,hydraulic type
5.Stock guide : fixed type,manually moving type,turn over and hydraulic moving type

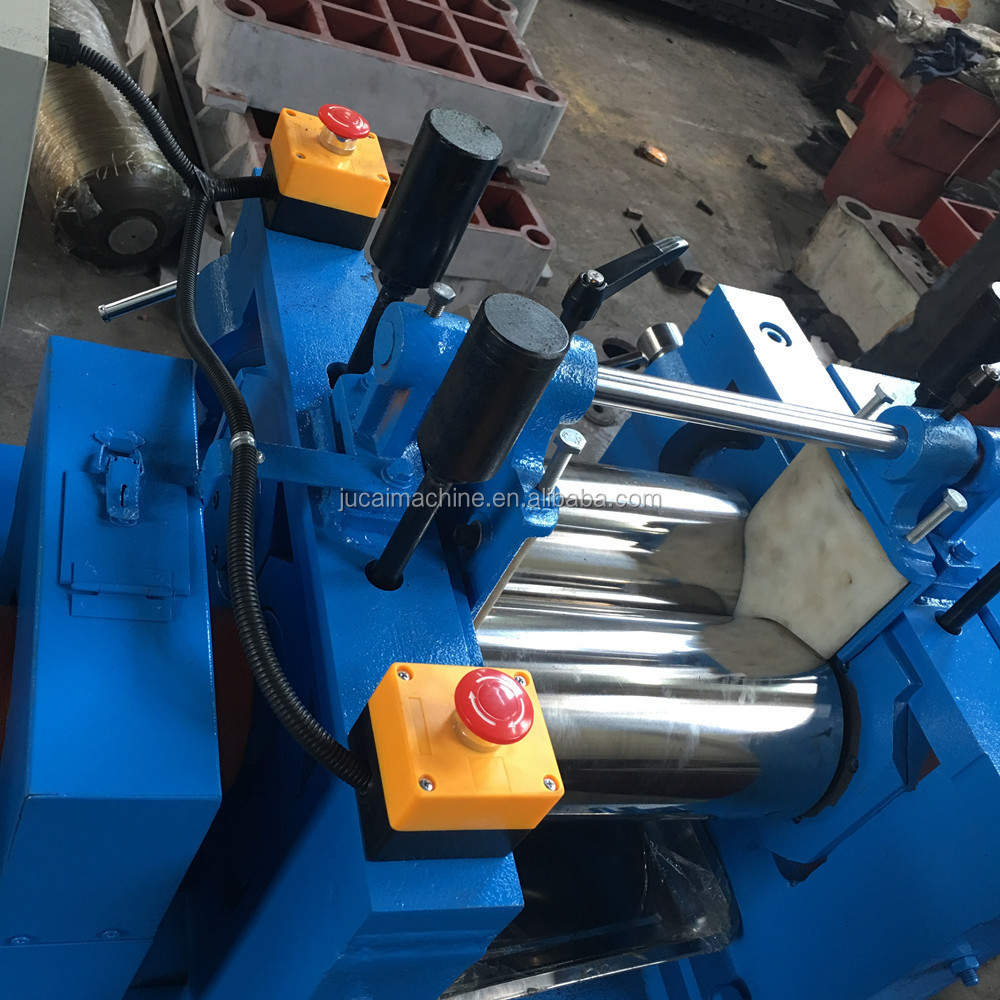

6.Safety device :Mechnical safety protection device ,IR sensor type device
7.emergeny stop device : Emergency stop button ,trip ban rope ,foot switch ,grating and riding blanket
8.Gearbox : Hardened teeth single shaft gearbox, hardened teeth double shaft gearbox
9.Motor : DC motor or AC motor
Product Application

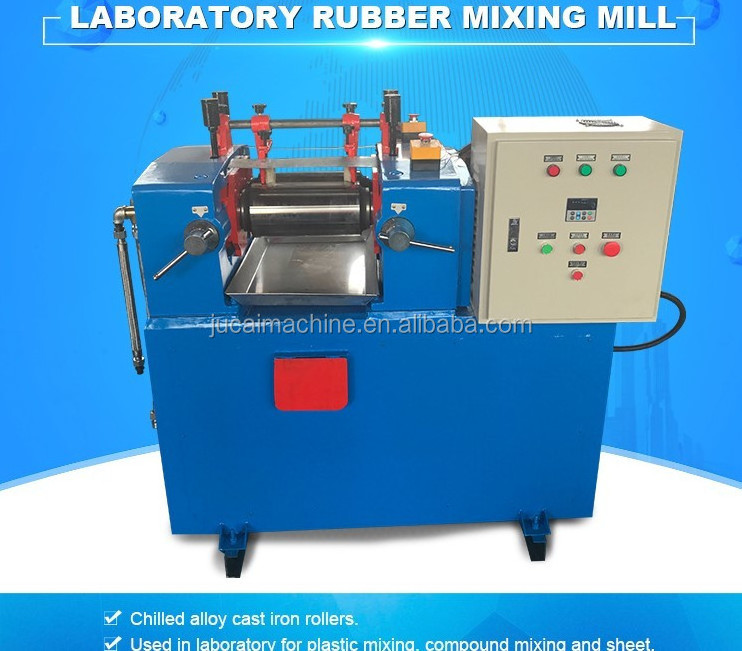

This machine mainly consists of rollers , ZQbull gearbox (except XK-160), electrical cabinet ,nylon bush transmission device , main motor , etc . It is widely used for mixing , warming and sheeting rubber , etc .
Main Features
1.The roller is made of alloy chilled cast iron .Their surfance are hard and wear resistance . Its hardness of surface is HRC68-75
2.The end of rollers are supported by the roller ball bearing bush .It has the advantages of running smoothy ,energy saving , low noise and long life
3.The roll gap adjustment is manual control type . It is simple for operation
4.The machine is equipped with overloading protection device , in order to protect the main parts from being damanged
5.The machine adopts the single drive type transmission structure . It adopts the nylon pin coupling to prevent main parts from being damanged due to the overload of transmission part
6.The base is integral type , the transmission mode is of closed transmission . so it is safe and easy for use
7.The machine is installed with the emergency button and pulling rope as the safety device
8.This machine are installed with four sets lubrication device and suitable for grease lubrication
9.The machine adopts the PLC control cabinet , the machine will be suitable for your local industrial voltage and frequency
|
Model
|
XK-160
|
XK-250
|
XK-360
|
XK-400
|
|
roller diameter
|
160
|
250
|
360
|
400
|
|
roller length
|
320
|
620
|
900mm
|
1000
|
|
front roll linear speed
|
9
|
15.1
|
16.25
|
18.65
|
|
friction ratio
|
1:1.35
|
1:1.1
|
1:1.25
|
1:1.27
|
|
batch capacity
|
1-2
|
10-15
|
20-25
|
18-35
|
|
driving motor
|
5.5
|
18.5
|
30
|
37
|
|
machine size
|
1380*860*1320
|
3400*1350*1500
|
3940*1780*1740
|
4200*1850*1870
|
|
weight
|
1000 kg
|
3500 kg
|
5600
|
7600
|
|
model
|
XK-450
|
XK-550
|
XK-560
|
|
roller diameter
|
450mm
|
550mm
|
560/510mm
|
|
roller working length
|
1200mm
|
1500
|
1500
|
|
front roll linear speed
|
24.5
|
27.94
|
27.87
|
|
frictio ratio of roller
|
1:1.27
|
1:1.22
|
1:1.2
|
|
motor
|
55
|
110
|
90
|
|
Batch capacity
|
25-50
|
50-60
|
50-60
|
|
machine size
|
5200*2380*1770
|
5900*2680*2080
|
6500*2300*2000
|
|
machine weight
|
about 12000 kg
|
27000 kg
|
19500 kg
|
1.we will one year guarantee for the machine . During this period if there is anything wrong with machine , supplier are responsible for it and should offer the best spare part freely for buyer
2.supplier should send professional if required by customer
3.we will offer service for whole life of machine
Qingdao Jiuzhou Jucai Machine Co .,Ltd is one of biggest rubber machine manufacturer in north part of china .
Our company mainly produce semi automatic and automatic type vulcanizing machine , rubber injection molding machine , eva foaming machine , rubber mixing machine , rubber kneader machine , tire recycling machine , etc .
Our machine has been widely exported to USA , UK ,Russian , South Korea , Japanese , India , Poland , Spanish , Mexico and many other areas
Our machine has passed ISO9001:2008 , SGS , BV and CE certificate
Welcome to inquiry and visit factory for cooperation
