1.1-year warranty period.
2.Training how to install the machine, training how to use the machine.
3.Engineers available to service machinery overseas.
4.Reliable quality and thoughtful after sale service.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
BNP32/48
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Nucleic Acid Extraction System BNP32/48
-
Model:
-
BNP48
-
Sample Quantity:
-
48
-
Sample Volume:
-
20-500μL
-
Sample Throughput:
-
48
-
Processing Volume:
-
20μL-1000μL
-
Function:
-
UV disinfection function
-
Feature:
-
fully automatic
-
Magnetic Bead Recovery:
-
>98%
-
Safety Door Design:
-
automatic
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BNP32/48
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Nucleic Acid Extraction System BNP32/48
-
Model:
-
BNP48
-
Sample Quantity:
-
48
-
Sample Volume:
-
20-500μL
-
Sample Throughput:
-
48
-
Processing Volume:
-
20μL-1000μL
-
Function:
-
UV disinfection function
-
Feature:
-
fully automatic
-
Magnetic Bead Recovery:
-
>98%
-
Safety Door Design:
-
automatic
PRODUCT OVERVIEW

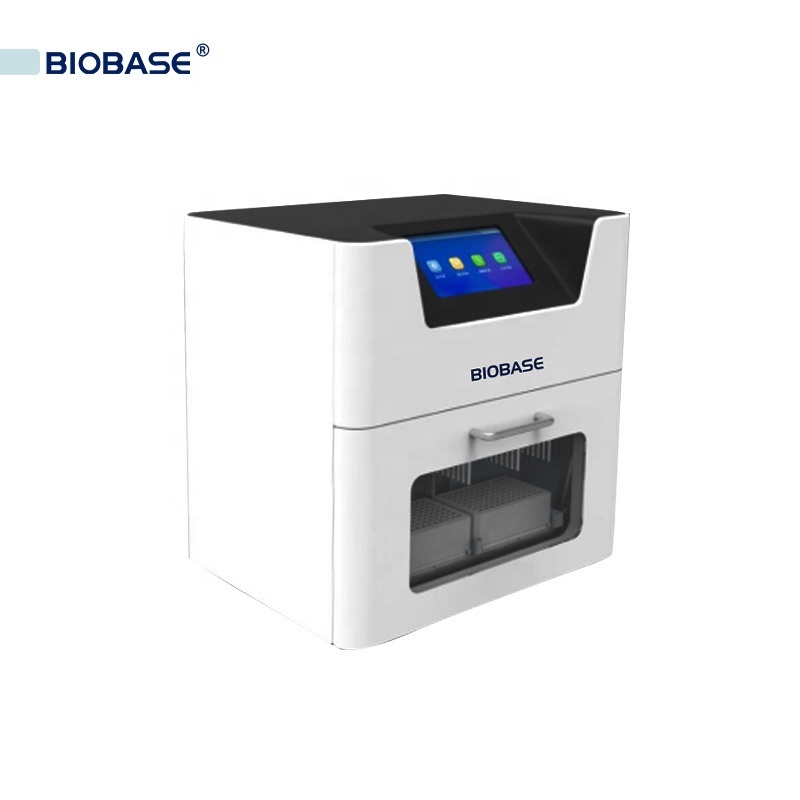

Nucleic Acid Extraction System BNP32/48
Nucleic Acid Extraction System BNP32
Nucleic Acid Extraction System BNP48
PRODUCT SPECIFICATIONS
Detail Display
BNP32:
BNP48:
Features:
* 7-inch touch screen, easy to use, fast response
* User-defined cracking and elution temperature
* UV disinfection function, time range 1min-24hour
* Automatic control system, no need connect to computer
* Free programming to meet the needs of different reagent
* Open system, fully automatic, stable results and good repeatability
* Extract rapidly 15-40 minutes , 32/48 samples can be extracted at the same time
* User-defined cracking and elution temperature
* UV disinfection function, time range 1min-24hour
* Automatic control system, no need connect to computer
* Free programming to meet the needs of different reagent
* Open system, fully automatic, stable results and good repeatability
* Extract rapidly 15-40 minutes , 32/48 samples can be extracted at the same time
PRODUCT PARAMETER
|
Model
|
BNP32
|
BNP48
|
|
|
Sample Quantity
|
32
|
48
|
|
|
Processing Volume
|
20μL-1000μL
|
|
|
|
Sample Volume
|
20-500μL
|
|
|
|
Sample Throughput
|
1-32
|
48
|
|
|
Magnetic Bead Recovery
|
＞98%
|
|
|
|
Extracting the Difference Between Holes
|
CV≤3%
|
|
|
|
Heating Temperature |
8 independent heating modules, customize lysis and elution temperature
(temperature range) according to your needs |
|
|
|
Oscillating Mixing |
Low,medium and high three gears are adjustable, and the fluctuation range
can be adjusted with the reagent volume |
|
|
|
Reagent Type
|
Magnetic bead open platform
|
|
|
|
Extraction Time
|
15-40 min/round (depending on the reagent used)
|
|
|
|
Internal Program
|
Be able to store >100 groups of programs
|
|
|
|
Program Management |
Powerful program editing capabilities to meet different reagent needs.
U disk program import and export can be achieved |
|
|
|
Safety Door Design |
After the safety door is opened,the program operation will be automatically
suspended, and the program can continue to run after the safety door closed |
|
|
|
Built-in Air Duct
|
No
|
Yes
|
|
|
Ultraviolet Irradiation
|
Yes
|
|
|
|
Packing Size(W“D“H)mm
|
580“510“700
|
700’520“750
|
|
|
Gross Weight(kg)
|
51
|
80
|
|
