Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
alarmvip
-
Model Number:
-
VIP-IP2020B
-
Lens:
-
3.6mm
-
Resolution:
-
3MP, 4MP 5MP, 8MP
-
IR Distance:
-
30m
-
Image Sensor:
-
3518E+Sony323
-
Power Supply:
-
12V1A
-
Keyword:
-
webcam ip
-
LED:
-
2PCS
-
Video Format:
-
H.265 Pro
-
Weight:
-
0.6kg
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof
-
Function:
-
Alarm I/O, NIGHT VISION
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
alarmvip
-
Model Number:
-
VIP-IP2020B
-
Lens:
-
3.6mm
-
Resolution:
-
3MP, 4MP 5MP, 8MP
-
IR Distance:
-
30m
-
Image Sensor:
-
3518E+Sony323
-
Power Supply:
-
12V1A
-
Keyword:
-
webcam ip
-
LED:
-
2PCS
-
Video Format:
-
H.265 Pro
-
Weight:
-
0.6kg

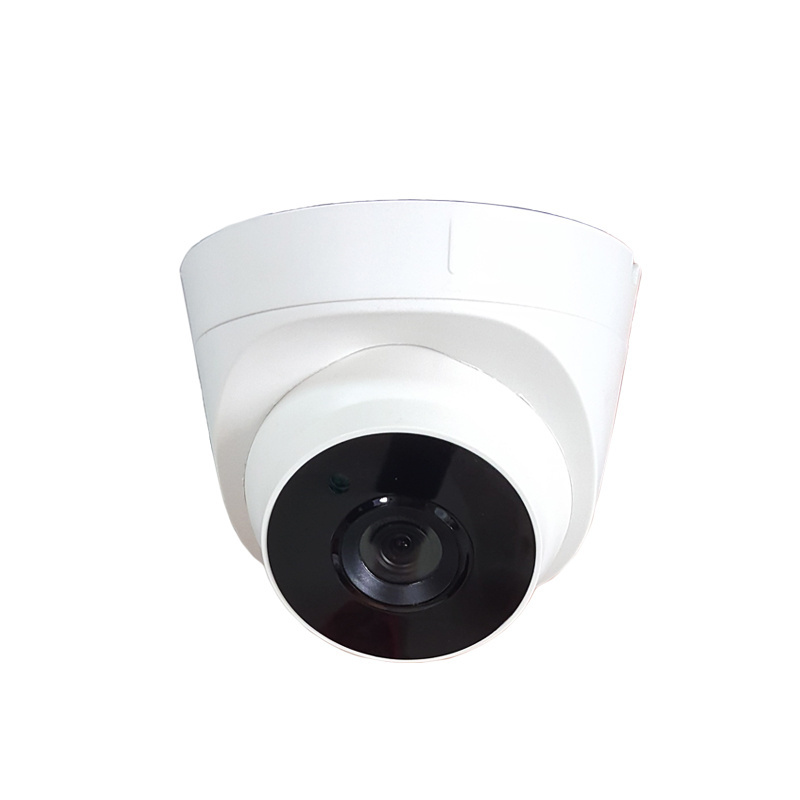

3MP,4MP, 5MP, 8MP IP camera video surveillance waterproof starlight cctv camera
|
1,
3MP(2048x1536@20fps),2MP(1920*1080@25fps) 5MP (2560*1920@20fps, 4MP 2560*1440@25fps) 8MP (3840*2160@20fps) 2,plastic cover IP66,built in POE 3,36pcs LED ,3.6mm lens 2.8MM/6MM/8MM(optional) 4. Support humanoid detection 5. Low power consumption, low bit rate, low latency 6. Support 3D digital noise reduction, support digital WDR 7. Support POE power supply (optional) 8. Support P2P (optional) |
1.3.6mm HD lens, or 2.8mm, real time security with HD video
2.Support P2P cloud, multi platform for real time security and playback, (smartphone,pc, web)
3.Support motion detection,and support to send message to phone and pc client, and email push
4. HD3.0 MP Lens, 3518E+Sony323 solution
5.Adoption of aluminum-copper alloy material assures the excellent preservation,the heat conductivity and the the corrosion resistance
6.IP65 level of waterproof. Waterproof, dustproof, anti interference.
7.2pcs IR LED light with high power provides higher brightness, clearer night vision and longer use lifetime
8.Built-in IR-CUT assures higher color reproduction and better night vision
9.Support ONVIF 2.0 protocol, compatible with NVRs that support ONVIF
10.Support mutilple network protocol, such as RTSP, FTP, PPPOE, NTP, UPnP, etc.
11.Support video storage in PC client and NVR hard drive
12.Device can be added by only one user, more safety, and support to share device to other users according to requirement
13.Dual stream technology, high resolution for local view and smooth control for remote access
| specification | VIP-IP2020B |
| Pixels | 3MP,4MP, 5MP, 8P |
| sensor | 3518E+Sony323 |
| Lens | 3.6mm |
| operating system | Embedded Linux Operating System |
| Video format | PAL/NTSC |
| Video processing | H.264/265 video coding, support dual stream technology |
| Video output | |
| Video Frame rate | adjustable from 1fps-25fps |
| Switch over Day and Night | Bulit-in IR-CUT |
| Infrared night vision | 2pcs IR array LED |
| Illumination | OLUX(IR ON) |
| wide dynamic range | Support |
| denoise | Support 2D/3D denoise |
| Recording saving | NVR/PC |
| Alarm-Events | Push message to PC/phone client and email |
| Motion detection | Support |
| safety protection | Password protection, administrator privilege settings |
| ONVIF protocol | Support ONVIF protocol |
| network protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/uPnP |
| Signal Noise Ratio | ≥48dB |
| Waterproof rating | waterproof up to IP65 level |
| material | aluminum copper |
| IR distance | 20m |
| Space | 24GB(H.264) |
| Languages | support more than 30 languages |
| Phone monitoring | IOS/Android |
| Network Interface | 1 RJ45 10/100m Adaptive Ethernet port |
| buttcock line | waterproof tail with 4 waterproof assemblies |
| Power | DC12V2A(5.5*2.1mm) |
| Power Dissipation | <6W, excluding infrared lights |
| Temperature | -25℃-75℃ |
| Humidity | 10%-90% |
| Dimension | |
| IPQC test report | Numbering | QC-180101226 | |||
| Product number :05-1002-00088 | Product Model No VIP-W602 | Order No : W018101205 | Quantity:3000 pcs | ||
| Test projects | Quality test standard | IPQC test result | Passed ,Yes /No | ||
| Product material | BOM | material and BOM match | ok | Yes | |
| Appearance | side A | no scratch ,no impurities | ok | Yes | |
| side B | no scratch ,no impurities | ok | Yes | ||
| side C | no scratch ,no impurities | ok | Yes | ||
| Lable | same specification as this model | ok | Yes | ||
| Function test | power V*I | same specification as this model | ok | Yes | |
| RJ45 port |
The indicator light is on normally |
ok | Yes | ||
| Internet port | IP /protocol correct | ok | Yes | ||
| light board | The indicator light is on normally | ok | Yes | ||
| image focus | clear | ok | Yes | ||
| MIC /horn | Clear sound without noise | ok | Yes | ||
| image or video effect | night vision image is clear without dark edge,day and night switch normally | ok | Yes | ||
| IR ray test | mobile phone screen shows infrared light in darkroom | ok | Yes | ||
| Rotating | normally rotates correct angel without noise | ok | Yes | ||
| IR cut | normally | ok | Yes | ||
| data storage | The memory card can store and read data information normally. | ok | Yes | ||
| reset | press reset button to default setting | ok | Yes | ||
| software version | same as specification of this model | ok | Yes | ||
| wifi distance | more than 8M,connect app easily,app operation is smooth | ok | Yes | ||
| test total set (product and accessories ) | work normally | ok | Yes | ||
| Packing | Lable | meet request standard | ok | Yes | |
| accessories | meet request of user manual | ok | Yes | ||
| carton mark | Consistent with specification of this model ,quantity | ok | Yes | ||
| appearance of package box | no depression,glue is very tight,Color is consistent with the design | ok | Yes | ||
| Product ID | ID number | write down product ID number ,S/N | 1241969 | Yes | |
| Reliability | pressure test | AC1500V/60S/≤ 10MA; | |||
| Ground resistance test | DC25A/60S/ ≤ 1Ω | ||||
| IPXX | Same as user manual | ||||
| High /low temperature test | -40℃-5℃ 2H test and 10℃-60℃ 2H test | ||||
| age test | 65℃/480H working normally | ||||
| IPQC test final result : Pass √ not pass | |||||
| IPQC signature | Xiangdong Wu | ||||
1.OEM/ODM service :
Alarmvip company has 10 years OEM ODM service ,including silk print logo or laser print on device ,make customized color box ,put logo for app and so on
2.Solo agent of alarmvip
Exclusive agency for customers who have achieved sales targets.And provides extra Additional preferential offers.
3.Main distributor
Provides special price for customers who sales big quantity each year.
