Quick Details
-
Warranty:
-
25years
-
Brand Name:
-
SANGSolar
-
Model Number:
-
HJT-455-475W, HJT-455-475W
-
Place of Origin:
-
Beijing, China
-
Panel Dimensions:
-
1960*1096*30mm
-
Numher pf Cells:
-
90Cells
-
Dimensions:
-
1960*1096*30mm
-
Weight:
-
26.1kg
-
Junction Box:
-
IP68 Rated
-
Solar panel:
-
455-475W
-
Certificate:
-
CE TUV
-
OEM Order:
-
Acceptable OEM
-
Max. Power:
-
475w
-
Packing:
-
34pcs/Pallet
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.1%
-
Warranty:
-
25years
-
Brand Name:
-
SANGSolar
-
Model Number:
-
HJT-455-475W, HJT-455-475W
-
Place of Origin:
-
Beijing, China
-
Panel Dimensions:
-
1960*1096*30mm
-
Numher pf Cells:
-
90Cells
-
Dimensions:
-
1960*1096*30mm
-
Weight:
-
26.1kg
-
Junction Box:
-
IP68 Rated
-
Solar panel:
-
455-475W
-
Certificate:
-
CE TUV
-
OEM Order:
-
Acceptable OEM
-
Max. Power:
-
475w
-
Packing:
-
34pcs/Pallet

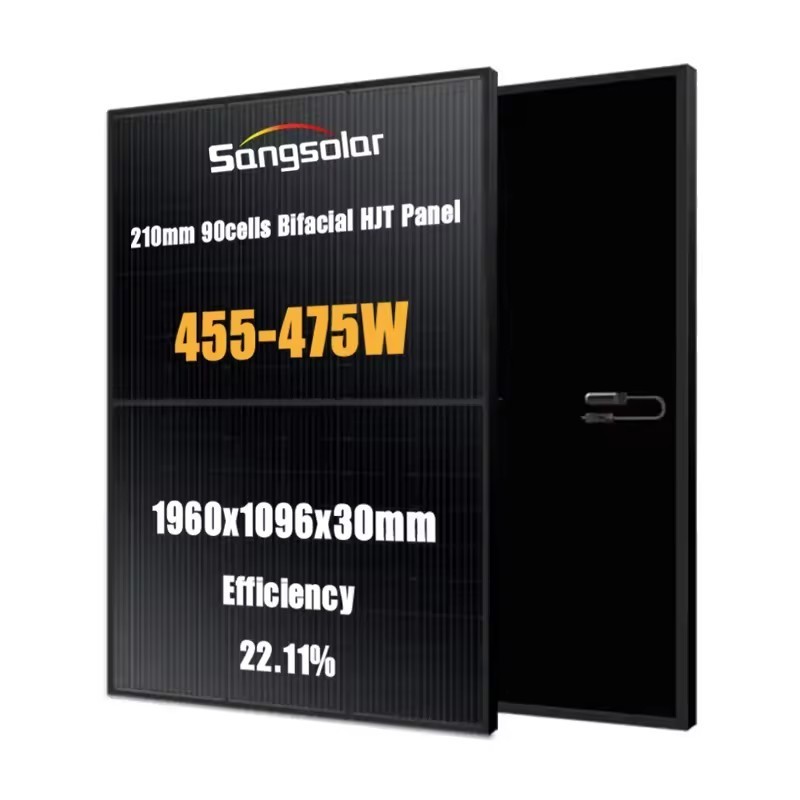

Technical Specification
210mm 90cells
HJT Bifacial Dual Glass
455-475W
|
Model/QWBDN90-
|
455W
|
460W
|
465W
|
470W
|
475W
|
|||||
|
Testing Condition : STCMaximum Power ( Pmax / W )
|
455
|
460
|
465
|
470
|
475
|
|||||
|
Operating Voltage ( vmpp /V )
|
28.38
|
28.64
|
28.89
|
29.15
|
29.40
|
|||||
|
Operating Current ( Impp / A )
|
16.03
|
16.06
|
16.09
|
16.12
|
16.15
|
|||||
|
Open-circuit Voltage ( Voc / V)
|
33.48
|
33.68
|
33.88
|
34.08
|
34.28
|
|||||
|
Short-circuit Current ( Isc / A )
|
17.02
|
17.07
|
17.12
|
17.17
|
17.22
|
|||||
|
Module Efficiency ( % )
|
21.18
|
21.41
|
21.65
|
21.88
|
22.11
|
|||||
|
Power Output Tolerance
|
0-+5
|
|
|
|
|
|||||
|
APPLICATION CONDITIONS
|
|
|
|
|
|
|||||
|
Maximun System Voltage
|
DC1500V
|
|
|
|
|
|||||
|
Operating Temperature
|
-40℃- + 85℃
|
|
|
|
|
|||||
|
Maxim un Series Fuse
|
25A
|
|
|
|
|
|||||
|
Safety Protection Class
|
Class II
|
|
|
|
|
|||||
|
Mechanical Load
|
Front side 5400pa， Back side 2400pa
|
|
|
|
|
|||||
|
Refer . Bifaciality Factor
|
85%+ 5%
|
|
|
|
|
|||||
|
MECHANICAL CHARACTERISTICS
|
|
|
|
|
|
|||||
|
Solar Cell
|
HJT 210 x 105mm
|
|
|
|
|
|||||
|
No of Cells
|
90 ( 2 x45 )
|
|
|
|
|
|||||
|
Module Dimensions
|
1960X1096X30mm(7717X43.15X1.18 inches)
|
|
|
|
|
|||||
|
Weight
|
26.1kg
|
|
|
|
|
|||||
|
Front Glass
|
2 . 0mm AR Coating Semi-tempered Glass
|
|
|
|
|
|||||
|
Back Glass
|
1 . 6mm Heat Strengthened Glass
|
|
|
|
|
|||||
|
Junction Box
|
IP68 , 3 Bypass Diodes
|
|
|
|
|
|||||
|
Output Cables
|
4mm , 300mm ( + ) / 300mm (or Customized Length
|
|
|
|
|
|||||
|
Connectors
|
MC4
|
|
|
|
|
|||||
