$Easy movable hydraulic oil filtration machine flushing fraction impurities/ portable oil purifier$

Easy movable hydraulic oil filtration machine flushing fraction impurities/ portable oil purifier

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V 50HZ 3P (Customizable)

Power:: 14~97kw

Dimension(L*W*H):: as per model

Weight:: 400 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Gas content:: 0.1%

Demulsification value:: no more than 15 min

Degree of cleanlin:: 16384 NAS

Impurity size:: no more than 1 μm

Temperature range:: 20~80℃

Vacuum pressure:: ≤0.4Mpa

Power supply:: 380V 50HZ 3Phase(customizable)

Application:: oil water separator

Normal working hour:: ≥4000 Hours

Quick Details

Flow:: 10~300L/min

Place of Origin:: Chongqing, China

Brand Name:: TOP Oil Purifier

Voltage:: 380V 50HZ 3P (Customizable)

Power:: 14~97kw

Dimension(L*W*H):: as per model

Weight:: 400 kg

After-sales Service Provided:: Engineers available to service machinery overseas

Gas content:: 0.1%

Demulsification value:: no more than 15 min

Degree of cleanlin:: 16384 NAS

Impurity size:: no more than 1 μm

Temperature range:: 20~80℃

Vacuum pressure:: ≤0.4Mpa

Power supply:: 380V 50HZ 3Phase(customizable)

Application:: oil water separator

Normal working hour:: ≥4000 Hours

Overview

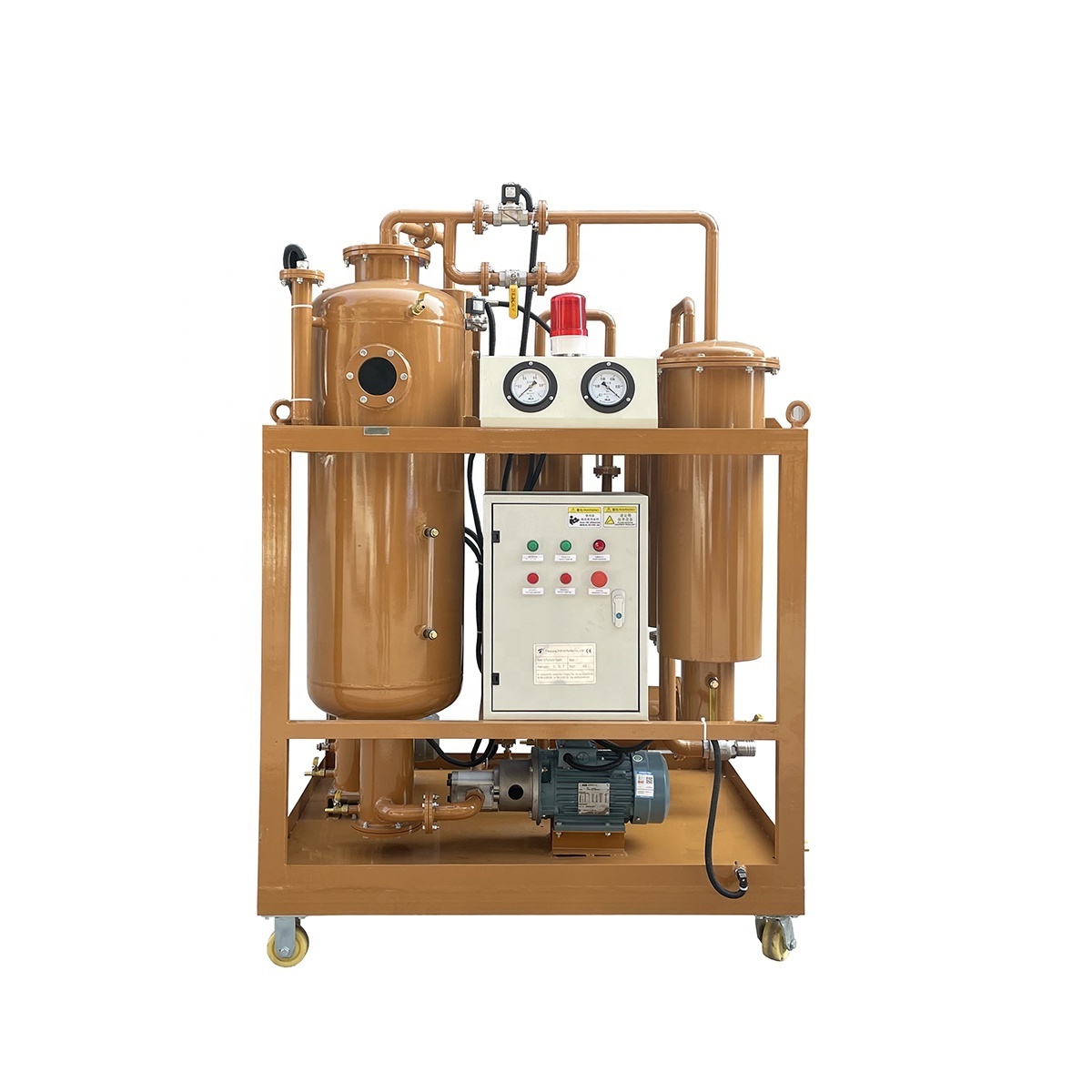

Easy movable hydraulic oil filtration machine flushing fraction impurities/ portable oil purifier

Introduction:

This Easy movable hydraulic oil filtration machine flushing fraction impurities/ portable oil purifier applies to on-line processing of the turbine oil of the steam engine, gas turbine and water turbine in the field of electricity, chemicals, paper making, metallurgical industries. It can not only ensure the regular work of adjusting system and lubricating system, but also purify low viscosity oil and coolant oil.

With triple stage filters oil water separator, mainly used for turbine turbine oil processing, can quickly and efficiently remove oil in the water, gas, impurities. So that the oil quality indicators meet the new oil standards to ensure that the unit regulation, lubrication system to work properly, to extend the maintenance cycle unit. Using the advanced international principles of strengthening the hydrophilic and hydrophobic, dehydration, precision filter in one, online demulsification, dehydration, acid removal, impurity removal, the turbidity of the turbidity emulsified turbine oil becomes crystal clear. It is suitable for the deep dewatering of transparent oil, hydraulic oil, refrigerating machine oil and other lubricants that need to remove a lot of water and finely filter the impurities.

Features:

1.Integrates advantages of gravity method, gasification method, coalescence separation method, vacuum separation, mechanical filtration into one. With the technology of vacuum drying and demulsification, it can separate a large mount of water from the oil, even the micro quantity of moisture. It is good at dewatering and demulsifying, which can make the turbid emulsified oil become clear.

2.Equipped with vacuum analytical evaporation system which can remove the micro quantity of water from the oil and ensure the water content index in the oil. It won't change the physical and chemical property of the oil, and it can extend the oil service life.

3.Low working noise meets the environmental protection requirement.

4.Precise multi-stage filters can effectively remove all kinds of mechanical impurities, preciser one by one, big impurity holding capacity and long service life.

5.Advanced infrared liquid level auto control system, automatic sound and light alarm system, and pressure protection device to ensure the safe and stable operation of machine.

6.Can online process turbine oil and low viscosity lubricants with unattended operation.

Technical data

Item	Unit	TY-10	TY-20	TY-30	TY-50	TY-100	TY-150	TY-200	TY-300
FLow rate	L/min	10	20	30	50	100	150	200	300
Vacuum degree	MPa	-0.06~–0.095
Working pressure	Mpa	≤ 0.4
Temperature degree	℃	20 ~80
Power supply		380V/50HZ/3Ph 5 wire( as customer's requirement )
Working noise	db(A)	≤ 65~80
Working time	h	≥ 4000
Continuous working time	h	150
Electric heating degree	kw	12	15	18	24	45	60	72	84
Total electric power	kw	14	17	20	27	48	66	81	97
Outlet(inlet)caliber	mm	Φ25	Φ25	Φ25	Φ32	Φ42	Φ50	Φ50	Φ60
Weight	kg	400	450	500	600	800	1000	1100	1550
Size	L	1550	1550	1600	1650	1700	1750	1900	2000
		W	800	850	900	950	1000	1200	1300	1350
		H	1600	1650	1700	1750	1800	1800	2000	2100

Index after filtering

Index after filtering	Moisture content(PPM)	≤50
		Gas content(%)	0.1
		Demulsification value(min)	≤15
		Degree of cleanliness(NAS 1638)	4
	Impurity size(μm)	≤1( Customerizable )

Our Company

Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.

We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.

TOP Oil Purifiers uses single or multi-stage filtration to remove, particulate, free water, and small quantities of dissolved water if necessary. The systems are usually customized to suite the specific customer application. Oil "regeneration", "reclamation", "recycling" are all terms used to describe the process of restoring used, aged, contaminated oils to "like new" reusable condition. The reclamation process removes free water, most dissolved water, dissolved gas, particulate, carbon contamination, acids, oxidation by products, most color bodies, wear metals, and most additive chemicals.

TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.

CE ISO CCPIT Certificates
