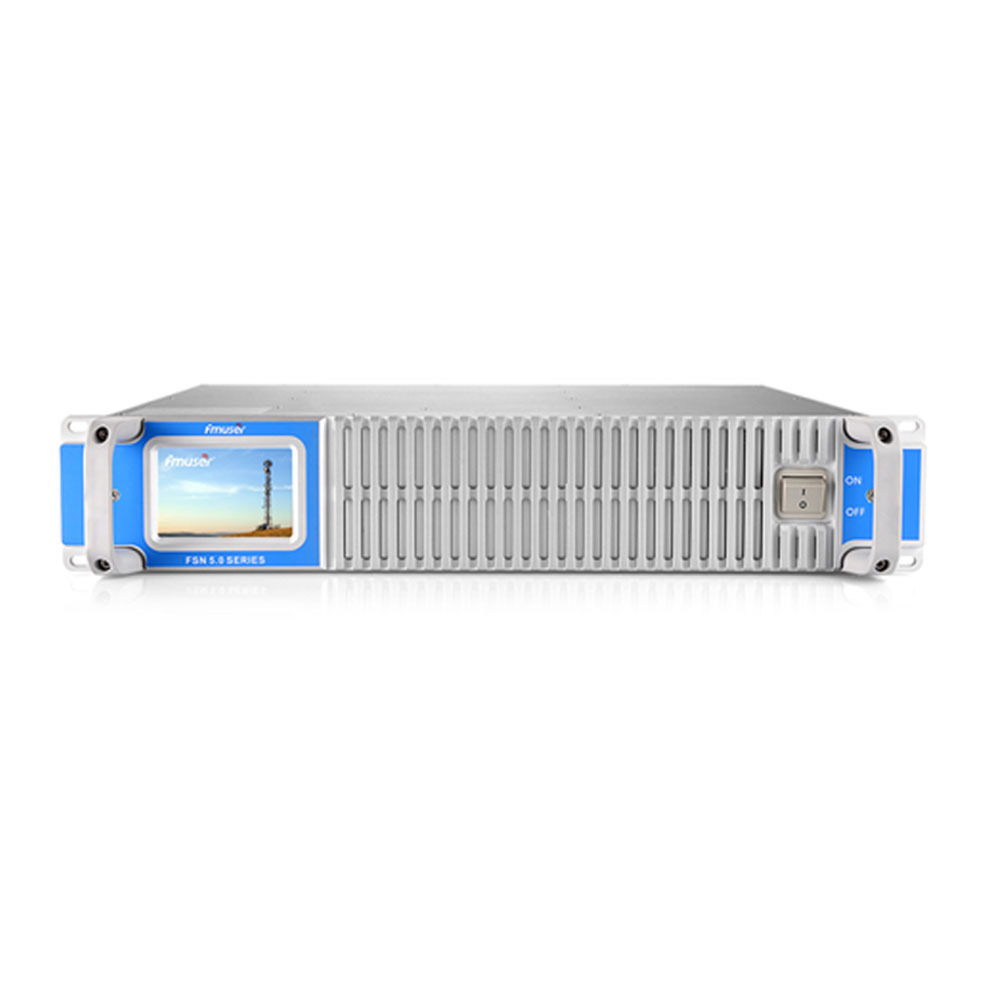

FMUSER 1000W 1000Watt 1KW FM Broadcast Transmitter Long Range For Radio Stations for Church, Community

FMUSER 1000W 1000Watt 1KW FM Broadcast Transmitter Long Range For Radio Stations for Church, Community

FOB Reference Price: Get Latest Price

≥1 Sets

US $3169

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output:: 1000W

Frequency Range:: 87-108MHz

Application:: Radio Station

Frequency stabilization method:: PLL frequency synthesizer

RF output impedance:: 50Ω

Power supply voltage range:: 110V ~ 260V

Dimensions:: 483 x 320 x 88 mm without handles and protrusions, 19 "2U standard

Weight:: 18kg

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: fmuser

Model Number:: FSN-1000W

Output:: 1000W

Frequency Range:: 87-108MHz

Application:: Radio Station

Frequency stabilization method:: PLL frequency synthesizer

RF output impedance:: 50Ω

Power supply voltage range:: 110V ~ 260V

Dimensions:: 483 x 320 x 88 mm without handles and protrusions, 19 "2U standard

Weight:: 18kg

Product Description

Feature:

FMUSER V5.0 1kw FM transmitter features by its human-friendly touch screen operation interface, highly stable and reliable performance and near CD quality stereo sound effect, which make it a remarkable improvement in the whole market, and leads to its high popularity in using for the most of radio stations. This 1kw FM transmitter is designed in a compact 19 inch 2U chassis by integrating all modules inside, small in size and easy in operation and maintenance. It adopts the most advanced RF transistor of BL188 OR MRFE6VP61K25H, which ensures a high working efficiency of 72%, the power loss is reduced to the minimum value ever. The DSP(Digital Sound Processing) technology makes FMUSER V3.0 1000w FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions. As quality assurance, FMUSER Provides 5 YEAR warranty for this V3.0 professional broadcast transmitter, you’ll have no worries to use it for the radio station.

TECHNICAL SPECIFICATION:

RF Part: Frequency: 87.5-108MHz, Frequency step value: 10KHz Modulation: FM, peak deviation ± 75KHz Frequency stability: <± 100Hz Frequency stabilization method: PLL frequency synthesizer RF output power: 0~1000 watts ± 0.5dB Residual wave: <- 70dB Higher harmonics: <- 65dB Parasitic AM: <- 50dB RF output impedance: 50Ω RF output connector: L29 female Audio Part: Audio input connector: XLR female AUX input connector: BNC female Pre-emphasis: 0us, 50us, 75us (user setting) S / N ratio mono:> 70 dB (20 to 20KHz) S / N ratio stereo:> 65 dB (20 to 15KHz) Stereo resolution: -50dB Audio frequency response: 30 ~ 15000Hz Audio distortion: <0.3% Audio level gain: -12dB ~ 12dB step 3dB Audio input: -19dB ~ 5dB General Features: Power supply voltage range: 110V ~ 260V Operating temperature range: -10 to 45 ℃ Work mode: continuous work Cooling method: air cooling Cooling efficiency: <95% Work Altitude: <4500M Power consumption: 1500VA Dimensions: 483 x 320 x 88 mm without handles and protrusions, 19 "2U standard rack. Weight: 15Kg

Related Products

Our Company

The fmuser company is specialized in production and sales of FM / TV Transmitter , FM / TV antenna , the FM / TV transmitter accessories. We have been exporting FM /TV transmitter for 6 years. We have clients all over the world, not only the resellers but also the consumers. With 6 years experience in this field ,we have professional team and excellent aftersales service. We dedicated in supplying the best quality products with competive prices and excellent customer sevice! If you have any question about it , No matter you buy or not, please feel free to tell us your questions,we are very willing to help you and solve your problems.

FAQ

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter :100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~15KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter : 30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
