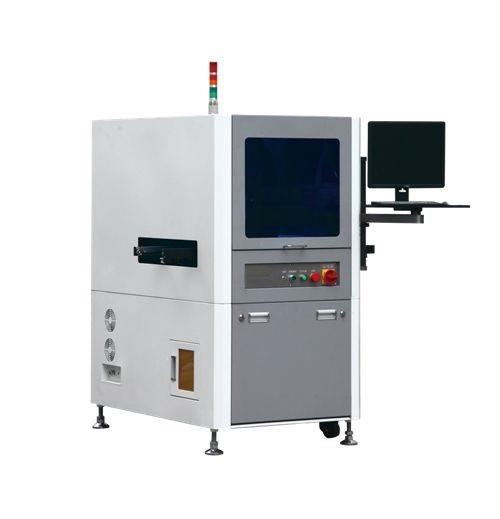

The ETA dispensing system has significant strength in cost performance. Being reliable, durable, and concisely designed, it can be applied to PCB and base materials of different specifications. The UFD operating software ensures the stability and reliability of the system. The system is designed for chip sealing, PCB assembly, SMT red glue dispensing,led lens,and medical products. With adjustable track width, it can be
applied to more products. axxon has established wide support and service network to provide complete process solution for the
development, manufacturing and product innovation of the customers.
- Product Details
- {{item.text}}
Quick Details
-
Applicable Industries:
-
Electronic
-
Dispensing Range:
-
X400*Y400*Z50mm
-
Product Weight:
-
Max.4.5kg
-
Product Thickness:
-
Max.6mm
-
Maximum Speed:
-
2000mm/s
-
Vision Methodology:
-
CCD
-
Injection Valve Speed:
-
200 points/s
-
Product Changeover:
-
<10Mins
-
Weight:
-
650 Kg
-
Dimension:
-
W770*D1200*H1500mm
-
Dispensing Accuracy:
-
±0.02mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ETA
-
Weight (KG):
-
1500
-
Applicable Industries:
-
Electronic
-
Dispensing Range:
-
X400*Y400*Z50mm
-
Product Weight:
-
Max.4.5kg
-
Product Thickness:
-
Max.6mm
-
Maximum Speed:
-
2000mm/s
-
Vision Methodology:
-
CCD
-
Injection Valve Speed:
-
200 points/s
-
Product Changeover:
-
<10Mins
-
Weight:
-
650 Kg
-
Dimension:
-
W770*D1200*H1500mm
-
Dispensing Accuracy:
-
±0.02mm
Product Description
Introduce:
------
Features
------
• High cost performance;
• Non-contact jet valve to realize smaller dispensing diameter and wider application area
•Jet valve can improve the reliability and uniformity of dispensing, and improve the output and material utilization rate;
• Minimum width of excessive glue can be controlled in 0.2mm(related to the configuration and glue);
• Chip edge identification is much more accurate than mark-point identification.
• ID identification, automatic program calling, fool-proofing and data statistics function helps to realize smart manufacturing.
Platform System
Integral frame, marble platform supporting moving parts, moving parts using imported accessories, to ensure high accuracy and stability of equipment operation.
Dispensing System
Needle dispensing and spray valve dispensing can be selected. Spray valve dispensing can be fixed and rotary. CCD camera, laser altimeter and glue sensor can be selected.
Calibration System
Calibration Platform Standards: 0.1mg
Electronic Scale, Scale, Ceramic Plate,
Mechanical Height Detection, Vacuum
Cleaning, Gluing Cup
• Underfill • Led lens
• Pin encapsulation • Conformal coating
• Edge/corner bonding • Surface mounted package
• Package on package (POP) • Dam & fill
• Red glue dispensing • FPC reinforcement
Certifications
Packing & Delivery
Shipping Way:
※ By air, for sample and small package,international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ By air, for sample and small package,international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ 35 Days.
Our Company
ETA is the leading manufacturer for smt machines and solution with 24 years' experience in China.
And we are aslo the only Chinese SMT supplier for Huawei factory in China.
Successful Experience:
Eta's customer in 35 countries around the world
※
We have been helping customers to build a lot of new factories around the world.
※
Training more than 500 experts and technician for customers.
※
Became the most reliable Chinese partner for you.
