Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wainlux
-
Dimension(L*W*H):
-
58*53*15.4cm
-
Weight (KG):
-
7 KG
-
Motion accuracy:
-
0.01mm
-
Wavelength:
-
450-460nm
-
Voltage input:
-
100-240V
-
Function 1:
-
APP control laser engraving machine
-
Function 2:
-
Laser engraver compatible with rotary/raiser pad/air pump
-
Function 3:
-
laser cutting engraving machine
-
Function 4:
-
cnc laser engraver for stainless steel/plated metal/acrylic/plastic
-
Function 5:
-
Portable laser engraving machine
-
Function 6:
-
laser engraver 80w
-
Function 7:
-
Machinery Woodworking Tools
Quick Details
-
Engraving Area:
-
350*320mm
-
Laser Type:
-
Diode
-
Engraving Speed:
-
up to 10000mm/Min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wainlux
-
Dimension(L*W*H):
-
58*53*15.4cm
-
Weight (KG):
-
7 KG
-
Motion accuracy:
-
0.01mm
-
Wavelength:
-
450-460nm
-
Voltage input:
-
100-240V
-
Function 1:
-
APP control laser engraving machine
-
Function 2:
-
Laser engraver compatible with rotary/raiser pad/air pump
-
Function 3:
-
laser cutting engraving machine
-
Function 4:
-
cnc laser engraver for stainless steel/plated metal/acrylic/plastic
-
Function 5:
-
Portable laser engraving machine
-
Function 6:
-
laser engraver 80w
-
Function 7:
-
Machinery Woodworking Tools
Specification
|
Model Name
|
WAINLUX L6
|
|
Brand Name
|
Wainlux
|
|
Warranty
|
1 Year
|
|
Certification
|
CE FCC RoHS ICE certification
|
|
Packing size
|
58*23.5*19cm
|
|
Packing weight
|
7KG
|
Specification
Model number: L6
Laser electric power: 80W
Laser output power: 10W
Laser spot: 0.08*0.05mm
Motion accuracy : 0.01mm
Wavelength: 450-460nm
Routing speed: up to 10000mm/Min
Working area: 350*320mm/12.59''x13.77''
Voltage input: 100-240V
Connection way: Type-C Cable/Bluetooth/Offline
Opeartion system: Windows/Mac OS/Android/iOS
Control software: Lightburn/LaserJRBL/WAINLUX self-developed software(native)
Software language supported: English, German, Spanish, Italian, French, Korean, Japanese
Focusing way: fixed focus
Material:High-strength aluminum (prototype oxidation) + ABS
Net weight: 5.05KG
Package weight: 7KG
Product size: 58*53*15.4cm
Package size: 58*23.5*19cm
Engraving objects for example: kraft paper/wood board/cardboard/Bamboo/plastic/fabric/leather/dark acrylic/PVC/MDF/stone/dark
glass/ceramic/stainless steel/painted metal etc
Cutting objects for example: cardboard/leather/ plastic/acrylic/wood/kraft paper/PVC/MDF etc
File format supported: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc
Certification: UKCA/FCC/CE/FDA
Highlights

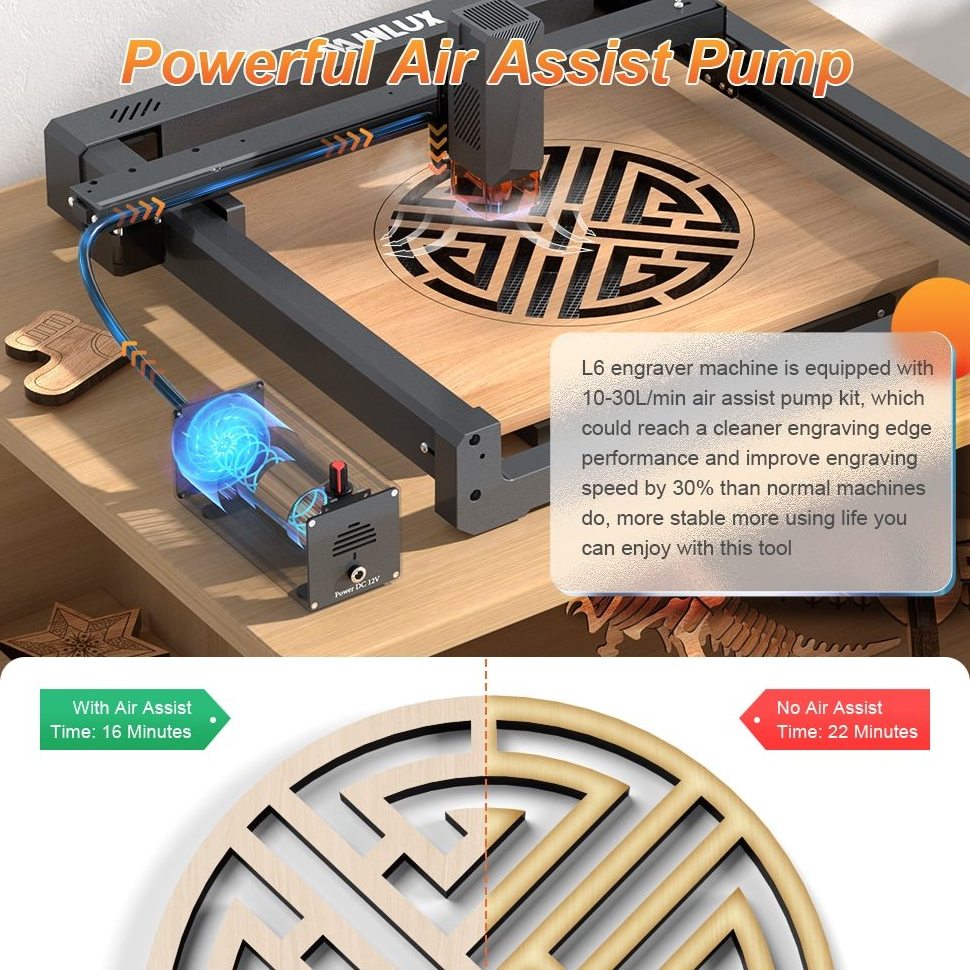

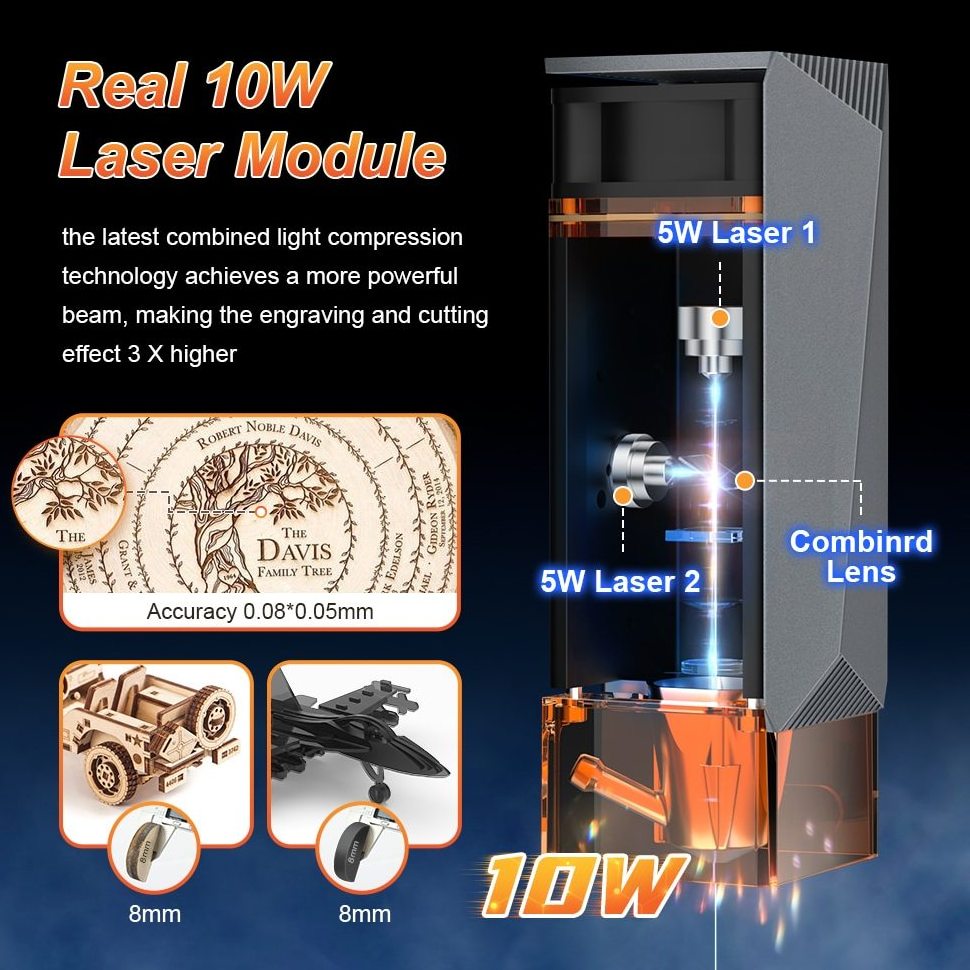

Real 10W Laser Head + Super Air Pump Auxiliary Device : L6 adopts the latest Dual-compression diode technology, By combining 2 5W
lasers which can achieve real 10W laser output, furthermore, it is equipped with a super strong air pump auxiliary, which can
easily cut off 8 mm pine board and 8 mm black acrylic in only one pass, And keep the cutting surface intact and clean, greatly
reduce the black edge and yellowing phenomenon, make your engraving products more flawless, Easily engrave hundreds of different
objects, even stainless steel, comparable to industrial-grade engraving machines
Higher Accuracy : WAINLUX L6 laser cutter adopts a 0.08mm*0.05mm ultra-fine compression spot, achieving detailed and vivid
engraving images, besides, the motion accuracy can even reach to 0.01 mm, which can easily achieve 1:1 engrave your photo pattern
Sturdy Structure : The design of all-steel guide rails and closed synchronous belts improves stability several times compared to
the ordinary bare belt + nylon pulley structure on the market. Working area of 320*350mm/12.59''x13.77'' combined with rotating
accessories and elevating modules, curved surfaces, and large-scale paintings can be perfectly processed, even with high-speed
moving.
Widely compatible : Through internal firmware optimization, L6 can directly use market-mature software like Lightburn and
LaserJRBL, compared with JL3 model, which needs complex reflash step to use open source programs, L6 for professional engravers or
those who need to achieve richer and more diverse engraving requirements, Means their operation steps are simplified, and the
operation difficulty and time cost are reduced, just plug and play; of course, if you are beginner, this machine also supports the
ourself-developed native program, which is easy to use and for free in whole life
Modular Design（pre-assembled） : The modular design and the accompanying assembly instruction video make it easy for even a novice
to complete the assembly within 8 minutes. Thanks to the independent distinction of each part, we can easily do replacement and
upgrade
APP control : except for Type-C connection to your computer, it also equipped with a dual Bluetooth 5.0 mode, the displacement of
the laser module can be controlled more intelligently, faster, and more accurately through your cell phone, shoot and sculpt.
Warranty : why choose us? As long as you buy a laser engraving machine from WAINLUX manufacturer, we all provide 2 years of
warranty service and technical support, our after-sales team will reply to you within 24 hours(except weekends and holiday)
Model number: L6
Laser electric power: 80W
Laser output power: 10W
Laser spot: 0.08*0.05mm
Motion accuracy : 0.01mm
Wavelength: 450-460nm
Routing speed: up to 10000mm/Min
Working area: 350*320mm/12.59''x13.77''
Voltage input: 100-240V
Connection way: Type-C Cable/Bluetooth/Offline
Opeartion system: Windows/Mac OS/Android/iOS
Control software: Lightburn/LaserJRBL/WAINLUX self-developed software(native)
Software language supported: English, German, Spanish, Italian, French, Korean, Japanese
Focusing way: fixed focus
Material:High-strength aluminum (prototype oxidation) + ABS
Net weight: 5.05KG
Package weight: 7KG
Product size: 58*53*15.4cm
Package size: 58*23.5*19cm
Engraving objects for example: kraft paper/wood board/cardboard/Bamboo/plastic/fabric/leather/dark acrylic/PVC/MDF/stone/dark
glass/ceramic/stainless steel/painted metal etc
Cutting objects for example: cardboard/leather/ plastic/acrylic/wood/kraft paper/PVC/MDF etc
File format supported: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc
Certification: UKCA/FCC/CE/FDA
Highlights
Real 10W Laser Head + Super Air Pump Auxiliary Device : L6 adopts the latest Dual-compression diode technology, By combining 2 5W
lasers which can achieve real 10W laser output, furthermore, it is equipped with a super strong air pump auxiliary, which can
easily cut off 8 mm pine board and 8 mm black acrylic in only one pass, And keep the cutting surface intact and clean, greatly
reduce the black edge and yellowing phenomenon, make your engraving products more flawless, Easily engrave hundreds of different
objects, even stainless steel, comparable to industrial-grade engraving machines
Higher Accuracy : WAINLUX L6 laser cutter adopts a 0.08mm*0.05mm ultra-fine compression spot, achieving detailed and vivid
engraving images, besides, the motion accuracy can even reach to 0.01 mm, which can easily achieve 1:1 engrave your photo pattern
Sturdy Structure : The design of all-steel guide rails and closed synchronous belts improves stability several times compared to
the ordinary bare belt + nylon pulley structure on the market. Working area of 320*350mm/12.59''x13.77'' combined with rotating
accessories and elevating modules, curved surfaces, and large-scale paintings can be perfectly processed, even with high-speed
moving.
Widely compatible : Through internal firmware optimization, L6 can directly use market-mature software like Lightburn and
LaserJRBL, compared with JL3 model, which needs complex reflash step to use open source programs, L6 for professional engravers or
those who need to achieve richer and more diverse engraving requirements, Means their operation steps are simplified, and the
operation difficulty and time cost are reduced, just plug and play; of course, if you are beginner, this machine also supports the
ourself-developed native program, which is easy to use and for free in whole life
Modular Design（pre-assembled） : The modular design and the accompanying assembly instruction video make it easy for even a novice
to complete the assembly within 8 minutes. Thanks to the independent distinction of each part, we can easily do replacement and
upgrade
APP control : except for Type-C connection to your computer, it also equipped with a dual Bluetooth 5.0 mode, the displacement of
the laser module can be controlled more intelligently, faster, and more accurately through your cell phone, shoot and sculpt.
Warranty : why choose us? As long as you buy a laser engraving machine from WAINLUX manufacturer, we all provide 2 years of
warranty service and technical support, our after-sales team will reply to you within 24 hours(except weekends and holiday)
