Quick Details
-
Size:
-
11960mm*3000mm*3300mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-

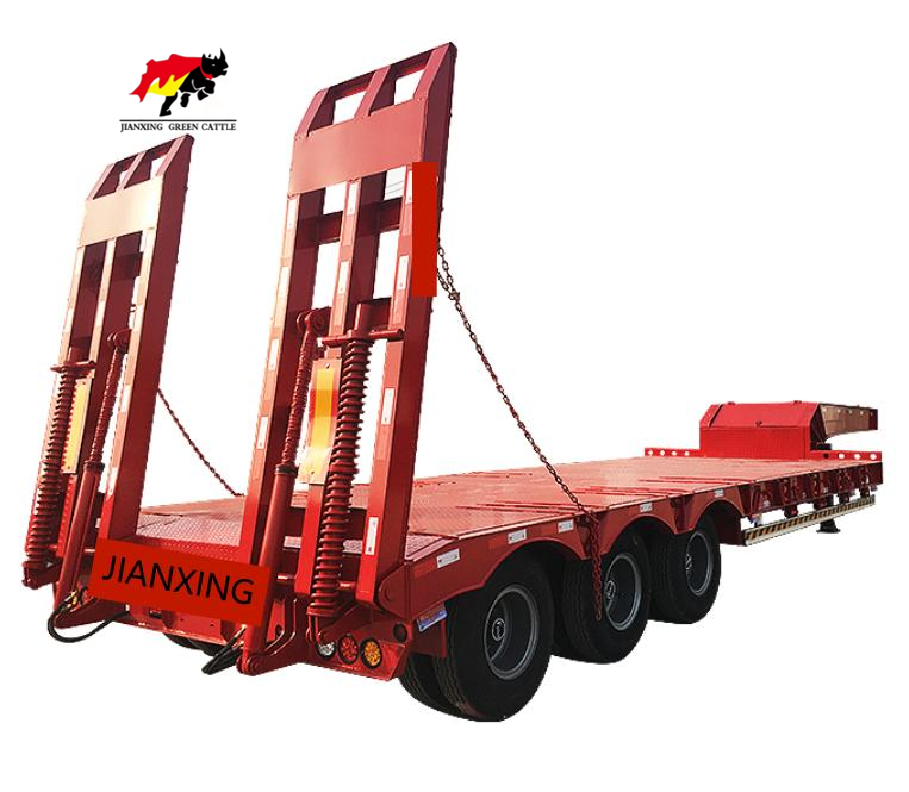

lowbed semi trailer
-
Suspension:
-
Tri-axle 8-pcs leaf spring suspension with equalizer beam
-
Tires:
-
311.00-20, 11.00R20,12.00-20,12.00R20 12units
-
Axles:
-
AQ,FUWA, BPW or STEYR axle, 13T capacity
-
King Pin:
-
Size: 50# (2'') or 90#(3.5''); Type: welded or assembled
-
Landing Gear:
-
Single side operation or double side operation, Static capacity 30Ton
-
Flatbed Floor:
-
Checkered sheet, thickness 4mm
-
Rear Ladders:
-
Spring power-assisted
-
Wiring:
-
24V, 6 lines
-
Paint:
-
Sand blasting before painting, color upon request
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60T
-
Brand Name:
-
JIANXING
-
Size:
-
11960mm*3000mm*3300mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
lowbed semi trailer
-
Suspension:
-
Tri-axle 8-pcs leaf spring suspension with equalizer beam
-
Tires:
-
311.00-20, 11.00R20,12.00-20,12.00R20 12units
-
Axles:
-
AQ,FUWA, BPW or STEYR axle, 13T capacity
-
King Pin:
-
Size: 50# (2'') or 90#(3.5''); Type: welded or assembled
-
Landing Gear:
-
Single side operation or double side operation, Static capacity 30Ton
-
Flatbed Floor:
-
Checkered sheet, thickness 4mm
-
Rear Ladders:
-
Spring power-assisted
-
Wiring:
-
24V, 6 lines
-
Paint:
-
Sand blasting before painting, color upon request
Why Choose Us
Products Description
|
General
|
|
|
|
|||
|
Overall Dimension
|
11960mm*3000mm*3300mm
|
|
|
|||
|
Flatbed Dimension
|
8000mm*3000mm
|
|
|
|||
|
Tare Weight
|
9630kg
|
Pay Load
|
40ton
|
|||
|
King Pin Setting
|
450mm
|
Rear Overhang
|
1870mm
|
|||
|
Wheel base
|
7650mm+1305mm+1305mm
|
Loading Surface Height
|
1320mm
|
|||
|
Track
|
2160mm
|
|
|
|||
|
Running Gear
|
|
|
|
|||
|
Suspension
|
Tri-axle 8-pcs leaf spring suspension with equalizer beam
|
|
|
|||
|
Tires
|
311.00-20, 11.00R20,12.00-20,12.00R20 12units
|
|
|
|||
|
Axles
|
AQ，FUWA, BPW or STEYR axle, 13T capacity
|
|
|
|||
|
Brakes
|
Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
|
|
|
|||
|
Under Frame
|
|
|
|
|||
|
Main Beam
|
I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
|
|
|
|||
|
Cross Beam
|
Mild Alloy Q235, 16# channel beam
|
|
|
|||
|
King Pin
|
Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
|
|
|
|||
|
Landing Gear
|
Single side operation or double side operation, Static capacity 30Ton
|
|
|
|||
|
Flatbed Floor
|
Checkered sheet, thickness 4mm
|
|
|
|||
|
Rear Ladders
|
Spring power-assisted
|
|
|
|||
|
Electrical & Paint
|
|
|
|
|||
|
Lights & Reflectors
|
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
|
|
|
|||
|
Wiring
|
24V, 6 lines
|
|
|
|||
|
Air/Elec. Connector
|
ISO standard air connector, 24V 7 pin plug socket
|
|
|
|||
|
Paint
|
Sand blasting before painting, color upon request
|
|
|
|||
PRODUCT DETAILS
Low flatbed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, road pavers, cranes, etc.) ) and other heavy loads, the lower the center of gravity, the better the stability and safety, and the greater the ability to transport super high loads and pass overhead obstacles.
Product advantages
frame pallet
2. The main plane of the frame and platform is low, which ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.
company advantage
We are Jianxing Green Cattle International Co. Ltd, a professional manufacturer of semi-trailers.
After nearly 20 years of development, our factory has become a combination of industry and trade of foreign trade companies. The factory covers an area of 140 acres, plant area of more than 90 acres, more than 300 employees.
There are more than 40 types of products.The company has the production of full trailer, semi trailer professional equipment and advanced processing technology, selection of high-quality raw materials and parts. From cutting pieces to welding to packaging, there are special teams responsible for. all kinds of trailer novel shape, unique design, reasonable structure, durable.
Our products have passed the China Quality Certification Center "CCC" certification and ISO9001: 2000 quality management system certification. And we also have BV certification, SGS certification, CE certification, etc.
Products are exported to Southeast Asia, Central Asia, the Middle East, Africa and other parts of the world. We are currently the largest exporter of semi-trailers in the Vietnamese market with a market share of over 55%.
Welcome customers from all over the world to visit and cooperate.
FACTORY CONDITION
Quality control
In the streamlined production process, there is a corresponding quality control at the end of each process, and there is still quality control at the end of the finished product. Layer-by-layer inspection ensures that our product quality is strong and reliable.
All accessories are world famous brand or independent products of Jianxing factory, quality is guaranteed.
Advanced CNC laser cutting technology and welding technology
Smooth and flat welding technology
Automatic welding construction of submerged arc welding, strengthening of key parts, targeted welding, avoiding some parts prone to welding leakage, to ensure that vehicles work for a long time without maintenance.
Spray paint shop
Environmentally friendly spray painting equipment, clean and odor-free, protects our workers, and takes corporate social responsibility at the same time
Good spray paint surface after sandblasting treatment, so that the steel surface and paint tightly combined.
Baking paint, increase the adhesion of paint surface, ensure the paint surface quality of the product
Send us message
1.Advantages of low bed semi-trailer
* carrying heavy cargo.When transporting heavy cargo, you can transport super high cargo.
* mainly used for medium and long-distance transportation.
* load capacity ranges from 60to 100 tons based on client requirements
* beam can be flat type or Gooseneck type
* carrying heavy cargo.When transporting heavy cargo, you can transport super high cargo.
* mainly used for medium and long-distance transportation.
* load capacity ranges from 60to 100 tons based on client requirements
* beam can be flat type or Gooseneck type
2.Why choose us
* factory direct, no middle man, no agency fees, therefore low price for high quality only from us.
* directly manufactured from our own factory,can be customized for various needs
* cutting edge automation equipment adopted in the factory, improved quality from traditional production methods
* steel welded by automatic submerged arc process, connection spots look flawless, more solid and durable compared with traditional manual ways.
* cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process
* factory direct, no middle man, no agency fees, therefore low price for high quality only from us.
* directly manufactured from our own factory,can be customized for various needs
* cutting edge automation equipment adopted in the factory, improved quality from traditional production methods
* steel welded by automatic submerged arc process, connection spots look flawless, more solid and durable compared with traditional manual ways.
* cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process
3.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
