Quick Details
-
Weight:
-
5200 KG
-
Marketing Type:
-
Hot-sale Product 2022
-
Drilling Diameter:
-
140-254mm
-
Drilling Depth:
-
Max.180m
-
One-Time Advance Length:
-
3.3 m
-
Walking Speed:
-
2.5 km/h
-
Climbing Angle:
-
30 degree
-
Equipped Capacitor:
-
60 kw
-
Using Air Pressure:
-
1.7-2.5 MPa
-
Air Consumption:
-
17-31 m3/min
-
Rig Lifting Force:
-
12 T
-
Swing Torque:
-
3200-4600 N*m
-
Equipped with Hammer:
-
Medium and High Wind Pressure Series
-
Engine Brand:
-
Yuchai Engine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Feida
-
Dimension(L*W*H):
-
4000*1630*2250
-
Weight:
-
5200 KG
-
Marketing Type:
-
Hot-sale Product 2022
-
Drilling Diameter:
-
140-254mm
-
Drilling Depth:
-
Max.180m
-
One-Time Advance Length:
-
3.3 m
-
Walking Speed:
-
2.5 km/h
-
Climbing Angle:
-
30 degree
-
Equipped Capacitor:
-
60 kw
-
Using Air Pressure:
-
1.7-2.5 MPa
-
Air Consumption:
-
17-31 m3/min
-
Rig Lifting Force:
-
12 T
-
Swing Torque:
-
3200-4600 N*m
-
Equipped with Hammer:
-
Medium and High Wind Pressure Series
-
Engine Brand:
-
Yuchai Engine
Products Description

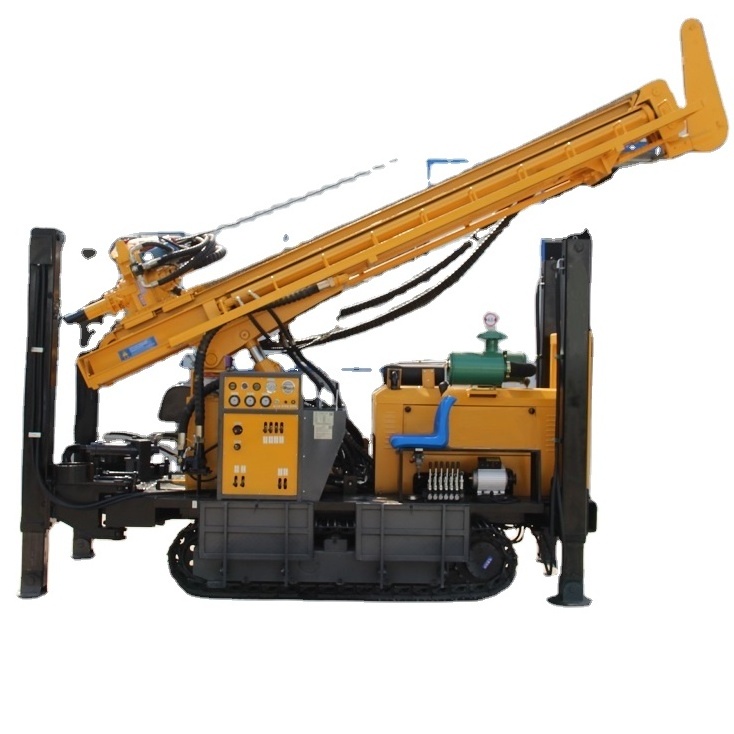

KW Series multi-function type geothermal well drilling machine is a lightweight, high efficiency, multifunctional drilling rig. KW drilling machines have the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling wells, agricultural irrigation, air hole and other use of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering. The drill rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with high torque and big diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.
Product Paramenters
|
Model
|
KW180
|
|
Drilling depth
|
180m
|
|
Diameter of hole
|
φ140-254mm
|
|
Advance Length one time
|
3m
|
|
Working pressure
|
1.7-2.5MPa
|
|
Air consumption
|
15-27m³/min
|
|
Length of rod
|
1.5m,2m,3m
|
|
Dia. Of rod
|
φ76, φ89,φ102
|
|
Lifting power
|
12 T
|
|
Rotation torque
|
3200-4600N.m
|
|
Rotation Speed
|
45-65r/min
|
|
Diesel Engine
|
Quanchai
|
|
Engine Power
|
55Kw/2200rpm
|
|
Travelling speed
|
0-2.5 Km/h
|
|
Climb capacity
|
30°
|
|
Weight
|
4500kgs
|
|
Dimension
|
3800x1500x2200mm
|
|
Application
|
Complicated geological conditions: Rock, Mud, Sand etc.
|
|
Drilling Way
|
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
|
|
Dth Hammer
|
4",5",6",8" Drill hammer or CIR110, 130, 150,170
|
|
Drilling depth
|
200m
|
|
Dia.hole
|
φ140-204 mm
|
|
Advance Length one time
|
3.3m
|
|
Working pressure
|
1.7-3.0MPa
|
|
Air consumption
|
17-30m³/min
|
|
Length of rod
|
1.5m,2m,3m
|
|
Dia. Of rod
|
φ76, φ89,φ102
|
|
Lifting power
|
13T
|
|
Rotation torque
|
3300-4700N.m
|
|
Rotation Speed
|
45-70r/min
|
|
Diesel Engine
|
Quanchai
|
|
Engine Power
|
65Kw/2200rpm
|
|
Travelling speed
|
0-2.5 Km/h
|
|
Climb capacity
|
30°
|
|
Weight
|
5000kgs
|
|
Dimension
|
3950x1700x2300mm
|
|
Application
|
Complicated geological conditions: Rock, Mud, Sand etc.
|
|
Drilling Way
|
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
|
|
Dth Hammer
|
4",5",6",8" Drill hammer or CIR110, 130, 150,170
|
Contact Us For latest price More Details！
|
Drilling depth
|
280m
|
|
Dia.hole
|
φ140-305mm
|
|
Advance Length one time
|
6.6m
|
|
Working pressure
|
1.7-3.0MPa
|
|
Air consumption
|
17-30m³/min
|
|
Length of rod
|
1.5m,2m,3m, 6m
|
|
Dia. Of rod
|
φ76, φ89
|
|
Lifting power
|
17T
|
|
Rotation torque
|
3700-5000N.m
|
|
Rotation Speed
|
55-70-130r/min
|
|
Diesel Engine
|
Yuchai
|
|
Engine Power
|
70Kw / 2200 rpm
|
|
Travelling speed
|
0-2.5 Km/h
|
|
Climb capacity
|
30°
|
|
Weight
|
7500kgs
|
|
Dimension
|
5900x1750x2450mm
|
|
Application
|
Complicated geological conditions: Rock, Mud, Sand etc.
|
|
Drilling Way
|
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
|
|
Dth Hammer
|
4",5",6",8" Drill hammer or CIR110, 130, 150
|
|
Drilling depth
|
300m
|
|
|
Dia.hole
|
φ140-325mm
|
|
|
Advance Length one time
|
3.3 m
|
|
|
Working pressure
|
1.7-3.3MPa
|
|
|
Air consumption
|
17-35mm³/min
|
|
|
Length of rod
|
1.5m,2m,3m
|
|
|
Dia. Of rod
|
φ76, φ89,φ102
|
|
|
Lifting power
|
18T
|
|
|
Rotation torque
|
5700-75000N.m
|
|
|
Rotation Speed
|
40-70 rpm
|
|
|
Diesel Engine
|
Yuchai
|
|
|
Engine Power
|
85Kw/2200rpm
|
|
|
Travelling speed
|
0-2.5 Km/h
|
|
|
Climb capacity
|
30°
|
|
|
Weight
|
7000kgs
|
|
|
Dimension
|
4100x1950x2600mm
|
|
|
Application
|
Complicated geological conditions: Rock, Mud, Sand etc.
|
|
|
Drilling Way
|
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Driling
|
|
|
DTH Hammer
|
4",5",6",8",10" Drill hammer or CIR110, 130, 150,170
|
|
|
Remark: It is installed with steel track , winch, electric welding machine.
|
|
|
|
Model
|
KW350
|
|
|
Drilling depth
|
350m
|
|
|
Dia.hole
|
φ140-325mm
|
|
|
Advance Length one time
|
6.6m
|
|
|
Working pressure
|
1.7-3.3MPa
|
|
|
Air consumption
|
17-35m³/min
|
|
|
Length of rod
|
1.5m,2m,3m, 6m
|
|
|
Dia. Of rod
|
φ89,φ102,φ114
|
|
|
Lifting power
|
24T
|
|
|
Rotation torque
|
6200-85000N.m
|
|
|
Rotation Speed
|
55-115r/min
|
|
|
Diesel Engine
|
Yuchai
|
|
|
Engine Power
|
92Kw/2200rpm
|
|
|
Travelling speed
|
0-2.5 Km/h
|
|
|
Climb capacity
|
30°
|
|
|
Weight
|
9000kgs
|
|
|
Dimension
|
5900x2000x2850mm
|
|
|
Application
|
Complicated geological conditions: Rock, Mud, Sand etc.
|
|
|
Drilling Way
|
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Driling
|
|
|
DTH Hammer
|
4",5",6",8",10" Drill hammer or CIR110, 130, 150,170
|
|
|
Remark: It is installed with steel track , winch, electric welding machine.
|
|
|
|
Drilling depth
|
400m
|
|
Dia.hole
|
φ140-350mm
|
|
Advance Length one time
|
6.6m
|
|
Working pressure
|
1.7-3.5MPa
|
|
Air consumption
|
17-35m³/min
|
|
Length of rod
|
1.5m,2m,3m, (6m can be choosed)
|
|
Dia. Of rod
|
φ89,φ102,φ114
|
|
Lifting power
|
25T
|
|
Rotation torque
|
6500-9000N.m
|
|
Rotation Speed
|
45-115r/min
|
|
Diesel Engine
|
Yuchai
|
|
Engine Power
|
92Kw/2200rpm
|
|
Travelling speed
|
0-2.5 Km/h
|
|
Climb capacity
|
30°
|
|
Weight
|
10000kgs
|
|
Dimension
|
5900x2100x2850mm
|
|
Application
|
Complicated geological conditions: Rock, Mud, Sand etc.
|
|
Drilling Way
|
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
|
|
DTH Hammer
|
4",5",6",8",10" Drill hammer or CIR110, 130, 150,170
|
|
Drilling depth
|
600m
|
|
Dia.hole
|
φ140-350mm
|
|
Advance Length one time
|
6.6m
|
|
Working pressure
|
1.7-3.5MPa
|
|
Air consumption
|
17-42m³/min
|
|
Length of rod
|
1.5m,2m,3m,6m
|
|
Dia. Of rod
|
φ76, φ89,φ102,φ114
|
|
Lifting power
|
30T
|
|
Rotation torque
|
8500-11000N.m
|
|
Rotation Speed
|
45-115r/min
|
|
Diesel Engine
|
Cummins Brand
|
|
Engine Power
|
6BTA5.9-C180-II, 132Kw/2200rpm
|
|
Travelling speed
|
0-2.5 Km/h
|
|
Climb capacity
|
30°
|
|
Weight
|
12000kgs
|
|
Dimension
|
6000x2200x2950mm
|
|
Application
|
Complicated geological conditions: Rock, Mud, Sand etc.
|
|
Drilling Way
|
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
|
|
Dth Hammer
|
4",5",6",8",10" Drill hammer or CIR110, 130, 150,170
|
Application
Works with air compressor
Works with mud pump
