Quick Details
-
Model Number:
-
WDSS
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
PU Foam Wheel
-
Application:
-
Industry
-
Usage:
-
Wide Usage
-
Feature:
-
High Wear Resistance
-
Description:
-
Power Steering
-
Certification:
-
ISO9001
-
Advantage:
-
Long Working Life
-
Structure:
-
Speed Adjustable
Quick Details
-
Width:
-
Other
-
Material:
-
POLYURETHANE, Rubber, Cast Iron
-
Type:
-
Tread-on-Core Wheels
-
Model Number:
-
WDSS
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
PU Foam Wheel
-
Application:
-
Industry
-
Usage:
-
Wide Usage
-
Feature:
-
High Wear Resistance
-
Description:
-
Power Steering
-
Certification:
-
ISO9001
-
Advantage:
-
Long Working Life
-
Structure:
-
Speed Adjustable

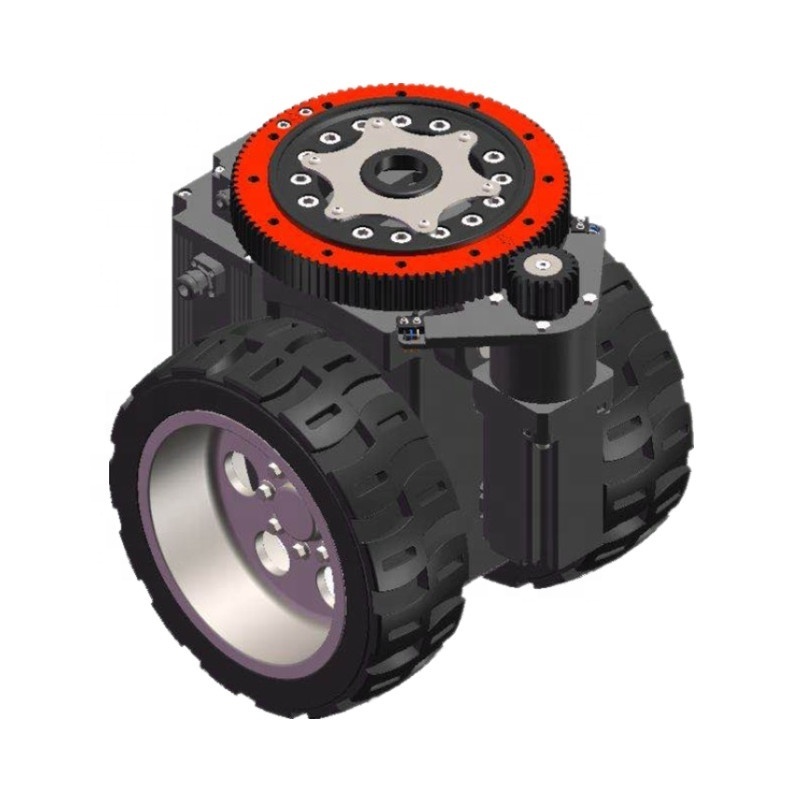

Hot Sale High Torque 48v 400W Power Battery Origin Warranty Mini Wheel Loader For Sale
| Traction motor parameters | Motor Power | Motor Voltage | Motor speed | Motor current | Rated torque | IP Grade | Encoder | ||
| Type | DC | W | V | RPM | A | Nm | IP | Magnetic braiding | Resolution ratio |
| Servo Motor | 1200 | 48 | 3000 | 31.6 | 3.8 | 65 | Increment | 1024 | |
| Traction reducer parameters | Type | X | Planetary reducer | Steering motor parameters | Type | DC | Servo Motor | ||
| Reducer speed ratio | i | 24 | 42 | Motor Power | W | 750 | |||
| Reducer torque | Nm | 250 | 900 | Motor Voltage | V | 48 | |||
| Polyurethane bearing | Kg | 1600 | Motor speed | RPM | 3000 | ||||
| Rubber bearing | Kg | 1500 | Motor current | A | 19 | ||||
| Braking torque | Nm | 68.4 | 119.7 | Reducer speed ratio | i | 35+(100:20) | |||
| Actuators torque | Nm | 3 | 3 | Reducer torque | Nm | 105 | |||
| Actuators Volatage | V | DC24 | DC24 | IP Grade | IP | 65 | |||
| Maximum speed | M/min | 90.3 | 51.6 | Encoder | Magnetic braiding | Increment | |||
| Traction | N | 753 | 1249 | Resolution ratio | 1024 | ||||
| Traction weight | reference | 1130 | 1874 | Left and right limit | IO | Always on, always off | |||
| Max steering Angle | ± | 140° | |||||||
| Another | Reducer lubrication | lubricant | (-20°~200°) | ||||||
| Dead-weight | Kg | About 33 | |||||||
