Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AMD
-
Model Number:
-
XP-2067-S
-
Torque:
-
13.56
-
Product Name:
-
DC motor
-
Model:
-
XP-2067-S
-
Application:
-
Golf carts
-
Voltage:
-
48V
-
Power:
-
3.8KW
-
warranty:
-
1year
-
Certification:
-
ce
Quick Details
-
Speed(RPM):
-
2800rpm
-
Continuous Current(A):
-
10A
-
Efficiency:
-
1E1
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AMD
-
Model Number:
-
XP-2067-S
-
Torque:
-
13.56
-
Product Name:
-
DC motor
-
Model:
-
XP-2067-S
-
Application:
-
Golf carts
-
Voltage:
-
48V
-
Power:
-
3.8KW
-
warranty:
-
1year
-
Certification:
-
ce
Specification

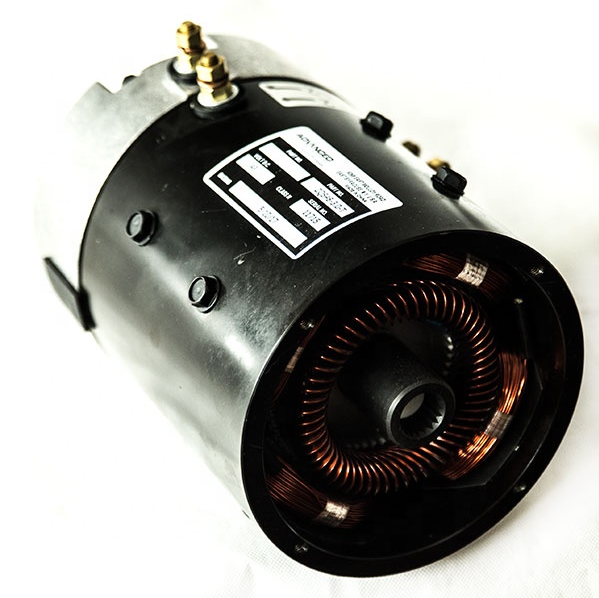

LVTONG golf cart traction motor
Specifications:
* Nominal power rate: 3.7 kW
* Operating voltage: 48V
* Rated speed: 2500 rpm
* Field current: 10A
* Armature current: 105A
* Speed sensor mating connector is included (different type connector is possible, for example an AMP waterproof 3-Pin connector)
* Insulation: class H
* Dimensions (L×Ø): 231.60 × 154.99 mm
* Package weight: 28.9 kg
* Package environmental rating: IP20
Notice: this SepEx motor XP-2067-S is the product of AMD (made by Chinese manufacturer KDS), applied in multiple electric vehicle
models of CLUB CAR (part number: 102775101), and other electric cart makers.
Notice: XP-2067-S can work with CURTIS 1266A-5201 SepEx controller and CURTIS 1268-5403 SepEx controller. We can also provide the
controller assemblage of 1268-5403.
For more application details (spline, transmission, etc.), please contact us ...
Specifications:
* Nominal power rate: 3.7 kW
* Operating voltage: 48V
* Rated speed: 2500 rpm
* Field current: 10A
* Armature current: 105A
* Speed sensor mating connector is included (different type connector is possible, for example an AMP waterproof 3-Pin connector)
* Insulation: class H
* Dimensions (L×Ø): 231.60 × 154.99 mm
* Package weight: 28.9 kg
* Package environmental rating: IP20
Notice: this SepEx motor XP-2067-S is the product of AMD (made by Chinese manufacturer KDS), applied in multiple electric vehicle
models of CLUB CAR (part number: 102775101), and other electric cart makers.
Notice: XP-2067-S can work with CURTIS 1266A-5201 SepEx controller and CURTIS 1268-5403 SepEx controller. We can also provide the
controller assemblage of 1268-5403.
For more application details (spline, transmission, etc.), please contact us ...
