Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CAIVI--PPR pipe machine
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
30m*1m*2m
-
Power (kW):
-
80
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
control:
-
easy to operate
-
Screw Dia.:
-
50-65mm
-
Qty.of Extruder:
-
3
-
Pipe Size:
-
20-110mm
-
Capacity:
-
100-300kg/h
-
Total Power:
-
110-190Kw
-
Length of Machine:
-
30-38m
-
machine:
-
glassfiber PPR pipe machine
-
certification:
-
CE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw Speed (rpm):
-
120 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CAIVI--PPR pipe machine
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
30m*1m*2m
-
Power (kW):
-
80
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
control:
-
easy to operate
-
Screw Dia.:
-
50-65mm
-
Qty.of Extruder:
-
3
-
Pipe Size:
-
20-110mm
-
Capacity:
-
100-300kg/h
-
Total Power:
-
110-190Kw
-
Length of Machine:
-
30-38m
-
machine:
-
glassfiber PPR pipe machine
-
certification:
-
CE
glass fiber PPR tube machine / fiberglass PPR pipe making extruder manufacturer
Description of glassfiber PPR pipe machine:
1. Equipped ith polyolefin purposed single-screw extruder; it has the characters of quick extruding, high efficiency and so on.
2. The specially designed co-extrusion die head is reasonable in flow channel, smooth in both internal and external walls, and small in internal stress.
3. Pipe diameter is among 20-160mm and production speed reaches to 18m/min.
4.One unit serves several purposes. It can produce common PP-R, Nanometer anti-bacteria pipe, PE-RT and PE-X.
5. If added one co-extrusion engine and die on original base, it can produce PP-R fiberglass reinforced composite pip
Process Flow of glassfiber PPR pipe machine:
Raw material +master batches → mixing→vacuum feeding → material dryness → single screw extruder → single screw extruder → single screw extruder → color string extruder → spiral co-extrusion mould → calibrator → spray vacuum calibration tank → spray cooling water tank → spray-code printer → belt haul-off → no-dust cutter → pipe rack→finished product inspecting &packing
Technical parameters of glassfiber PPR pipe machine:
|
Model |
Screw diameter |
L/D |
Extruder |
Pipe range |
Capacity (kg/h) |
Power(km) |
Total power |
Line length |
|
FP-PPR-63A |
50mm |
33:1 |
4 |
20-63 |
100-200 |
22*3 |
120 |
30 |
|
FR-PPR-63B |
65mm ,50mm |
33:1 |
3 |
20-63 |
100-180 |
37*1,22*1 |
110 |
30 |
|
PR-PPR-110A |
65mm |
33:1 |
4 |
20-110 |
180-300 |
37*3 |
190 |
38 |
|
FR-PPR-110B |
75mm,65mm |
33:1 |
3 |
20-110 |
150-200 |
55*1,37*1 |
180 |
38 |

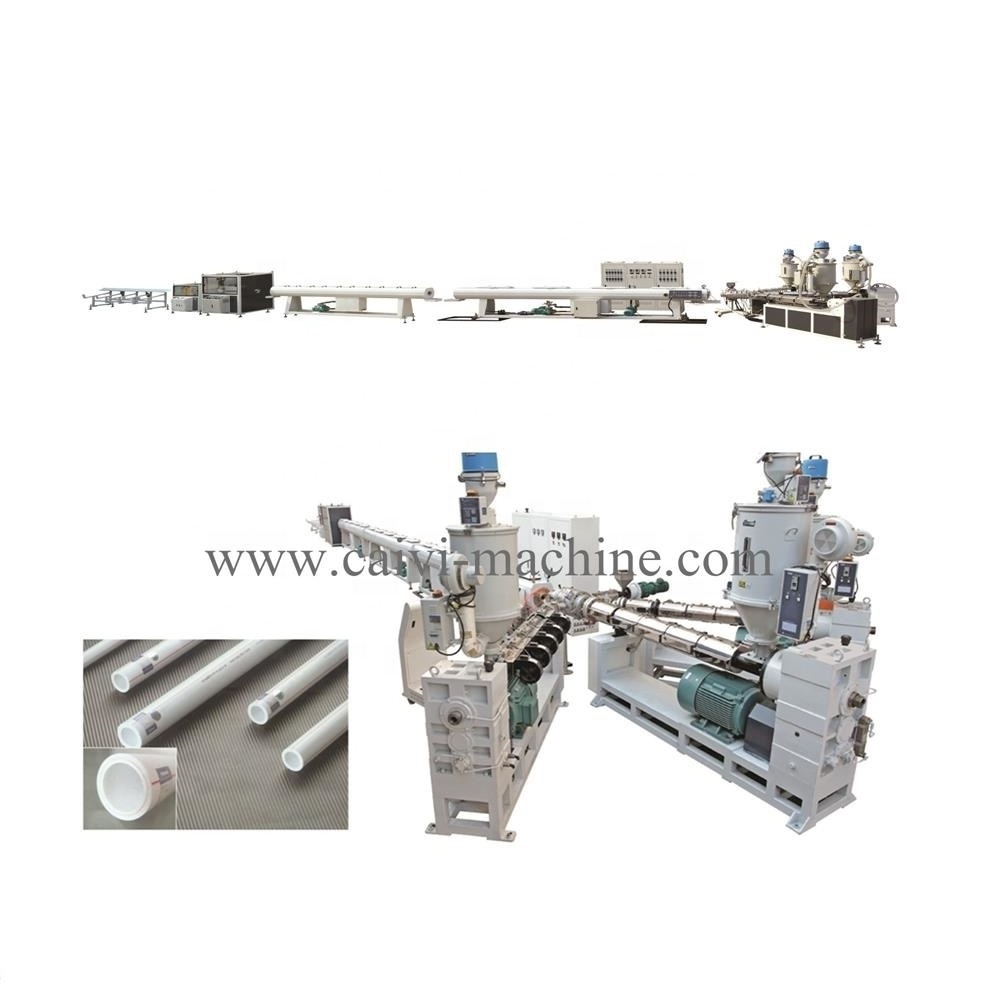

Pictures of glassfiber PPR pipe machine:
Finished products:
If you want more information about glassfiber PPR pipe machine,
please contact us, thanks!
Our company is near Shanghai, about 130km . Welcome to our factory anytime!
