- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1.85kg
-
AC input:
-
100 ~ 240Vac 50/60Hz
-
DC input:
-
16 ~ 24Vdc(2.5A max)
-
Battery capacity:
-
48000mah max
-
Battery number:
-
4 or 8 (selectable)
-
Ambient temperature in working mode:
-
0-40℃
-
Ambient temperature in discharge mode:
-
0-50℃
-
Unit dimension (mm):
-
214 *158.5 *86
-
output one:
-
1 * 9V/12V (2A)(selectable)
-
lithium battery:
-
18650 or 21700 or 32650(selectable)
-
output two:
-
1 *5VDC +2 *USB(2.4A)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ADC
-
Model Number:
-
DCP45W-60W
-
Weight:
-
1.85kg
-
AC input:
-
100 ~ 240Vac 50/60Hz
-
DC input:
-
16 ~ 24Vdc(2.5A max)
-
Battery capacity:
-
48000mah max
-
Battery number:
-
4 or 8 (selectable)
-
Ambient temperature in working mode:
-
0-40℃
-
Ambient temperature in discharge mode:
-
0-50℃
-
Unit dimension (mm):
-
214 *158.5 *86
-
output one:
-
1 * 9V/12V (2A)(selectable)
-
lithium battery:
-
18650 or 21700 or 32650(selectable)
-
output two:
-
1 *5VDC +2 *USB(2.4A)

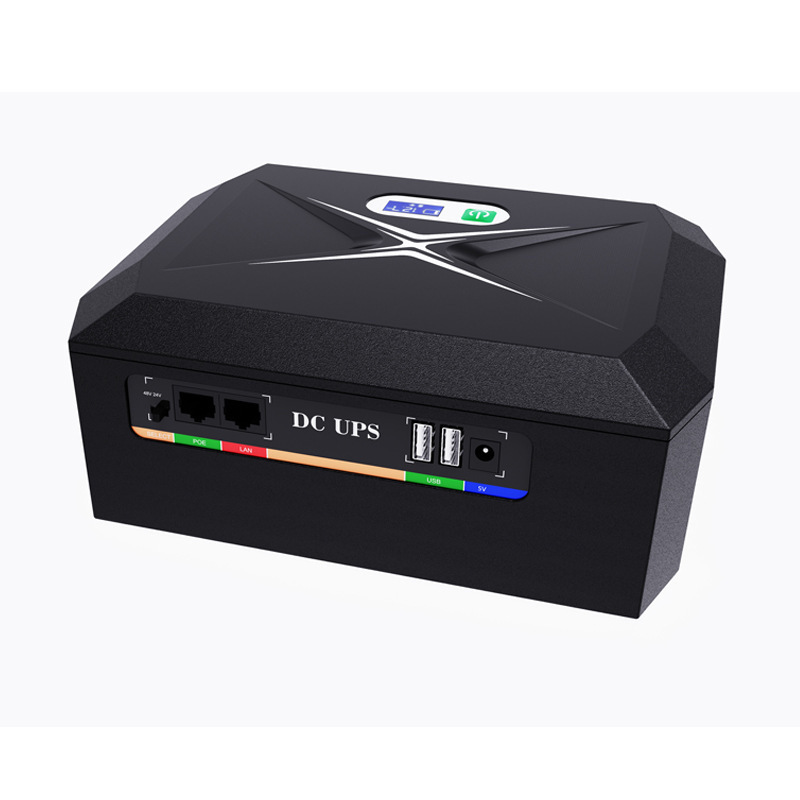

Product Description
FEATURES
*Power your Router and ONU (Optical Network Unit) during power outages.
*Keep your mobile devices charged with dual USB ports.
*Power your CCTV cameras and VoIP phones with Gigabit POE.
*Compatible with a wide range of routers.
*Supports powering computers with 19V.(customized)
*Support for cloud-based monitoring by WIFI. (customized)
*154Wh max High-capacity Li-ion or LiFePo4 batteries.
*Intelligent protective design with over-charge over-discharge and short circuit
protection
Specification
|
Model
|
DCP45W-60W
|
DCP100W
|
|
|
|
|
DCP120W
|
||||||
|
Input
|
100 ~ 240Vac 50/60Hz
|
|
|
|
|
|
|
||||||
|
|
16 ~ 24Vdc(2.5A max)
|
|
|
|
|
|
|
||||||
|
Output
|
1 × 9V/12V (2A)(selectable)
|
|
|
|
|
|
|
||||||
|
|
Standard：4 × 12V(5A) customized：
3 × 12V(5A) +1 × 19V(3A) |
Standard：4 × 12V(8A) customized：
3 × 12V(8A)+1 ×19V(5A) |
|
|
|
|
Standard：4 × 12V(10A) customized：
3 × 12V(10A)+1 × 19V(6A) |
||||||
|
|
1 × 5VDC +2 × USB(2.4A)
|
|
|
|
|
|
|
||||||
|
|
Standard：
1 × 24(1.2A) /48V(0.6A) (POE 1 Gbps) (selectable) customized 1： 2 × 24(1.2A) /48V(0.6A) (POE 1 Gbps) (selectable) customized 2： 1 × 24V(1.2A) /48V(0.6A) (POE 1 Gbps) (selectable) + 1 × 15V(1.5A) /24V(1A) (POE) (selectable) customized 3： 2 × 15V(1.5A) /24V(1A) (POE) (selectable) |
|
|
|
|
|
|
||||||
|
Power output
|
60W
|
100W
|
|
|
|
|
120W
|
||||||
|
Battery capacity
|
48000mah max
|
|
|
|
|
|
|
||||||
|
Battery number
|
4 or 8 (selectable)
|
|
|
|
|
|
|
||||||
|
Battery Specification
|
18650(Lithium-Ion/LiFePO4) or 21700(LiFePO4) or 32650(LiFePO4)(selectable)
|
|
|
|
|
|
|
||||||
|
Ambient temperature
in working mode |
0-40℃
|
|
|
|
|
|
|
||||||
|
Ambient temperature
in discharge mode |
0-50℃
|
|
|
|
|
|
|
||||||
|
Unit dimension (mm)
|
214*158.5*86
|
|
|
|
|
|
|
||||||
|
Net Weight (g)
|
1850
|
|
|
|
|
|
|
||||||
