Quick Details
-
Model Number:
-
HGZK
-
Brand Name:
-
HGZK
-
Product name:
-
Electric Ball Valve
-
Pressure:
-
PN1.6MPa
-
Voltage:
-
DC12~24V (±10%), AC110-220V, 50/60Hz
-
End Connection:
-
Double Union, Threaded
-
Body material:
-
SS316, SS304
-
Control Mode:
-
On Off Type or Regulation Type
-
Seal Material:
-
PTFE
-
OEM:
-
Avaiable
-
MOQ:
-
1
-
Delivery:
-
Payment Received
Quick Details
-
Port Size:
-
1/2"~4", DN15~DN100
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
HGZK
-
Brand Name:
-
HGZK
-
Product name:
-
Electric Ball Valve
-
Pressure:
-
PN1.6MPa
-
Voltage:
-
DC12~24V (±10%), AC110-220V, 50/60Hz
-
End Connection:
-
Double Union, Threaded
-
Body material:
-
SS316, SS304
-
Control Mode:
-
On Off Type or Regulation Type
-
Seal Material:
-
PTFE
-
OEM:
-
Avaiable
-
MOQ:
-
1
-
Delivery:
-
Payment Received
|
Type
|
BALL VALVES
|
|
Customized support
|
OEM, ODM
|
|
Brand Name
|
HGZK
|
|
Power
|
Electric
|
|
Media
|
Water
|
|
Port Size
|
1/2"~4", DN15~DN100
|
|
Pressure
|
PN1.6MPa
|
|
Voltage
|
DC12~24V (±10%), AC110-220V, 50/60Hz
|
|
End Connection
|
Double Union, Threaded
|
|
Control Mode
|
On Off Type or Regulation Type
|
|
Seal Material
|
PTFE
|
Hand wrench
Switch indication
Electrical interface
|
Switch type
|
Only the switch can be controlled，Switch signal.
|
|
|
||
|
Regulating type
|
The opening can be controlled.Input & Output Signal: DC 4-20mA, DC 0-10V, DC 0-5V
|
|
|
||
|
Field Operation
|
The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus
|
|
|
||
|
Output Torque
|
50 - 4000Nm
|
|
|
||
|
Angle of Rotation
|
0-90° ± 3°
|
|
|
||
|
Action time
|
15S/30S/60S
|
|
|
||
|
Optional Voltage
|
DC12V , DC24V , AC24V , AC110 , AC220V , AC380V
|
|
|
||
|
Shell Material
|
Die-Cast Aluminum Alloy
|
|
|
||
|
Protection Class
|
IP65
|
|
|
||
|
Ambient Temp
|
Range from -20°C to +60°C
|
|
|
||
|
Appearance color:
|
White , Blue or Customize other colors
|
|
|
||

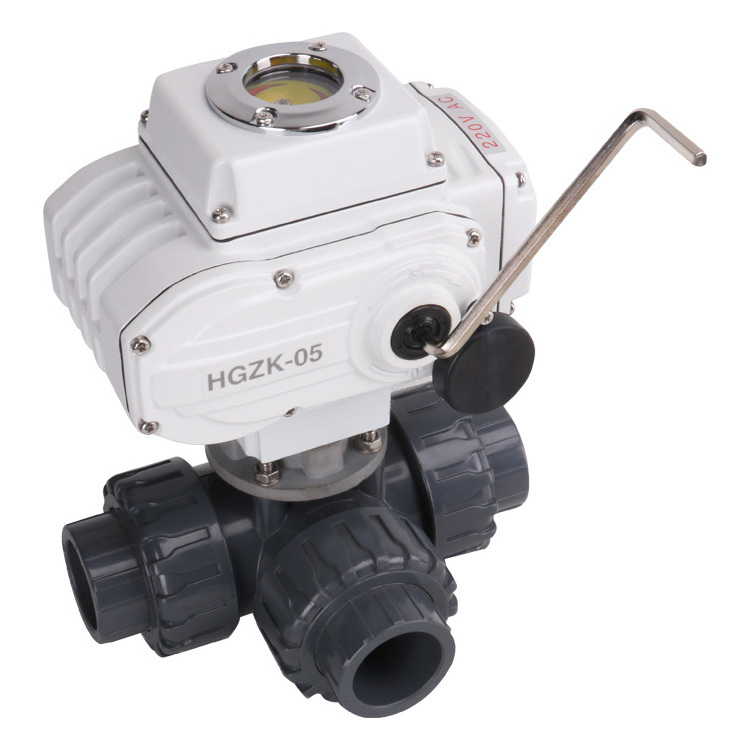

According to power,our 3 way valve include electric/pneumatic and manual types,s
ome of the popular have been selected to be displayed below.
Click on the product below you are interested in for more details
"quality and service are the life of enterprises"
We are committed to being your most loyal supplier
Carton is our common package.
Sample order will deliver by air,7-10 weekdays directly to your door.
Bulk orders depends on your area and requirements.air/sea/rail..
1. Which voltage of the electric actuator?
DC24V ，AC220V
AC24V/AC110V AC380V can be customized.
AC24V/AC110V AC380V can be customized.
2. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
3. What model is selected to control the flow
Regulating type can
Control the valve opening through electric signal.
4. Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
5.Can the electric valve automatically reset (normally open / closed) when power is off?
The electric valve is maintained after power failure and has no automatic reset function. It can be customized with battery to realize power-off reset.
6. Are there any more intelligent products？
Yes, I can introduce it to you according to your needs，
You can contact our sales staff
.
7. Is the sample order acceptable?
Yes, of course.
8. Can you do OEM for me?
We accept all OEM orders,w
e can customize different colors, LOGO and so on according to customer's requirements.
just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
9.Do you have more valve products？
We produce various valves, such as pneumatic valves, electric valves, control valves, ball valves, butterfly valves, gate valves,globe valves, check valves, etc.
10. Why Us?
Quality assurance: All the products will go through lots of tests carefully before dispatch
Competitive production capacity and fast shipping
Factory direct sale, most competitive price.
