Quick Details
-
Nature:
-
IP to RF Remodulator
-
IP Input:
-
128*IP(SPTS/MPTS)
-
IP Output:
-
1*MPTS & 127*SPTS UDP/RTP
-
ASI Input:
-
6*ASI
-
ASI Output:
-
2*ASI
-
RF output:
-
8/16*DVB-T/ATSC/ISDB-T or 16/32*DVB-C QAM
-
IP Connector:
-
RJ45, 100/1000M GigE Port
-
Support 1:
-
PCR correct and PCR interval adjusting
-
Support 2:
-
LCN (Logical Channel Number)
-
Management:
-
Easy-to-Use System Management
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-5100E
-
Nature:
-
IP to RF Remodulator
-
IP Input:
-
128*IP(SPTS/MPTS)
-
IP Output:
-
1*MPTS & 127*SPTS UDP/RTP
-
ASI Input:
-
6*ASI
-
ASI Output:
-
2*ASI
-
RF output:
-
8/16*DVB-T/ATSC/ISDB-T or 16/32*DVB-C QAM
-
IP Connector:
-
RJ45, 100/1000M GigE Port
-
Support 1:
-
PCR correct and PCR interval adjusting
-
Support 2:
-
LCN (Logical Channel Number)
-
Management:
-
Easy-to-Use System Management
Product Description
Overview

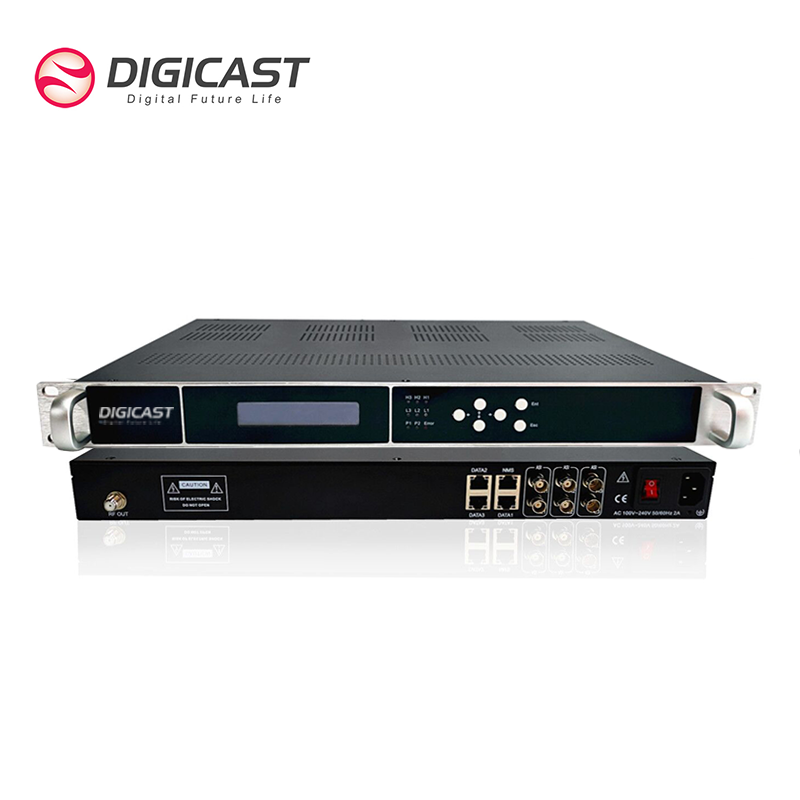

DMB-5100E Series IP To RF modulator is designed to take content delivered via an IP backbone or CDN system and modulate the programming onto digital RF signal for distribution over coax or DVB-T/ ASTC/ ISDB-T transmission.
This item is a simple all-in-one utility device gathering IP Transport Streams in UDP/RTP by 3 GigE Data ports, each data port support 128*IP(SPTS/MPTS), also support 6*ASI input, then modulate IP and ASI into 16*ISDB-T/DVB-T/ATSC Non-adjacent RF Carriers output. DMB-24E can be used for create your own IPTV Programs to RF head-end, it is the perfect solution for any DTV Broadcasting Application.
This item is a simple all-in-one utility device gathering IP Transport Streams in UDP/RTP by 3 GigE Data ports, each data port support 128*IP(SPTS/MPTS), also support 6*ASI input, then modulate IP and ASI into 16*ISDB-T/DVB-T/ATSC Non-adjacent RF Carriers output. DMB-24E can be used for create your own IPTV Programs to RF head-end, it is the perfect solution for any DTV Broadcasting Application.
Features
* Includes 3xGigabit Ethernet DATA Ports for IP input, each data port support 128*IP(SPTS/MPTS) UDP, RTP & Unicast / Multicast
* Receive up to hundreds of ip streams, re-multiplex them as wanted,and output up 16 DVB-T/ATSC/ISDB-T multi-channel RF Frequencies with the ability to distribute hundreds of SD HD programs over Coax/terrestrial transmission
* Output:16*RF DVB-T/ATSC/ISDB-T/DTMB option, IP(8*MPTS/SPTS) from data1 output
* 16 Non-Adjacent frequency out for fully use the frequency point sources
* Front panel: L1/L2/L3/H1/H2/H3 indicator light for 6*ASI input
* Web management for easy online access and management,upgrade
* Up to 180 PIDs per channel with PID remapping
* Superior Shoulders and Excellent modulation, quality MER
* Low power consumption, high reliability with MTBF (Mean Time Between Failure) ≥50000 Hours
* Receive up to hundreds of ip streams, re-multiplex them as wanted,and output up 16 DVB-T/ATSC/ISDB-T multi-channel RF Frequencies with the ability to distribute hundreds of SD HD programs over Coax/terrestrial transmission
* Output:16*RF DVB-T/ATSC/ISDB-T/DTMB option, IP(8*MPTS/SPTS) from data1 output
* 16 Non-Adjacent frequency out for fully use the frequency point sources
* Front panel: L1/L2/L3/H1/H2/H3 indicator light for 6*ASI input
* Web management for easy online access and management,upgrade
* Up to 180 PIDs per channel with PID remapping
* Superior Shoulders and Excellent modulation, quality MER
* Low power consumption, high reliability with MTBF (Mean Time Between Failure) ≥50000 Hours
Application & Diagram
