Quick Details
-
Machinery Function:
-
Peanut Butter Machine
-
Usage:
-
colloid mill for cocoa bean
-
Function:
-
Bone Grinding
-
machine function:
-
colloid mill, colloid grinder, paste colloidal grinder
-
Capacity:
-
600-750kg/h
-
customer:
-
Canada, Philippines, Indonesia
-
Material:
-
stainless steel food grade
-
conveyor size:
-
310*1500 mm
-
material:
-
bone,frozen meat
-
advantage:
-
Muti-functional
-
Feature:
-
High Slicing Efficiency
Quick Details
-
Weight (KG):
-
300
-
Place of Origin:
-
China
-
Machinery Capacity:
-
Peanut Butter Machine
-
Machinery Function:
-
Peanut Butter Machine
-
Usage:
-
colloid mill for cocoa bean
-
Function:
-
Bone Grinding
-
machine function:
-
colloid mill, colloid grinder, paste colloidal grinder
-
Capacity:
-
600-750kg/h
-
customer:
-
Canada, Philippines, Indonesia
-
Material:
-
stainless steel food grade
-
conveyor size:
-
310*1500 mm
-
material:
-
bone,frozen meat
-
advantage:
-
Muti-functional
-
Feature:
-
High Slicing Efficiency

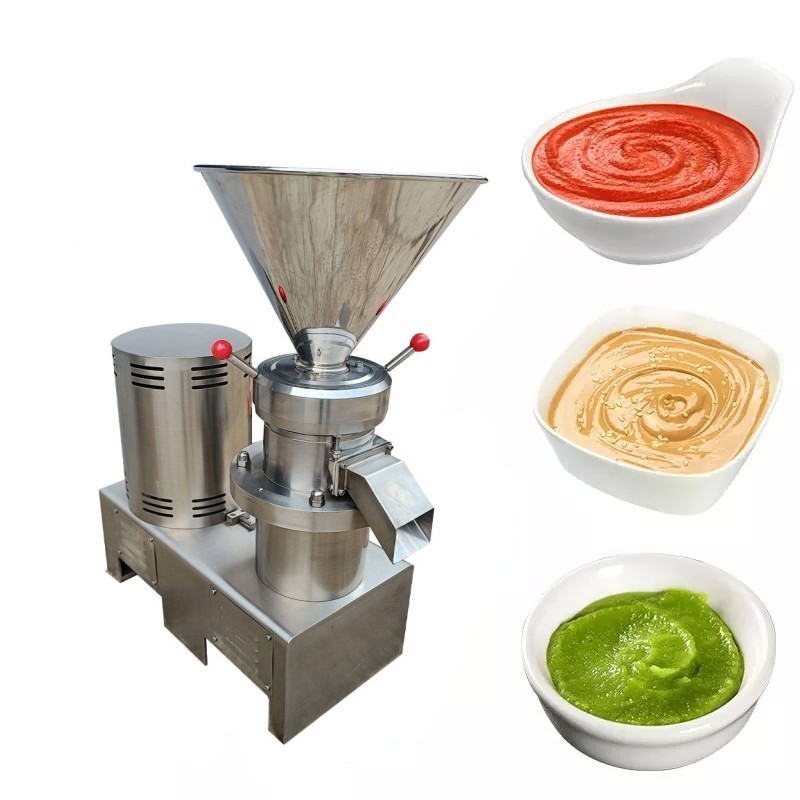

Bean Paste peanut butter making machine Commercial Horizontal Small Peanut Butter Machine Colloid Grinder Mill
Colloid mill machine Bone mud grinding products are machines for fine processing of fluid materials.It integrates the various properties of homogenizer, ball mill, three-roller, shearer, mixer and other machinery, and has superior superfine pulverization , dispersion and emulsification , homogenization,mixing and other functions.
After the material is processed, the particle size reaches
100-200
mesh, and the homogeneity reaches more than 90%. It is an ideal equipment for
ultrafine particle processing
.
This machine is suitable for ultra-fine pulverization of wet materials in the pharmaceutical, food, chemical and other industries. It can crush, emulsify, homogenize and mix
various semi-wet and emulsion substances
.
Detailed Images
Working principle
The basic working principle of colloidal mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and togrind,emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro
.
| Model | GN-50 | GN-80 | GN-110 | GN-130 | GN-180 | GN-240 | GN-300 | |
| Final size of products | 2-50 | |||||||
| Capacity (t/h) | 0.005-0.03 | 0.1-0.5 | 0.3-1.2 | 0.4-2.0 | 0.8-6.0 | 4.0-12 | 6.0-25 | |
| Main power(kw) | 1.5/1.1 | 4 | 7.5 | 11/15 | 18.5/22 | 37/45 | 75/90 | |
| Dimension | Length(mm) | 520 | 685 | 700 | 975 | 981 | 1319 | 1440 |
| Width(mm) | 250 | 335 | 430 | 456 | 476 | 500 | 630 | |
| Height(mm) | 555 | 928 | 1000 | 1054 | 1124 | 1276 | 1420 | |
| Weight (kg) | 70 | 210 | 300 | 400 | 420 | 1000 | 1600 | |
1.
Compact
structure,
large
output,
low
temperature rise,
fine
particle size,
good
sealing, stable performance,
convenient
operation,
simple
disassembly and assembly, etc.
2.The parts in contact with the materials are made of
stainless steel
, which does not pollute the processed materials, and is
hygienic
and
safe
.
3.The
grinding head
is made of
stainless steel
material and undergoes special heat treatment, which has
high wear resistance
and
long service life
4.The
range
of processed products is
wide
, and the original
various
nutrients
can be well
maintained
after the materials are processed, and the freshness preservation effect is good
5.The grinding head can be
adjusted
or
replaced
at will according to the nature of the material and actual use
6.The
stator
and
rotor
have
excellent
processing technology, and the working gap between the stator and the rotor can be
adjusted
by the
handle
7.The upper part of the machine is
equipped with a dial
, which is
easy
to
control
and ensures the processing quality of the product
8.According to different purposes,
stators
and
rotors
of different materials can be
selected
, which is
easy
to
disassemble
and
assemble
9.The
speed
of the machine can be
adjusted
, and the user can order the appropriate speed according to the processing conditions of the material
10.
Pure copper
motor, low vibration, low noise, long service life 11.
Beautiful
appearance, small footprint,
easy
to place
