Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIAJIARE
-
Model Number:
-
JJR-VT
-
SRCC/CE/Solar Keymark:
-
all
-
Certification:
-
ce, RoHS, CCC/ISO9001/solar keymark/SRCC
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Garage, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIAJIARE
-
Model Number:
-
JJR-VT
-
SRCC/CE/Solar Keymark:
-
all
-
Certification:
-
ce, RoHS, CCC/ISO9001/solar keymark/SRCC
Solar Water Heater Vacuum Tubes
Detailed parameters
| Structure | All glass double-tube co-axial structure | ||
| Tube glass | Material | 1.6mm High borosilicate 3.3 glass | |
| Expansivity | ≤3.3×10 -6 K | ||
| Transmittance | ≥0.92 | ||
| Hailstone resistance | Ø25 mm | ||
| Withstand voltage | 0.6MPa | ||
| Resist wind | 30m/s | ||
| Life | 15 years | ||
| External tube diameter and thickness | Ø=47±0.7mm &=1.6mm | Ø=58±0.7mm &=1.6mm | |
| Internal tube diameter and thickness | Ø=37±0.7mm &=1.6mm | Ø=47±0.7mm &=1.6mm | |
| Tube length | 1500mm | 1800mm | |
| Vacuum degree | P≤5.0*10 -3 Pa | ||
| Absorption coating property | Structure | Glass/CU/SS-ALN(H)/SS-ALN(L)/ALN | |
| Sediment method | 3 target magnetron sputtering plating | ||
| Absorption ratio | α=0.92~0.96(AM1.5) | ||
| Emission ratio | ε=0.04~0.06(80°C±5°C) | ||
| Idle sunning property parameters | Y=260~300m 2 .C/KW | ||
| Solar irradiation for obtaining a preset water temperature | H=3.7~4.2MJ/m2 | H=2.9~3.2MJ/m2 | |
| Average heat loss coefficient | U LT =0.4~0.6W/(m2.°C | ||
|
tube structure |
all-glass double deck co-axial structure |
|
glass material |
borosilicate 3.3 glass |
|
outer tube diameter |
47;58;70 |
|
tube length |
1500mm,1800mm,2000mm |
|
vacuum degree |
5.0×10-3Pa |
|
pressure-endu r ance |
0.6MPa |
|
hail resistance |
25mm |
|
Tube classification |
1. Tri-element hi - tech tube(purple); 2. three-target tube(blue); 3. single target tube. |
The characteristic of heat pipe:
Heat pipe is the most effective het transfer component nowadays. Especially, it can transmit heat if great distance through a small section without any outside power.

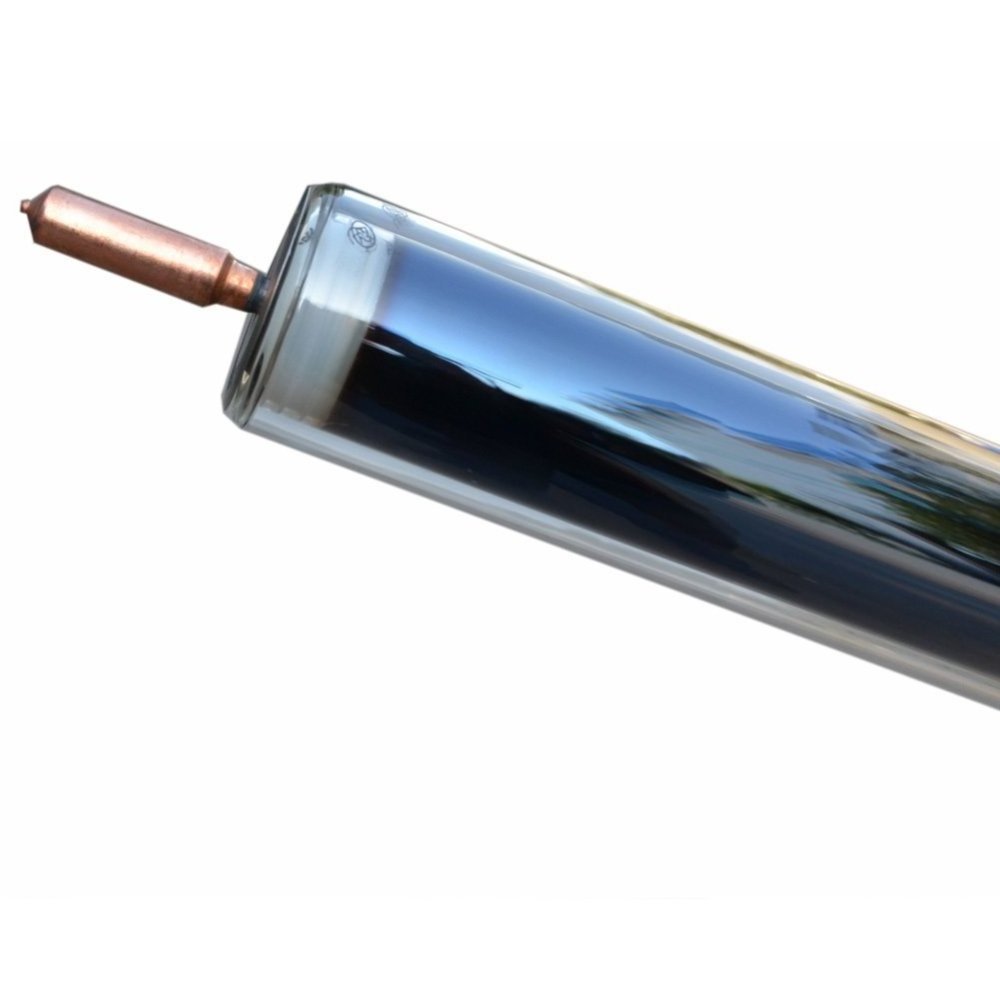

The structure of heat pipe vacuum tube:
1.copper heat pipe
2.silicone gasket
3.a luminum fin
4.vacuum tube
Working principle
1.Inside the heat pipe is a vacuum closed cavity of 1.3*(10-1~10-4)Pa, and filled with working liquid
2.When one side is heated, the liquid evaporate in the core, the steam flow to the other side under slim pressure and emit heat condensing to liquid, and the liquid flow to evaporate side be capillarity along the porous material.
By such endless cycle, the heat is transfermed from on side to the other side.
1. Solar water heater system of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becomes lighter and goes to the water tank, while cold water the tank goes down to the evacuated tubes
4. Through this circulation, the cold water in the water tank will be gradually heated .
1. cartons or wooden boxes
2. we recommend you pack with wooden boxes
3. lead time: within 7 to 15 working days
we have our clients set to list of reasons why to choose us over other solar water heater,here are our benefits. Engaged in the solar energy application technology for more than 18 years
We has received many honors and passed multiple verifications. The number of service outlets across the country, so you have no worry. Our researches and produces all kinds of products , widely used in hospitals, schools, hotels, etc.
1.Your company information, products desigh or other confidential information
2.All inquiries related to our products will be replied within 24 hours.
3.OEM is acceptable.
4.Well- trained and experienced sales are ready to service you .
