- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Smallpc
-
Model Number:
-
P04B-i3-4005U
-
Chipset Type:
-
Intel
-
Processor Series:
-
Intel Core I3-4005U
-
Video Memory:
-
1GB
-
Video Card:
-
In-tel H-D Graphics 4400
-
Product Name:
-
Mini Desktop Computer
-
CPU:
-
Intel Core I3-4005U
-
OS:
-
Linux/win7/win8/win10
-
Memory:
-
Max 8GB
-
Power:
-
15W
-
LAN:
-
2* RJ45 LAN
-
Display port:
-
2*HD Port
-
Storage:
-
1*mSATA+1*SATA3.0
-
USB Port:
-
4*USB3.0+4*USB2.0
-
Weight:
-
NW 1.5kg,GW 2.5kg
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
With the main memory
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Smallpc
-
Model Number:
-
P04B-i3-4005U
-
Chipset Type:
-
Intel
-
Processor Series:
-
Intel Core I3-4005U
-
Video Memory:
-
1GB
-
Video Card:
-
In-tel H-D Graphics 4400
-
Product Name:
-
Mini Desktop Computer
-
CPU:
-
Intel Core I3-4005U
-
OS:
-
Linux/win7/win8/win10
-
Memory:
-
Max 8GB
-
Power:
-
15W
-
LAN:
-
2* RJ45 LAN
-
Display port:
-
2*HD Port
-
Storage:
-
1*mSATA+1*SATA3.0
-
USB Port:
-
4*USB3.0+4*USB2.0
-
Weight:
-
NW 1.5kg,GW 2.5kg
Product Model

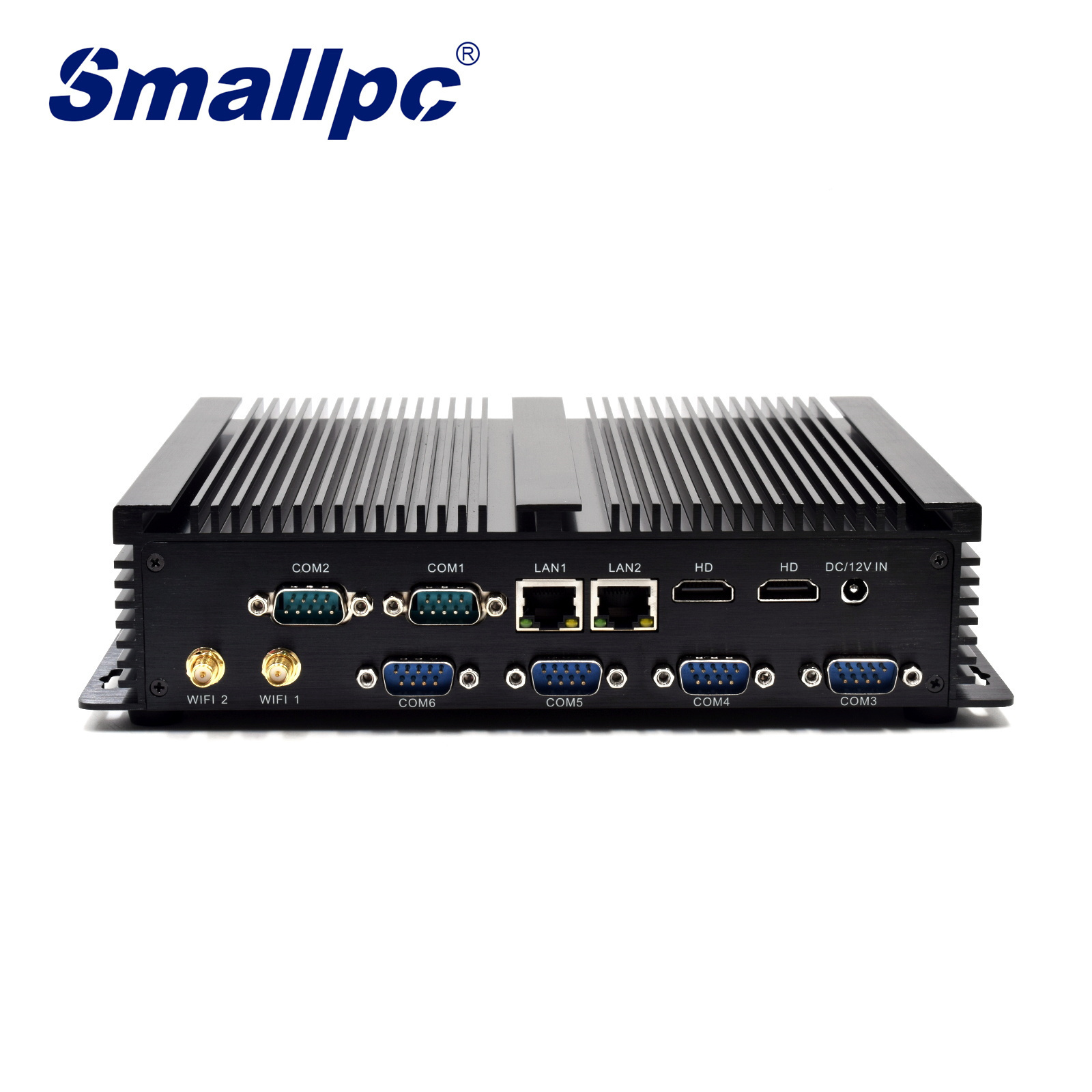

Product Highlight of P04B：
①
Equipped with In-tel Core processor , pre-installed Win10 Pro 64-bit Mini PC
②
The mini host frees up broader space resources for office and home life
③ The fanless design of this mini PC can save power and achieve zero noise
④ The cooling fan of the fanless mini computer does not use a cooling fan
⑤ The mini desktop computer comes with 4K ultra high definition streaming capability
⑥ 4 x USB 3.0 port, 4 x USB 2.0 port. Dual HDMI Display
⑦ 2 x Intel Gigabit NIC,6 x RS232 Com port
③ The fanless design of this mini PC can save power and achieve zero noise
④ The cooling fan of the fanless mini computer does not use a cooling fan
⑤ The mini desktop computer comes with 4K ultra high definition streaming capability
⑥ 4 x USB 3.0 port, 4 x USB 2.0 port. Dual HDMI Display
⑦ 2 x Intel Gigabit NIC,6 x RS232 Com port
Products Description
Product Paramenters
|
Processor
|
|
|
|
CPU
|
Intel Core i3-4005U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.70 GHz )
Intel Core i3-5005U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz ) Intel Core i5-4200U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.60 GHz) Intel Core i7-4500U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.80 GHz Turbo Frequency 3.0 GHz) Intel Core i7-5500U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.40 GHz Turbo Frequency 3.0 GHz) |
|
|
TDP
|
15W
|
|
|
CPU Lithography
|
14 nm for 5th cpu, 22 nm for 4th cpu
|
|
|
Memory Specifications
|
|
|
|
Max Memory Size
|
8GB
|
|
|
Memory Types
|
204 Pin DDR3L SO-DIMM Socket
|
|
|
Memory Channels
|
Single Channel
|
|
|
ECC Memory
|
Don’t support
|
|
|
Storage Specification
|
|
|
|
m.2 SSD
|
No M.2 slot
|
|
|
SATA
|
1 x SATA3.0 for 2.5 inch HDD/SSD
|
|
|
mSATA
|
1 x mSATA slot
|
|
|
Graphics
|
|
|
|
Processor Graphics
|
i3 4005u/i5 4200u/i7 4500u Intel® HD Graphics 4400; i3 5005u/i7 5500u Intel® HD Graphics 5500
|
|
|
HDMI
|
2 x HDMI
|
|
|
VGA
|
No
|
|
|
Power Specification
|
|
|
|
Power Adapter
|
12V Power Input, supply 12V 5A power adapter within the package
|
|
|
Auto Power On
|
Support Auto Power On Function
|
|
|
In & Out interfaces
|
|
|
|
USB Port
|
4 x USB 3.0 port, 4 x USB 2.0 port
|
|
|
Audio
|
3.5mm 1 Jack, MIC in/ Line out
|
|
|
Video
|
Dual HDMI Display
|
|
|
Power Input
|
5.5mm 12V In
|
|
|
Lan Port
|
2 x Intel Gigabit NIC
|
|
|
Com Port
|
6 x RS232 Com port
|
|
|
Others
|
|
|
|
System
|
Support Windows 7/10, Linux
|
|
|
Case Material
|
Aluminium Alloy
|
|
|
Dimension
|
Mini PC size 234x175x50mm
Package size 321x258x78mm |
|
|
Weight
|
Gross weight 2.1 kg
|
|
Product packaging
Product Packing
1x Mini PC
1x AC adapter ( we ship correct power plug base on buyer's address )
1x Power Cable
1x SATA Power cable & data cable
