* Sturdy construction
* Easy cutting
* Corrosion-resistance * Quick and precise cutting
* Available for different size cutting of slab
* Perfect surface of the slabs
* Relaible and with minimal operating costs
* Less water consumption and low cutting noise
Requirements:
* Square block
* Gang saw size block properly cemented on trolley
* Availability of water as the coolant.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
high
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Weight:
-
45000 kg
-
Marketing Type:
-
Hot Product 2022
-
Control system:
-
PLC
-
Max Cutting Length:
-
3200mm
-
Max Cutting Height:
-
2000mm
-
Slab Thickness:
-
20/30mm
-
Diamond Bead Diameter:
-
6.3/7.2mm
-
Diamond Wire Length:
-
23000mm
-
Max. Wire Tension:
-
200/250kg
-
Wire Speed:
-
0-35m/s
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
160/250 KW
-
Cutting thickness (max):
-
2000mm
-
Production Capacity:
-
high
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Weight:
-
45000 kg
-
Marketing Type:
-
Hot Product 2022
-
Control system:
-
PLC
-
Max Cutting Length:
-
3200mm
-
Max Cutting Height:
-
2000mm
-
Slab Thickness:
-
20/30mm
-
Diamond Bead Diameter:
-
6.3/7.2mm
-
Diamond Wire Length:
-
23000mm
-
Max. Wire Tension:
-
200/250kg
-
Wire Speed:
-
0-35m/s

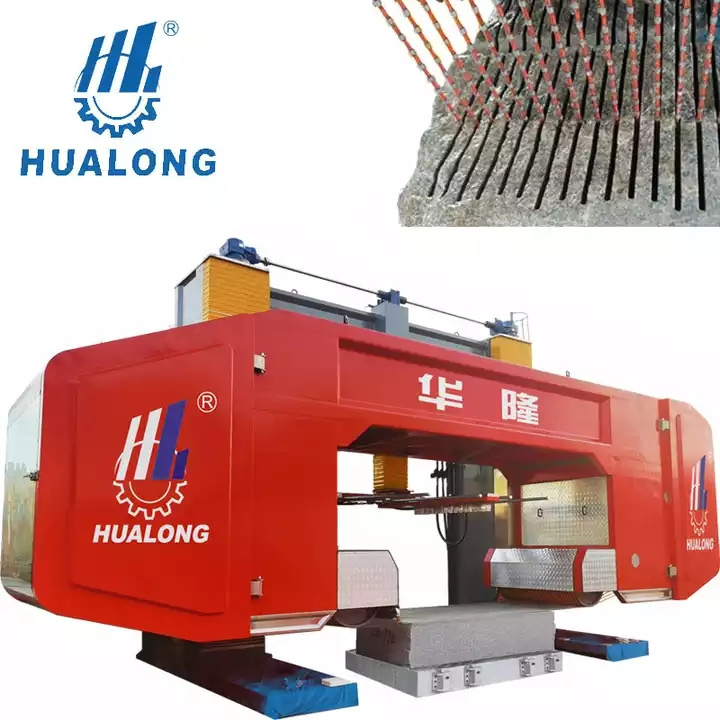

Multi Wire Saw Machine
HLMW series Multi Wire Saw for granite cutting
is a technology developed for the enhancement of productivity in the granite gangsaw industry, with saving on the cost of raw material sawn to the tune of 3% on an average of a granite block sawn..
It cut the granite block with a number of diamond wires. The diamond wire is a cable with a diameter of 6.3-7.2 mm and on its surface are threaded diamond-impregnated beads. The diamond beads serve as an abrasive and are cooled and cleaned by water jets, the wasted material is also eliminated by the water.
The Multi Wire Saw enables better surface finish on the slab sawn & the biggest advantage is the low sawing cost. Further, there is an excellent cutting quality with accuracy and smooth cutting with low noise. There is also a good amount of saving on the power & water consumption.
Title goes here.
|
TECHNICAL DATA
|
|
|
|
|
|
|||||
|
Model No.
|
HLMW-21U
|
HLMW-36U
|
HLMW-42U
|
HLMW-58U
|
HLMW-72U
|
|||||
|
Max. Number of Wire (pcs)
|
21
|
36
|
42
|
58
|
72
|
|||||
|
Length of Wire (m)
|
23
|
23
|
23
|
23
|
23
|
|||||
|
Diameter of Wire (mm)
|
6.3/7.2
|
6.3/7.2
|
6.3/7.2
|
6.3/7.2
|
6.3/7.2
|
|||||
|
Slab Thickness (mm)
|
20/30
|
20/30
|
20/30
|
20/30
|
20/30
|
|||||
|
Max. Cutting Length (mm)
|
3200
|
3200
|
3200
|
3200
|
3200
|
|||||
|
Max. Cutting Height (mm)
|
2000
|
2000
|
2000
|
2000
|
2000
|
|||||
|
Max. Wire Tension (kgs)
|
200/250
|
200/250
|
200/250
|
200/250
|
200/250
|
|||||
|
Wire Speed (m/s)
|
0-35
|
0-35
|
0-35
|
0-35
|
0-35
|
|||||
|
Main Motor (kw)
|
95
|
132
|
160
|
250
|
280
|
|||||
|
Water Consumption (L/min)
|
500
|
800
|
1000
|
1800
|
2300
|
|||||
|
Machine Length (mm)
|
11000
|
11800
|
11800
|
11800
|
11800
|
|||||
|
Machine Height (mm)
|
5900
|
5900
|
5900
|
5900
|
5900
|
|||||
|
Gross weight (kg)
|
30000
|
35000
|
45000
|
50000
|
65000
|
|||||
Main Components of the Multiwire Machine HLMW series:
* Driving system, * Tensioning system,
* Trolley moving system,
* Speed and pressure regulator system,
* Sprinkler system,
* Lubricating system
* Trolley moving system,
* Speed and pressure regulator system,
* Sprinkler system,
* Lubricating system
Super stable structure of HUALONG multi wire saw same as Italy Pedrini
Sawing quality and productivity are unparalleled while sawing structure feed rates remain consistently at the maximum possible levels Allows cutting several blocks of different dimensions and stone types simultaneously. Greater cut capacity using less space and less cost.
Driving Wheel
An enormous roller with a diameter of 2,20 metres and a peripheral speed of 35 m/s.
The surface of the wheel is inlaid with a wear-resistant polyurethane rubber liner (dovetail groove) which is convenient for users to replace and maintain. So it reduces the maintenance cost.
The surface of the wheel is inlaid with a wear-resistant polyurethane rubber liner (dovetail groove) which is convenient for users to replace and maintain. So it reduces the maintenance cost.
Wire Guide Rollers
Each guide wheel can approach the block and always assume a position in its immediate vicinity. So as to guarantee the highest rolling speed and the greatest cutting precision, resulting in a better final quality of the cut slabs.
Individual wire tensioning
The system performs the displacement necessary for diamond wires replacement, for slabs thickness change, holds programmed tension equal on each wire and balance wire elongation during the cut. The tensioning pulley of each wire is constantly controlled. The machine is able to check the eventual excessive stretching of each wire.
Supported on 2 columns
The structure of two columns strongly fixed to foundations and one connecting "W" structure, that have been built with wide closed section in large thickness normalized steelwork. All the structural parts have undergone structural checks in accordance with FEM (Finite Elements Methods).
It ensures a high level of rigidity and no vibration.
It ensures a high level of rigidity and no vibration.
Water supply on top & both sides
Compared with the traditional granite cutting by gang saw, less water consumption is needed.
Water jets cool and clean the diamond beads, and eliminate the wasted material also.
Water jets cool and clean the diamond beads, and eliminate the wasted material also.
* Colour can be customized
* 10, 21, 36, 42, 58, 72, 80, 82, 84 or 86 wires can be customized
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What’s your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
