Quick Details
-
Electric System:
-
Siemens or schneider
-
Working Pressure:
-
25Mpa
-
Stroke:
-
500-2000mm
-
Application:
-
Metal Sheet Stamping
-
Material:
-
Q235
Quick Details
-
Place of Origin:
-
China
-
Item:
-
Hydraulic metal stamping deep drawing press machine
-
Capacity:
-
50T ~ 3000T
-
Electric System:
-
Siemens or schneider
-
Working Pressure:
-
25Mpa
-
Stroke:
-
500-2000mm
-
Application:
-
Metal Sheet Stamping
-
Material:
-
Q235

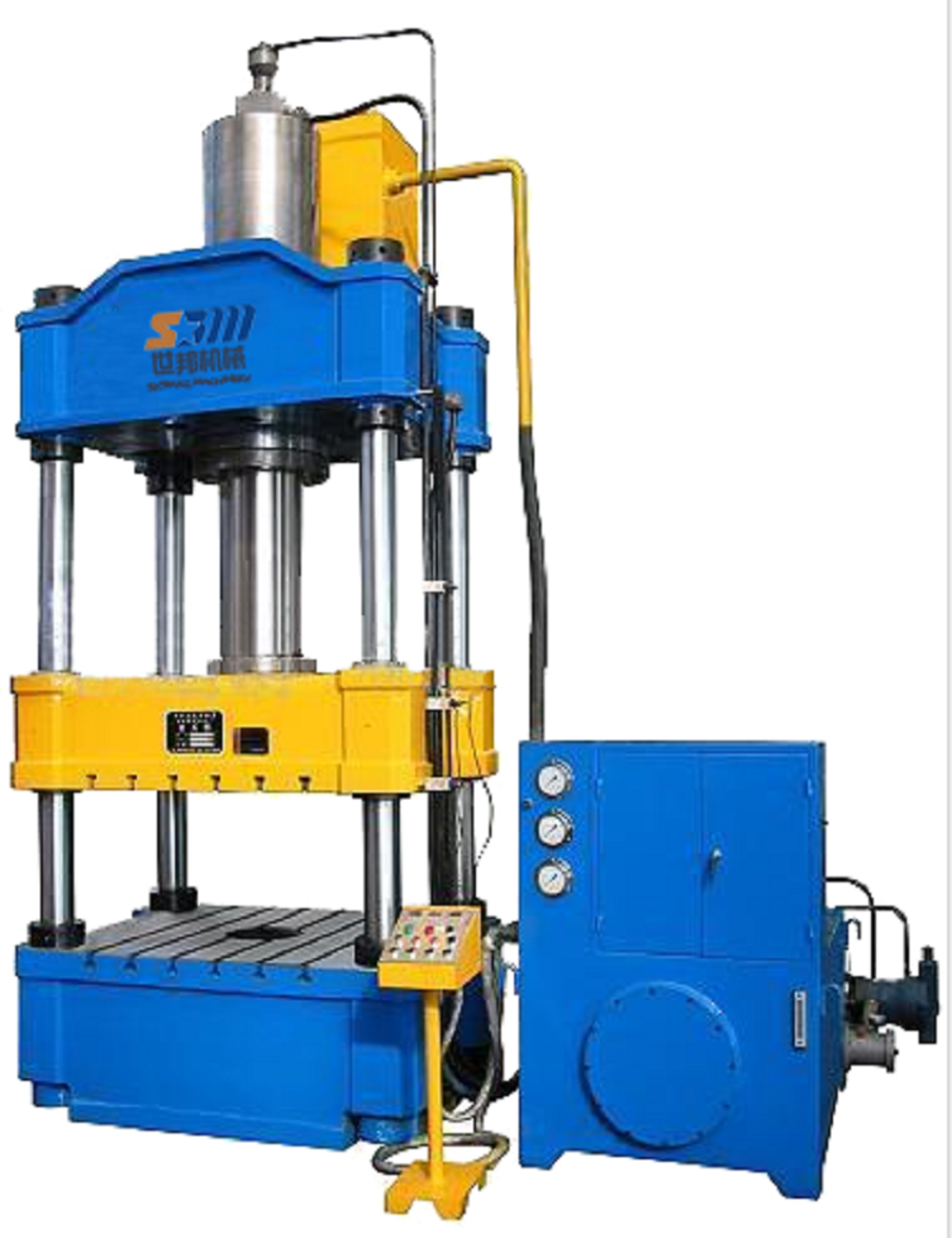

automatic hydraulic metal stamping deep drawing press machine
Product Description
| ----------------------------------------- S pecification ----------------------------------- |
Deatailed specifications
| No | Item | Data | Unit |
| 1 | Nominal force | 5000 | KN |
| 2 | Knock-out pressure | 630 | KN |
| 3 | Max. working pressure of liquid | 25 | Mpa |
| 4 | Max. open height | 1250 | mm |
| 5 | Stroke of slide | 1000 | mm |
| 6 | Stroke of top cylinder | 500 | mm |
| 7 | Dimension of table (left to right) | 1450 | mm |
| 8 | Dimension of table (front to back) | 1450 | mm |
| 9 | Travel speed of main cylinder (fast down) | 100 | mm/s |
| 10 | Travel speed of main cylinder (workinh) | 10 | mm/s |
| 11 | Travel speed of main cylinder (return) | 45 | mm/s |
| 12 | Power | 18.5 | KW |
| ----------------------------------------- P roduct S how----------------------------------- |
42CrMo Column (Chroming surface) Hardness HRC55
Packaging & Shipping
| ------------------------------------------- T rade -------------------------------------------- |
MOQ : 1set Four Column Hydraulic Press
Package
:
Wrapped by plastic films and fixed by steel wires in the containers.
Payment Terms : 30% or 50% deposit, the rest L/C, T/T before shipment
Delivery : 50 days
Shipping : By air, by express, by train, by sea
Our Services
| ------------------------------------------- S ervice ------------------------------------------ |
- OEM and ODM service are provided
- Protection of your sales area, ideas of design and all your private information
- Tested one by one before delivery to ensure 100% working perfect
- Merkel from Germany Seal kits for Cylinder to ensure safety in transportation
- In stock for fast delivery, best after-sales service
