Quick Details
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
-
Color:
-
Customized
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEITAI/ODM
-
Application:
-
Case
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
-
Color:
-
Customized

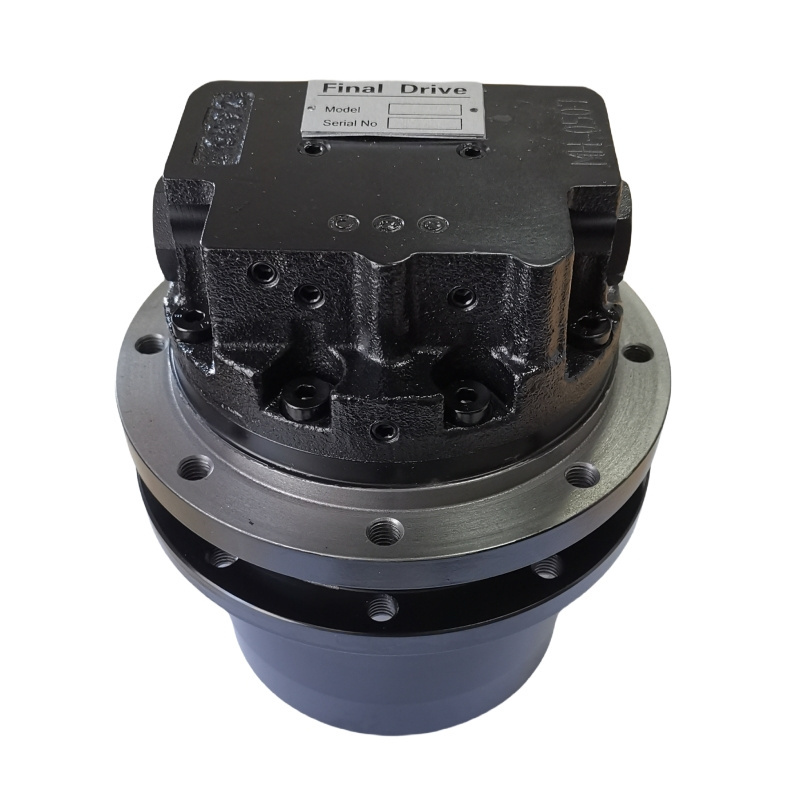

Product Description
|
Input Flow
|
40 L/min
|
40 L/min
|
40 L/min
|
|
Motor Displacement
|
24/14 cc/r
|
24/14 cc/r
|
20.7/13.4 cc/r
|
|
Working Pressure
|
210 bar
|
210 bar
|
210 bar
|
|
2-Speed Switching Pressure
|
20~70 bar
|
20~70 bar
|
20~70 bar
|
|
Ratio Options
|
52.7
|
37.8
|
52.7
|
|
Max. Output Torque
|
4200 N.m
|
3000 N.m
|
3645N.m
|
|
Max. Output Speed
|
54 rpm
|
75.6 rpm
|
56.6 rpm
|
|
Machine Application
|
1.5~2.5 Ton
|
1.5~2.5 Ton
|
1.5~2.5 Ton
|
Connection Dimensions
|
Frame Orientation Diameter
|
A
|
165 mm
|
165 mm
|
165 mm
|
|
Frame Holes P.C.D
|
B
|
192 mm
|
192 mm
|
192 mm
|
|
Frame Bolt Pattern
|
M
|
9&12-M12 Equally
|
9-M12
|
9&12-M12 Equally
|
|
Sprocket Orientation Diameter
|
C
|
210 mm
|
210 mm
|
210 mm
|
|
Sprocket Holes P.C.D
|
D
|
232 mm
|
232 mm
|
232 mm
|
|
Sprocket Bolt Pattern
|
N
|
9&12-M12 Equally
|
12-M12
|
9&12-M12 Equally
|
|
Flange Distance
|
E
|
70 mm
|
70 mm
|
70 mm
|
|
Approximate Weight
|
|
52 kg
|
52 kg
|
52 kg
|
WeiTai Interchangeable Product
Packing
Recommended Products
Product Application
Our Company
FAQ
1) Hydraulic motors of which brands can be replaced with WEITAI's ones?
A: Our motors are interchangeable with the motors of the following brands: Eaton, Doosan, Jeil, KYB, Nachi, Nabtesco, Rexroth, Poclain, Bonfiglioli, etc.
2) How can I choose the right model of the hydraulic motor to fit my machine?
A: Different markets have different machine variations. The best way to find the right motor is to look at the motor brand and the machine model you have. Another way would be by measuring the key dimensions of the flange frame and the sprocket flange. Please contact our sales team to get technical support if you have difficulties choosing the right motor for your application.
3) Can you produce hydraulic motors based on your customer's designs and dimensions?
A: Yes, we can. We are ready to provide the best customized hydraulic solutions for your business.
4) Can the OEM parts apply to WEITAI's travel motors?
A: No, they cannot. Although they might have a similar appearance, their internal structures are different. Only WEITAI's spare parts can fit WEITAI's travel motors.
5) What information do we need our customers to provide while choosing the right hydraulic motor for their application?
A: (1) Drawing, or (2) original motor model, or (3) machine model and part No.
A: Our motors are interchangeable with the motors of the following brands: Eaton, Doosan, Jeil, KYB, Nachi, Nabtesco, Rexroth, Poclain, Bonfiglioli, etc.
2) How can I choose the right model of the hydraulic motor to fit my machine?
A: Different markets have different machine variations. The best way to find the right motor is to look at the motor brand and the machine model you have. Another way would be by measuring the key dimensions of the flange frame and the sprocket flange. Please contact our sales team to get technical support if you have difficulties choosing the right motor for your application.
3) Can you produce hydraulic motors based on your customer's designs and dimensions?
A: Yes, we can. We are ready to provide the best customized hydraulic solutions for your business.
4) Can the OEM parts apply to WEITAI's travel motors?
A: No, they cannot. Although they might have a similar appearance, their internal structures are different. Only WEITAI's spare parts can fit WEITAI's travel motors.
5) What information do we need our customers to provide while choosing the right hydraulic motor for their application?
A: (1) Drawing, or (2) original motor model, or (3) machine model and part No.
