Quick Details
-
Weight (KG):
-
24000
-
Voltage:
-
110V/220V/380V/Customize
-
Rated Capacity:
-
100kva*12pcs
-
Rated Duty Cycle:
-
50%
-
Dimensions:
-
14*3.2*2.3m
-
Use:
-
for building and construction
-
Wire diameter:
-
3-8mm
-
Longitude wire space:
-
100mm-300mm
-
Cross wire space:
-
50mm-300mm
-
Longitude wire feeding:
-
from coils directly
-
Cross wire feeding:
-
pre-straightened & pre-cut
-
Width of mesh:
-
2.5m/3m
-
Welding speed:
-
70-100times/min
-
Weight:
-
24ton
Quick Details
-
Warranty of core components:
-
2 Years
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIAKE
-
Weight (KG):
-
24000
-
Voltage:
-
110V/220V/380V/Customize
-
Rated Capacity:
-
100kva*12pcs
-
Rated Duty Cycle:
-
50%
-
Dimensions:
-
14*3.2*2.3m
-
Use:
-
for building and construction
-
Wire diameter:
-
3-8mm
-
Longitude wire space:
-
100mm-300mm
-
Cross wire space:
-
50mm-300mm
-
Longitude wire feeding:
-
from coils directly
-
Cross wire feeding:
-
pre-straightened & pre-cut
-
Width of mesh:
-
2.5m/3m
-
Welding speed:
-
70-100times/min
-
Weight:
-
24ton
Construction used 3-8 mm wire mesh welding machine controlled by air cylinders

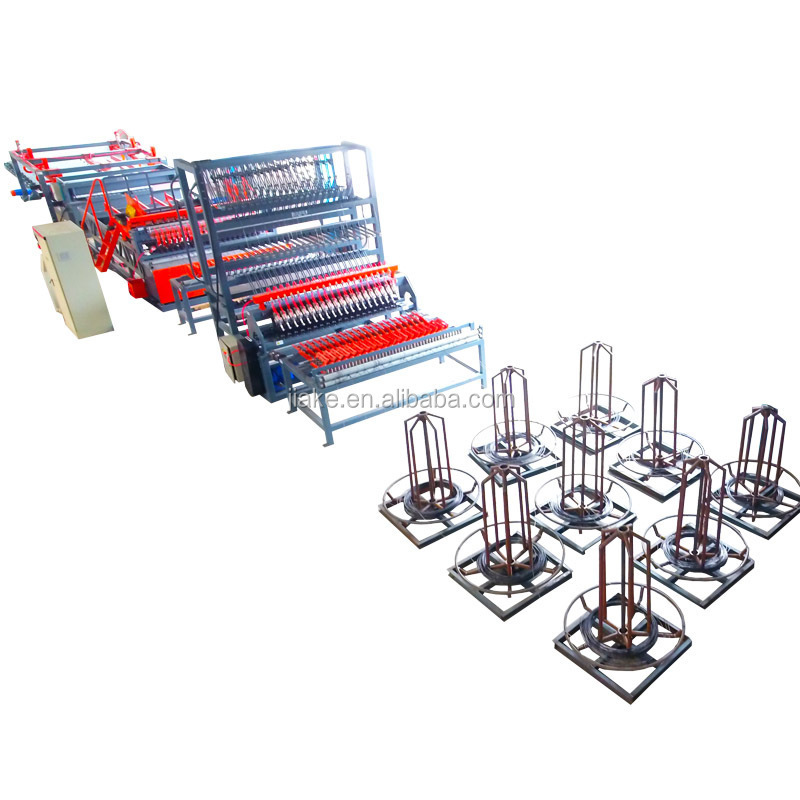

3-8mm Automatic wire mesh welding machine is used to make welded rebar mesh for building concrete reinforcement. 3-8mm Automatic welded wire mesh machine can feed cross wire from pre-cut wire and line wires from coil automatically. This 3-8mm Automatic mesh welding machine adopts a line wire accumulator and large hopper to feed steel wire, keep production continuously and save much labor.
| Model | DP-FP-2500AA |
|
| Wire diameter | 3-8mm | |
| Hole size | 100*100-300*300mm | |
| Mesh width | Max. 2500mm | |
| Mesh Length | Max. 50m | |
| Welding speed |
70-100 times/min |
|
| Welding electrodes | 24pcs | |
| Welding transformer | 150kva*6pcs | |
| longitude wire feeding | Auto coil feeding | |
| Crosswire feeding | Pre-straighten & Pre-cut | |
| Motor | 7.5kw | |
| Factory transformer | Min. 200-315kva | |
| Overall size | 45*5.5*3.3m | |
| Weight | 24T | |
| Raw material |
Low carbon wire, black wire, galvanized wire, |
NOTE: Our engineer can design a special specification machine according to your wire diameter, mesh hole size, and mesh width.
| 1. Wire straightening and cutting machine GT 4-12(2 sets) is to make pre-straighten and pre-cut cross wire use. So, the finished welded panel can be very flat and meet market demand. | |
|
|
|
2. Close type water cooling chiller It is used to recycle cooling water for the main welding machine efficiently, especially functional in tropical regions or when machines work continuously. |
|
|
|
Reinforcing mesh welding line, also called BRC mesh welding machine, Construction mesh welding machine. The reinforcement mesh welding machine is used to make steel rebar mesh, road mesh, building construction mesh, etc. With more-than-20years experience in design and manufacture, our BRC mesh welding machine is featured by high capacity, easy operation, and precise control.
Hebei Jiake Welding Equipment Co., Ltd. It’s the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
Hebei Jiake engineers provide commission service in more than 100 countries and regions including Mexico, Canada, New Zealand, Russia, Thailand, Indonesia, India, KZ, Poland, Romania, Greece, Algeria, South Africa, Uganda.
Q: Where is your factory located?
A:
Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A:
More than 25 years. We have our own technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A:
Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A:
Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A:
We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
