Quick Details
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
MH-Night Vision Monocular
-
Model Number:
-
MH-PVS14
-
Weight:
-
310g(with battery)
-
Effective Visual Distance:
-
200m
-
FOV:
-
40°
-
Eye relief distance:
-
25mm
-
Eye relief diameter:
-
14mm
-
Focus range:
-
250mm to infinity
-
Battery type:
-
AA battery or CR123
-
Duration time:
-
30 hours
-
FOM:
-
1600+
-
Diopter:
-
-6~+2 (-5,+5 can customize)
-
Protecion level:
-
IP65(IP67 Optional)
-
Operating Voltage:
-
3.0V
Quick Details
-
Size:
-
114*70*60mm
-
Type:
-
Monocular
-
Magnification:
-
1x
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
MH-Night Vision Monocular
-
Model Number:
-
MH-PVS14
-
Weight:
-
310g(with battery)
-
Effective Visual Distance:
-
200m
-
FOV:
-
40°
-
Eye relief distance:
-
25mm
-
Eye relief diameter:
-
14mm
-
Focus range:
-
250mm to infinity
-
Battery type:
-
AA battery or CR123
-
Duration time:
-
30 hours
-
FOM:
-
1600+
-
Diopter:
-
-6~+2 (-5,+5 can customize)
-
Protecion level:
-
IP65(IP67 Optional)
-
Operating Voltage:
-
3.0V
Contact Engineer Manager
Sales engineer :
Lemon Zhao
Whatsapp/Wechat:
0086-182-9141-8396
Email:
lemon@mh-elec.com
Product Description

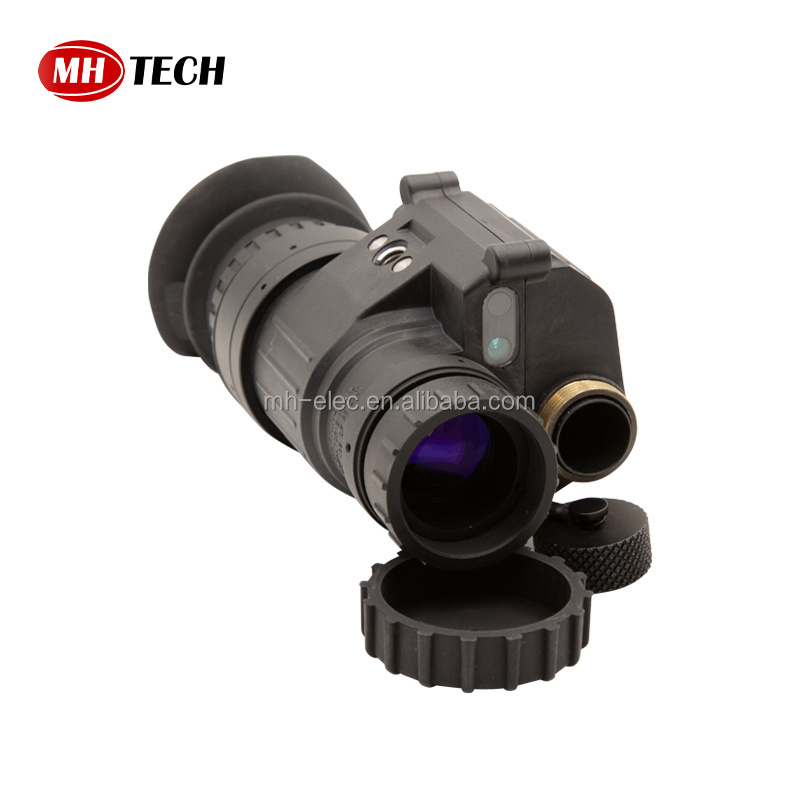

The PVS-14 is the all around best
multi- functional
night vision monocular available.
Head or helmet mounted
, the PVS-14 allows the user to retain their night adapted vision in one eye while viewing their surroundings through the illuminated eyepiece.
GOODS IN STOCK CHEAP PRICE!
Specification
|
Magnification
|
1x
|
|
FOV
|
40°
|
|
Eye relief distance
|
25mm
|
|
Eye relief diameter
|
14mm
|
|
Diopter
|
-6~+2 (-5,+5 can customize)
|
|
Lens system
|
25mm F#1.2
|
|
Eyepiece lens system
|
25mm
|
|
Focus range
|
250mm to infinity
|
|
Dimension
|
114*70*60mm
|
|
Weight
|
310g(with battery)
|
|
Battery type
|
AA batery or CR123
|
|
Duration time
|
30hours
|
|
IR Illuminator
|
Yes
|
|
Highlight protection function
|
Yes
|
|
IIT Classification
|
Euro Gen3
|
|
Photocathode type
|
18mm S-25
|
|
Resolution typical, lp/mm
|
＞ 60 Lp/mm
|
|
Luminous gain,typical , fl/fcd
|
19000-30000
|
|
Signal-to-noise ratio, typical
|
＞23
|
|
FOM
|
1600+
|
|
Operation temp.
|
-20℃〜50℃
（Can customize -40℃〜55℃） |
|
Storage temp.
|
-40℃〜60℃
|
|
Protecion level
|
IP65（IP67 Optional）
|
