Quick Details
-
Dimension(L*W*H):
-
based on model
-
Weight:
-
1800 KG
-
Tank Height (m):
-
4.8 (m)
-
Diameter (m):
-
2.5 (m)
-
Total height:
-
8.5m
-
Cone Pieces:
-
Cone is divided into 5 pieces
-
Cone Height:
-
2.6 (m)
-
Discharging height (m):
-
≥1.5 (m)
-
Landing leg height (m):
-
≥4.1 (m)
-
Capacity:
-
30t
Quick Details
-
Core Components:
-
Pump
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DiHai
-
Dimension(L*W*H):
-
based on model
-
Weight:
-
1800 KG
-
Tank Height (m):
-
4.8 (m)
-
Diameter (m):
-
2.5 (m)
-
Total height:
-
8.5m
-
Cone Pieces:
-
Cone is divided into 5 pieces
-
Cone Height:
-
2.6 (m)
-
Discharging height (m):
-
≥1.5 (m)
-
Landing leg height (m):
-
≥4.1 (m)
-
Capacity:
-
30t
Product Description

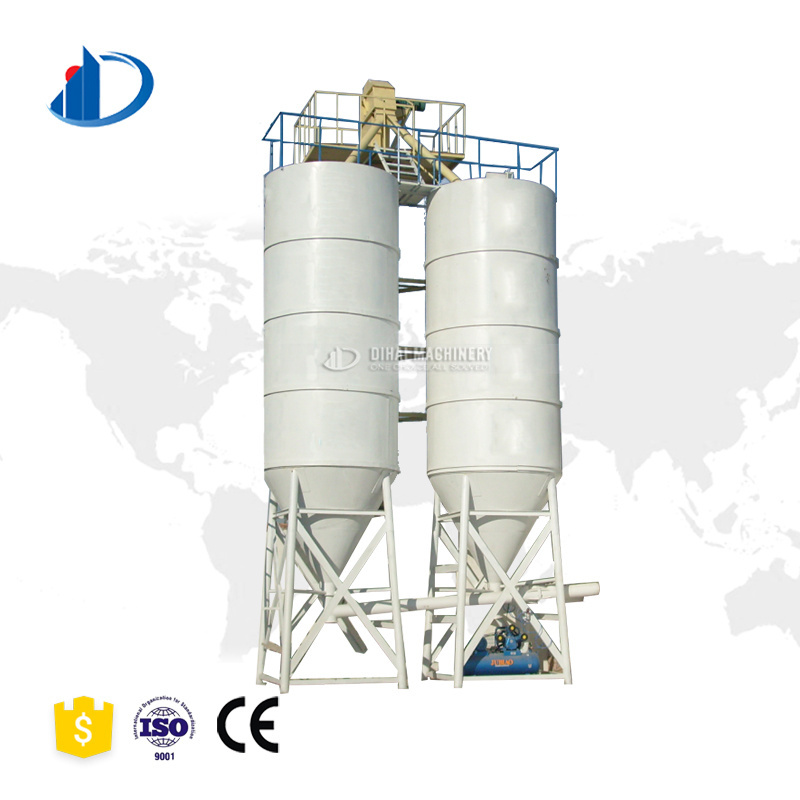

The silo can be used to store cement,coal ash and other kinds of powder as a main part of concrete batching plant.
The cement silo is usually used with concrete batching plant to store bulk cement. It is a main part of concrete mixing plant.
Except cement,it can also store bulk material, like fly ash, fine ore, dry mortar, etc… It is featured by rain and dampness
resistant, and easy to use, etc.
The cement silo is usually used with concrete batching plant to store bulk cement. It is a main part of concrete mixing plant.
Except cement,it can also store bulk material, like fly ash, fine ore, dry mortar, etc… It is featured by rain and dampness
resistant, and easy to use, etc.
Parameter
|
Models
|
30T
|
50T
|
60T
|
80T
|
100T
|
120T
|
150T
|
120T
|
|
Tank diameter
|
2.5m
|
3m
|
3m
|
3m
|
3m
|
3m
|
3.2m
|
4.5m
|
|
Tank height
|
4.8m
|
5.4m
|
6m
|
7.5m
|
9m
|
10.5m
|
12.8m
|
18.6m
|
|
Total height
|
8.5m
|
8m
|
8.5m
|
10m
|
11.5m
|
13m
|
15.6m
|
23m
|
Application
Sheet cement silo is a new type of silo, also known as split cement silo (split cement tank), is factory,modular production and processing. It has the advantages of beautiful appearance,short construction period,convenient installation, centralized transportation,trans ferable reuse after use, and not affected by site conditions. The new type of silo can be transported to the site and connected with bolts. Can be used in cement, fly ash reserves, but also can store chemical raw materials, food, feed, etc.
