Quick Details
-
Brand Name:
-
Berase
-
Model Number:
-
K-3000
-
Dimension (L x W x H):
-
483*218.5*47.5mm
-
Mould NO.:
-
K-3000
-
Application:
-
Karaoke
-
Keyword:
-
Karaoke Effect Processor
-
Custom design:
-
OEM & ODM
-
Weight:
-
3.5KG
-
Channel:
-
6 Channels
-
Warranty:
-
1 Year
-
Package size:
-
550*320*550mm
-
audio output:
-
5.1 channels
Quick Details
-
Power:
-
220V/AC
-
Frequency Range (Hz):
-
20Hz~20KHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Berase
-
Model Number:
-
K-3000
-
Dimension (L x W x H):
-
483*218.5*47.5mm
-
Mould NO.:
-
K-3000
-
Application:
-
Karaoke
-
Keyword:
-
Karaoke Effect Processor
-
Custom design:
-
OEM & ODM
-
Weight:
-
3.5KG
-
Channel:
-
6 Channels
-
Warranty:
-
1 Year
-
Package size:
-
550*320*550mm
-
audio output:
-
5.1 channels

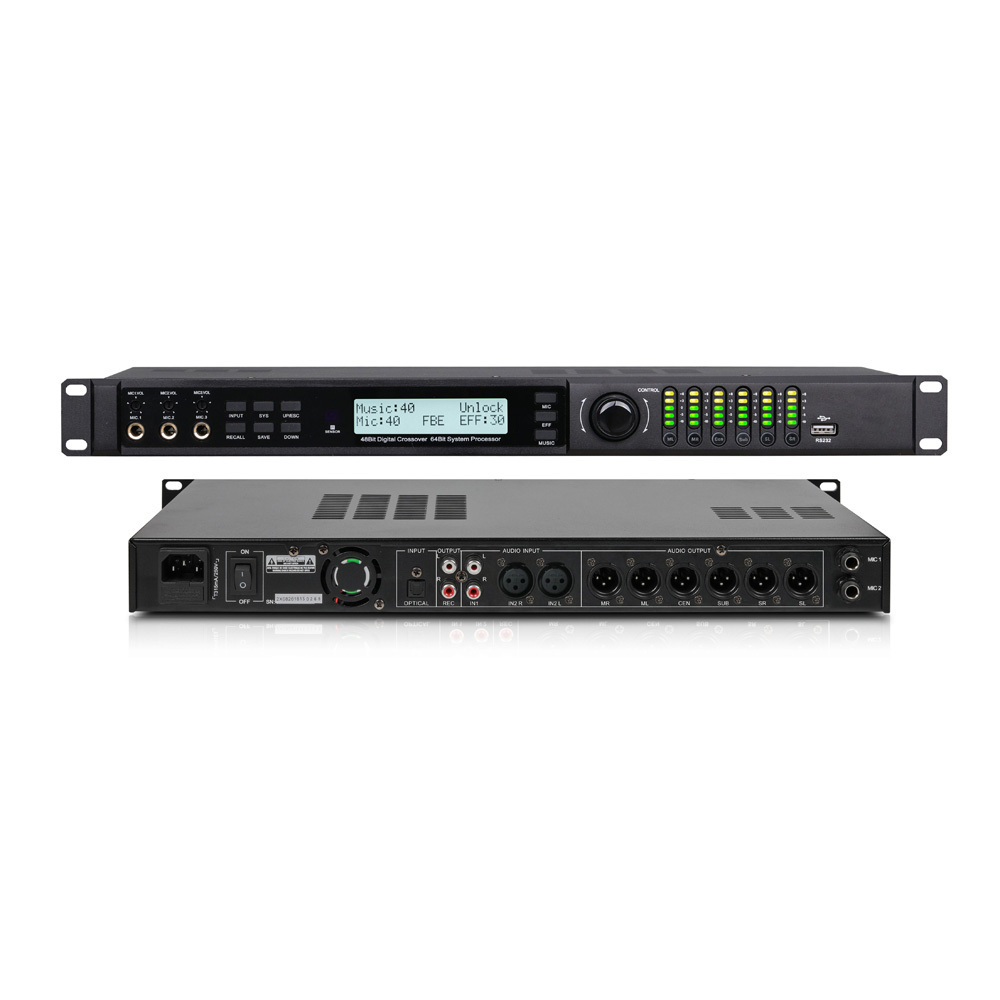

ktv karaoke system echo karaoke amplifier karaoke digital processor
Product Detail
| Brand Name | Berase |
| Mould NO. | KX-8600 |
| Application | Karaoke |
| Keyword | DSP AUDIO MIXER |
| Custom design | OEM & ODM |
| Weight | 3.5KG |
| Channel | 6 Channels |
| Warranty | 1 Year |
| Package size | 550*320*550mm |
| audio output | 5.1 channels |
Adopt the latest highest performance ADI 5 series processing chip , operating more fast and more accuracy ,sounds effect has much more improve too .
The computer software comes with a professional-grade RTA spectrum display , feedback point m ore accurate and intuitive , debugging more convenient .
Feature
Adopt ADI chip designed , 64-Bit high-speed dicaryon DSP processor
The Music channel has 9 segments PEQ stereo equalizer ,and Identify optical digital input automatically .
The microphone has 15 segments PEQ adjustment , fully digital audio process system . Stereo DSP multiple digital reverb . The vocals are more professional
Microphone mute setting . Independent compress / limit designed ; Optional 2Hz~8Hz frequency shift feedback suppression . a nd "OFF" option ed .
The effect channel has high/low pass ; Reverb and echo has 5 segments of PEQ respectively ...etc .
Each output channel has 7 segments of PEQ respectively , high/low pass adjusted , mixing ratio , polarity ,delay , compress / limit , gain function .
Support VOD IR interface controller .
Support RS232 connect to computer controller , comes with professional PC controlled software .
It has RTA frequency spectrum display , to find the feedback point effectively to cancel the hawling .
3 levels engineering password lock function , The device lock level can be set by yourself according ly.
9 Groups system mode could be save , the turn on status is the data of the one which saved by last time .
Parameter
MAX input electrical level for music : +14dBu( 4V RMS )
MAX output electrical level for output CH : +14dBu( 4V RMS )
Music gain : 0dB, +3dB , +6dB ( optional )
Microphone sensitivity : 64mV( Out : 4V )
S/N : >90dB
Power supplied : 220V/AC/50Hz
size : 483*218.5*47.5mm
Net weight : 3.5KG
