Quick Details
-
Product Name:
-

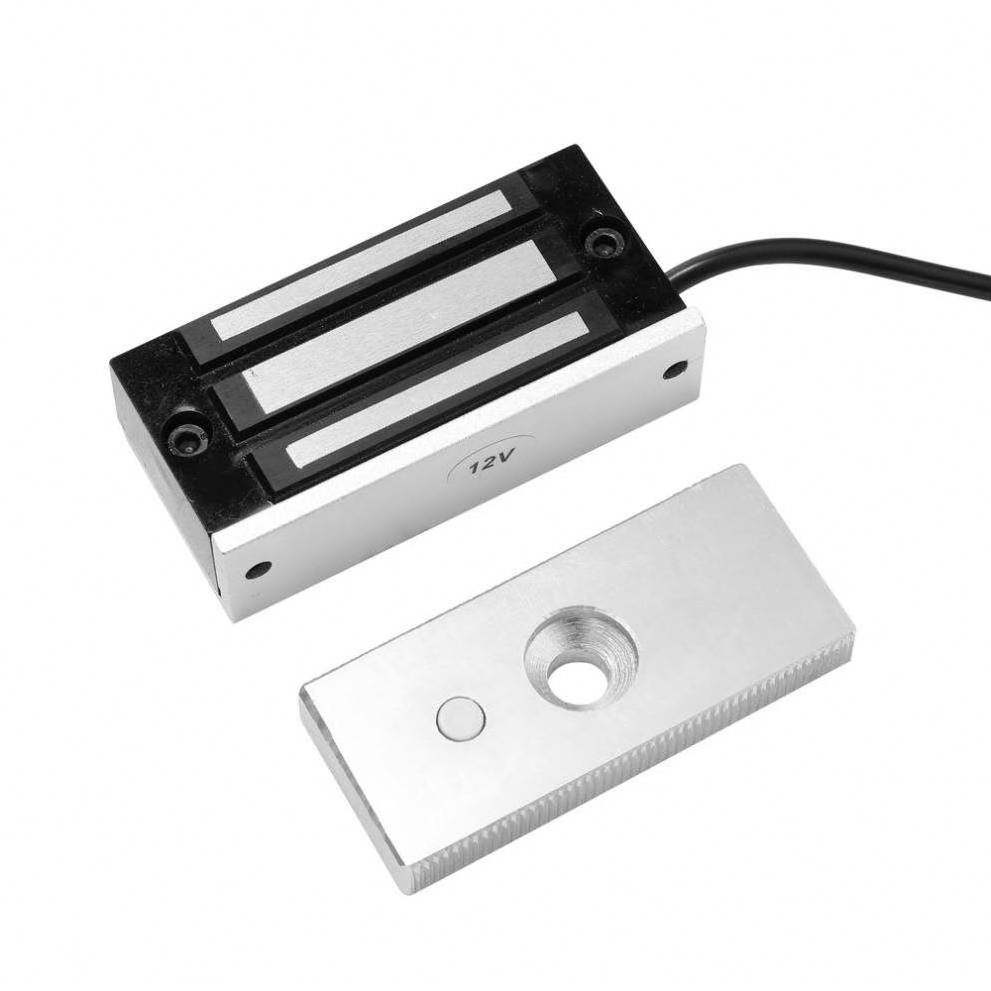

Single Door 60kg EM lock with Feedback Magnetic door lock
-
Holding force:
-
60kg/100LB
-
Voltage:
-
DC 12V
-
Current:
-
380-430mA
-
Working temperature:
-
-10 to 55 Celsius degree
-
Humidity:
-
0 to 95%
-
Working mode:
-
power-on to lock
-
Armature Plate( LxWxH):
-
80Lx24Wx9.3H(mm)
-
Finish:
-
Surface Finished
-
Material:
-
Zinc Alloy
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
Y60
-
Product Name:
-
Single Door 60kg EM lock with Feedback Magnetic door lock
-
Holding force:
-
60kg/100LB
-
Voltage:
-
DC 12V
-
Current:
-
380-430mA
-
Working temperature:
-
-10 to 55 Celsius degree
-
Humidity:
-
0 to 95%
-
Working mode:
-
power-on to lock
-
Armature Plate( LxWxH):
-
80Lx24Wx9.3H(mm)
-
Finish:
-
Surface Finished
-
Material:
-
Zinc Alloy
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Lock Size :
|
80Lx33Wx19H(mm)
|
|
|
||
|
Holding Force :
|
60kg (100Lbs)
|
|
|
||
|
Input Voltage :
|
12/24VDC Dual Voltage
|
|
|
||
|
Suitable for door:
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
|
||
|
Singal Output :
|
Lock singal Status NO/NC/COM/+/-
|
|
|
||
|
Feature:
|
Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
|
|
|
||
|
LED:
|
Red shows unlocked, Green shows locked
|
|
|
||
|
Weight:
|
0.5kgs
|
|
|
||
|
Certification:
|
CE /MA
|
|
|
||
-1.Passed 100lbs super static linear tension tests.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely, there is no mechanical failure.
6.Shell with high strength alloy material, anode hardening treatment.
7.lock body with double insulation treatment.
Detailed Images , OEM/ODM available
- Input voltage:DC12V,or DC24 (can be customized)
- Holding Force: 60Kgs(120Lbs)
- Suitable for: showcase, cabinet door etc.
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc
