Quick Details
-
Country of Origin:
-
CHINA
-
Brand:
-
OTW
-
Operating mode:
-
GPS+GLONASS+GALILEO+ BDS
-
Output Mode:
-
UART+TTL+R232
-
Baud rate:
-
4800bps-921600bps,Default9600bps
-
NMEA sentences:
-
RMC,VTG,GGA,GSA,GSV,GLL
-
Update frequency:
-
1Hz-18Hz(default 1Hz)
-
Voltage:
-
1.65V to 3.6V
-
Power consumption:
-
21 mA , @3.0V
-
Size:
-
12.2mm*16mm*2.4mm
Quick Details
-

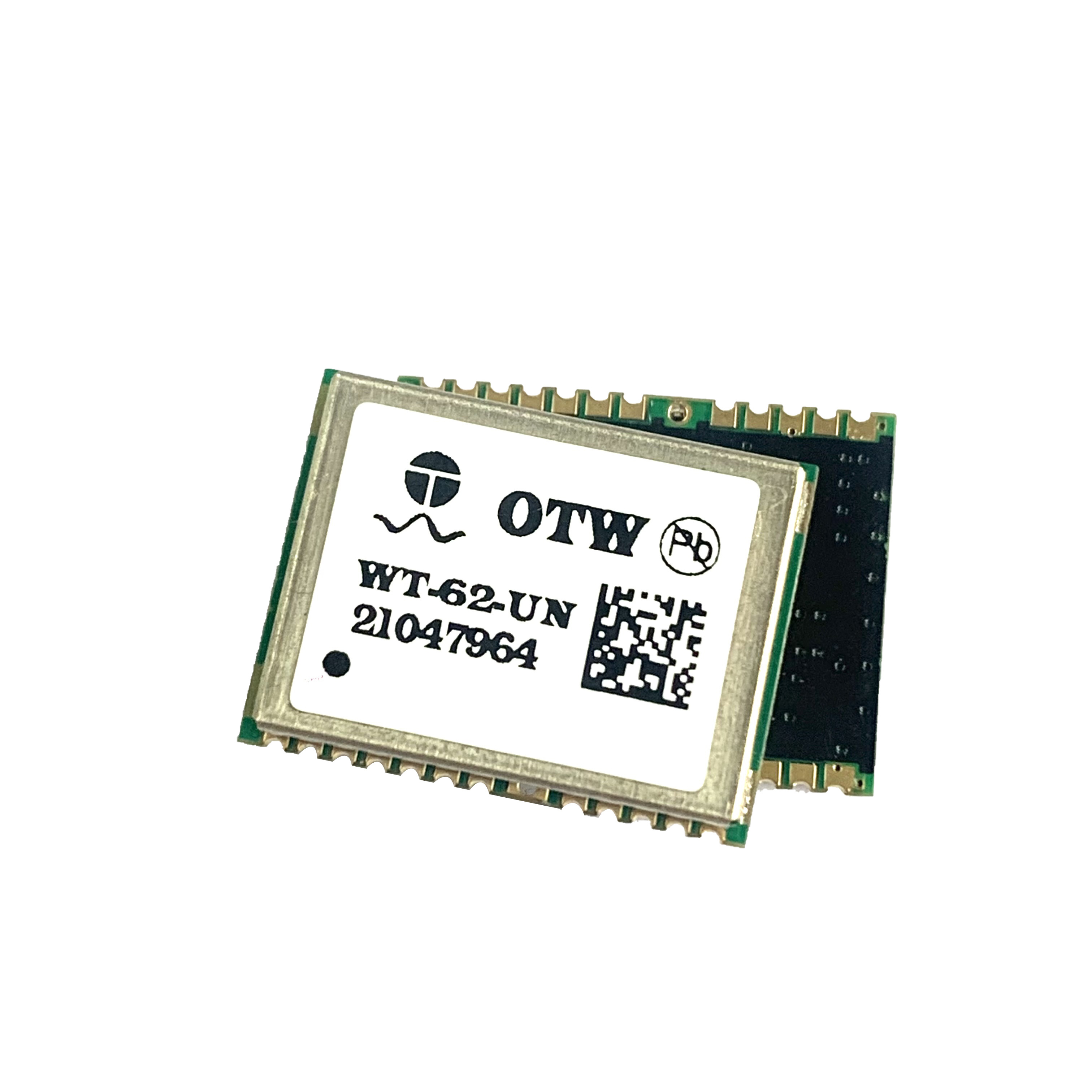

Model Number:
-
WT-62-UN
-
Chipset:
-
XX
-
Application:
-
Positioning, surveying and mapping, etc
-
Country of Origin:
-
CHINA
-
Brand:
-
OTW
-
Operating mode:
-
GPS+GLONASS+GALILEO+ BDS
-
Output Mode:
-
UART+TTL+R232
-
Baud rate:
-
4800bps-921600bps,Default9600bps
-
NMEA sentences:
-
RMC,VTG,GGA,GSA,GSV,GLL
-
Update frequency:
-
1Hz-18Hz(default 1Hz)
-
Voltage:
-
1.65V to 3.6V
-
Power consumption:
-
21 mA , @3.0V
-
Size:
-
12.2mm*16mm*2.4mm
|
Module performance
|
|
|
|
Model
|
WT-62-UN
|
|
|
Receiver type
|
GPS/QZSS :L1C/A
Galileo:E1-B/C GLONASS:L1OF BeiDou:B1| |
|
|
Agreement
|
NMEA-0183 compliant protocol or custom protocol
|
|
|
Available baud rate
|
4800bps~921600bps(default 9600bps)
|
|
|
channel
|
72
|
|
|
Sensitivity
|
Tracking: -167dbm Capture: -158dbm Cold start -148dbm
|
|
|
Cold start
|
Average 26 seconds
|
|
|
Hot start
|
Average 1 seconds
|
|
|
Accuracy
|
Horizontal Position : average, SBAS < 2.0m
|
|
|
Max Height
|
18000 m
|
|
|
Max Speed
|
515 m/s
|
|
|
Max Acceleration
|
≦ 4G
|
|
|
Regeneration frequency
|
1Hz -18 Hz
|
|
|
Port
|
|
|
|
Port
|
2 URAT
1 I2C 2 SPI |
|
|
Physical property
|
|
|
|
Type
|
24 pin stamp holes
|
|
|
Size
|
16.0mm*12.2mm*2.4mm(+/- 0.5mm)
|
|
|
Power supply
|
|
|
|
Voltage
|
1.65V~3.6V
|
|
|
Power Consume
|
Operation mode: 21 mA@3.0V, power saving mode: 5.3 mA@3.0V (PSM, 1hz)
|
|
|
Oerating Environment
|
|
|
|
Humidity range
|
5% to 95% non-condensing
|
|
|
Working Temperature
|
-40℃ to 85℃
|
|
|
Storage Temperature
|
-40℃ to 85℃
|
|
