Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Growatt
-
Model Number:
-
SPF 5000ES
-
Input Voltage:
-
48V
-
Output Voltage:
-
230V
-
Output Current:
-
80A
-
Output Frequency:
-
50/60Hz
-
Size:
-
485*330*135MM
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Weight:
-
14KG
-
Product name:
-
Off Grid Inverter
-
Battery voltage:
-
48VDC
-
RATED POWER:
-
5000VA/5000W
-
Parallel Capability:
-
6 units
-
Maximum PV Array Power:
-
5500W
-
MPPT Range @ Operating Voltage:
-
120VDC ~ 430VDC
-
Operating Temperature::
-
0°C - 55°C
-
Storage Temperature:
-
-15°C - 60°C
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97%
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Growatt
-
Model Number:
-
SPF 5000ES
-
Input Voltage:
-
48V
-
Output Voltage:
-
230V
-
Output Current:
-
80A
-
Output Frequency:
-
50/60Hz
-
Size:
-
485*330*135MM
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Weight:
-
14KG
-
Product name:
-
Off Grid Inverter
-
Battery voltage:
-
48VDC
-
RATED POWER:
-
5000VA/5000W
-
Parallel Capability:
-
6 units
-
Maximum PV Array Power:
-
5500W
-
MPPT Range @ Operating Voltage:
-
120VDC ~ 430VDC
-
Operating Temperature::
-
0°C - 55°C
-
Storage Temperature:
-
-15°C - 60°C

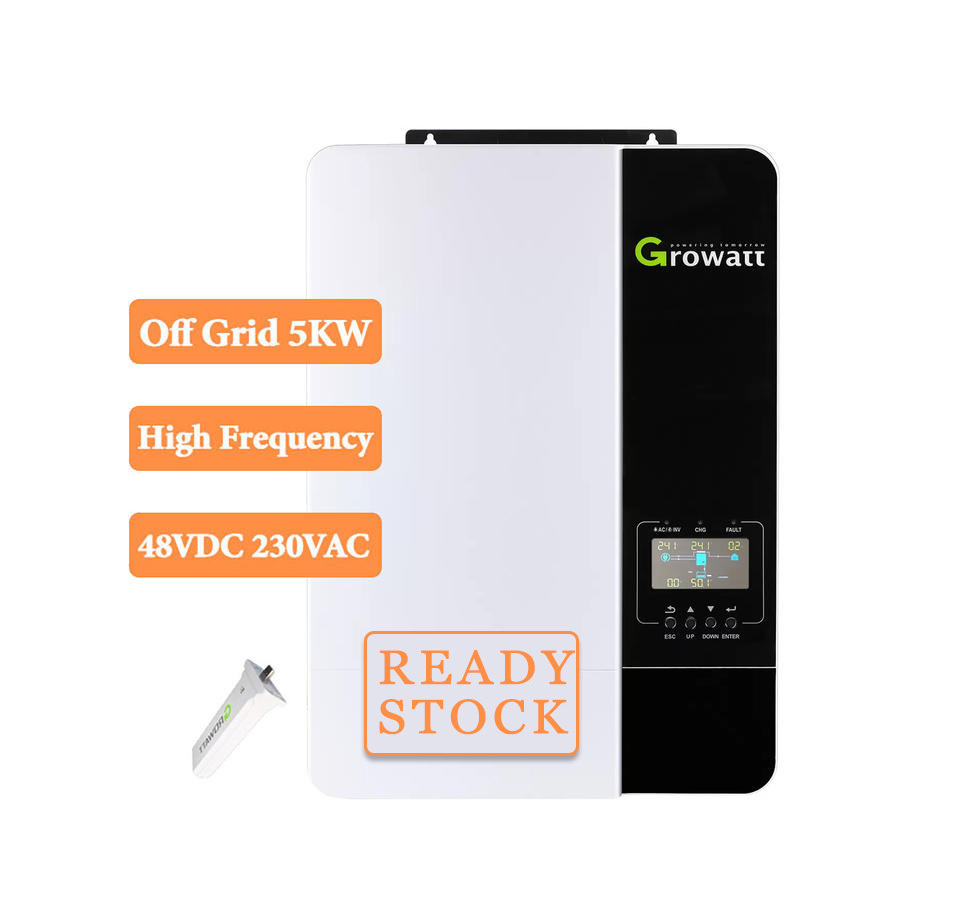

Growatt SPF 5000 ES Single Phase 48vdc 230vac Solar Power Inverter IP65 Off Grid Solar Inverter 5000w
*After-sales stations are located in more than 20 countries around the world.
Products Description
|
SPF5000ES
|
|
|
|
Battery voltage
|
48VDC
|
|
|
INVERTER OUTPUT
|
|
|
|
RATED POWER
|
5000VA/ 5000W
|
|
|
Parallel Capability
|
Yes, 6 units
|
|
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|
|
Surge Power
|
10000VA
|
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10 ms (For Personal Computers); 20 ms (For Home Appliances)
|
|
|
|
|
|
|
SOLAR CHARGER
|
|
|
|
Maximum PV Array Power
|
5500W
|
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 430VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|
|
Maximum Solar Charge Current
|
100A
|
|
|
Maximum Efficiency
|
97%
|
|
|
AC CHARGER
|
|
|
|
Charge Current
|
80A
|
|
|
AC Input Voltage
|
230 VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances) |
|
|
|
|
|
|
PHYSICAL
|
|
|
|
Dimension (D/W/H) in mm
|
485/330/135
|
|
|
Net Weight (kgs)
|
12
|
|
|
OPERATING ENVIRONMENT
|
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
0°C - 55°C
|
|
|
Storage Temperature
|
-15°C - 60°C
|
|
Parallel operation with up to 6 units only for 4/5KVA,the maximum system output up to 30KW,and also can be set to a three-phase system
Remote monitoring
Product Application
Product packaging
Production Process
Xiamen Kseng Metal Tech Co., Ltd is a national high-tech enterprise with independent intellectual property rights. Annual production capacity can reach 3GW. Headquartered in beautiful coastal city Xiamen, China, the company has branches and offices in Hong Kong S.A.R, Australia, Malaysia, Japan, South Korea, Vietnam and other countries and regions.With support of a professional team, the company provides its clients with safe, reliable,stable and efficient solutions for the solar photovoltaic power station. It focuses on core businesses like solar system,solar Inverter and cleaning equipment, PV mounting and related accessories, PV power plant construction business and so on.
