Quick Details
-
Thickness:
-
1'',2'',4''
-
Dot Spot Effciency:
-
30-35%
-
Arrestance:
-
90-94%
-
Outer Frame:
-
Paper,Galvanized steel,Aluminum and Stainless Steel
-
Support Grid:
-
Anticorrosion metal support grid/Radial wedge pleats
-
The maximum continuous use temperature:
-
40℃
-
Instant highest humidity:
-
98%RH(No condensation state)
-
Application:
-
Train and subway
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Name:
-
Air filter
-
Media:
-
Nonwoven cotton and synthetic fibers
-
Thickness:
-
1'',2'',4''
-
Dot Spot Effciency:
-
30-35%
-
Arrestance:
-
90-94%
-
Outer Frame:
-
Paper,Galvanized steel,Aluminum and Stainless Steel
-
Support Grid:
-
Anticorrosion metal support grid/Radial wedge pleats
-
The maximum continuous use temperature:
-
40℃
-
Instant highest humidity:
-
98%RH(No condensation state)
-
Application:
-
Train and subway

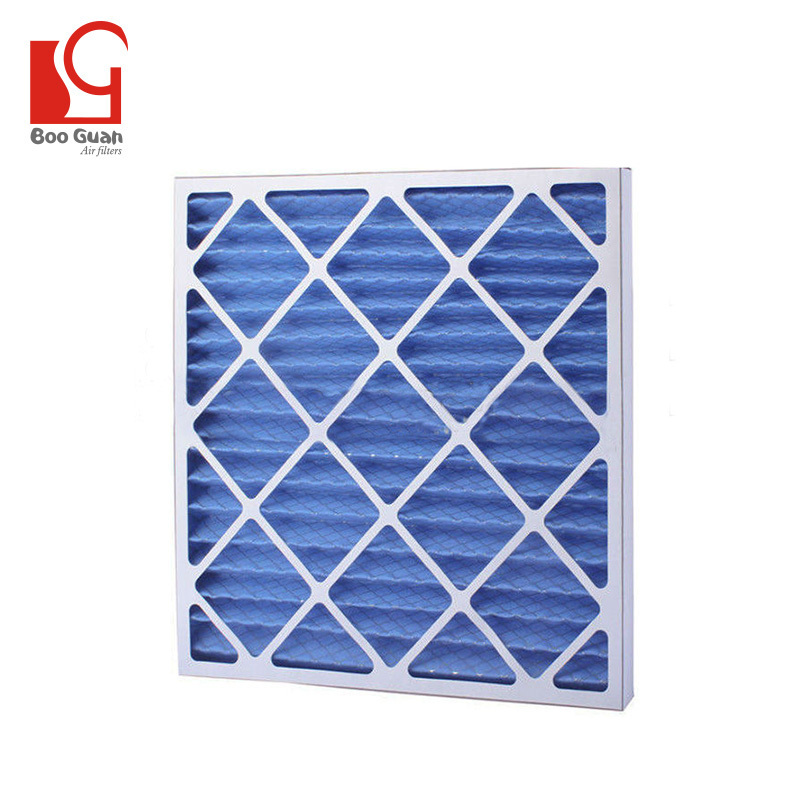

20x20 Air pre filter synthetic fiber g4 pleated paper air filter
|
Dot Spot Efficiency (in NBS) |
Arrestance (in AFI) |
Nominal Size (W*H*D) (inch) |
Actual Size
(mm) |
Rated Capacity (CMH) |
Initial Resistance | Final Resistance |
| 30-35 | 90-94 | 12*24*1 | 289*595*22 | 1700 | 87 | 130 |
| 16*25*1 | 390*619*22 | 2380 | ||||
| 20*20*1 | 492*492*22 | 2380 | ||||
| 20*24*1 | 492*592*22 | 2800 | ||||
| 24*24*1 | 595*595*22 | 3400 | ||||
| 12*24*2 | 289*595*45 | 1700 | 65 | 130 | ||
| 20*20*2 | 492*492*45 | 2380 | ||||
| 20*24*2 | 492*595*45 | 2800 | ||||
| 24*24*2 | 595*595*45 | 3400 | ||||
| 12*24*4 | 289*595*95 | 1700 | 50 | 130 | ||
| 24*24*4 | 595*595*95 | 3400 |
