Tiange wooden sound-absorbing ceiling and wall acoustic 3d model design sound proof wall mdf soundproofing wood panels
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Sports Venues
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tiange
-
Model Number:
-
Acoustic Panels
-
Type:
-
Acoustic Panels
-
thickness:
-
12 mm, 15 mm, 18 mm
-
standard model:
-
2 strips 1 groove , 4 strips 3 grooves , 8 strips 7 grooves
-
standard length:
-
2440 mm
-
standard width:
-
133 mm
-
material:
-
MDF
-
finish:
-
melamine,veneer, metal,paint,anti-fire plate
-
grade:
-
A
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Sports Venues
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tiange
-
Model Number:
-
Acoustic Panels
-
Type:
-
Acoustic Panels
-
thickness:
-
12 mm, 15 mm, 18 mm
-
standard model:
-
2 strips 1 groove , 4 strips 3 grooves , 8 strips 7 grooves
-
standard length:
-
2440 mm
-
standard width:
-
133 mm
-
material:
-
MDF
-
finish:
-
melamine,veneer, metal,paint,anti-fire plate
-
grade:
-
A

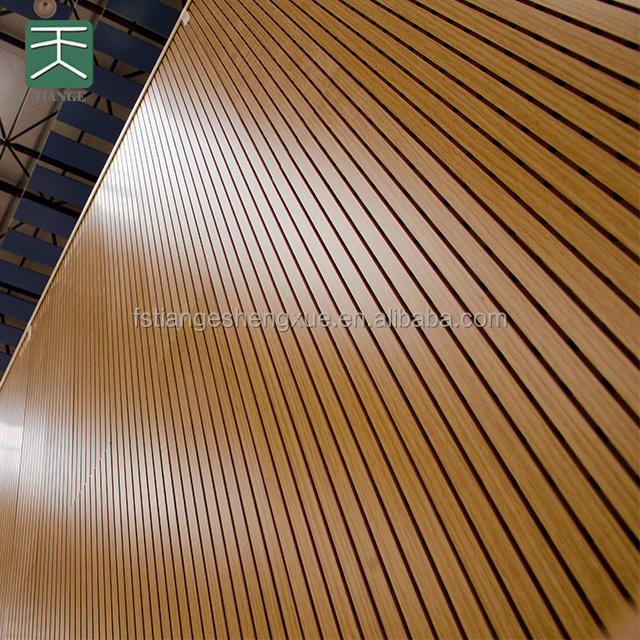

The Grooved Wooden Acoustic Panel is made of high quality MDF board. According to the customer’s acoustic and decoration requirement.
Our Grooved wooden acoustic panel can equipped with outstanding environmental, flame retardant and waterproof function, even can with various colors and finish choices.
Each Grooved wooden acoustic panel is handmade, which not only enhances the sense of decoration visually, but also creates a quieter and more comfortable environment. The products use environmentally friendly materials and are certified by authoritative organizations.
The Product Advantages of grooved wood acoustic panel
1.Stable product quality and zero complaints
2.The sound absorption effect is good, and the decoration is strong.
3.Environmentally friendly and fireproof
4.Wide range of applications:Various places with high acoustic requirements
| Product Type | Grooved Wooden Acoustic Panel | ||||||
| Product structure | Slotted and perforated on Mgo board,with sound-absorbing black fireproof felt behind | ||||||
| Standard Model | 59/5 60/4 28/4 29/3 13/3 14/2 | ||||||
| Non-Standard Model | 40/3 38.5/4 18/3 17/4 8/3 8/2 5/3 6/2 | ||||||
| Basic Material | MDF board, environmental protection board, flame retardant board, black MgO board, white MgO board, red MgO board,carbon fiber board, solid wood board etc. | ||||||
| Finish | Any veneer veneer/fireproof board veneer/melamine veneer | ||||||
| Color | Color chart or customized | ||||||
| Size | 133*2440 mm / 197*2440 mm(Allowable tolerance:lenght+-2mm;wide:+-1mm) | ||||||
| Thickness | 12mm / 15mm / 18mm(Allowable tolerance:+-0.2mm) | ||||||
| Feature | High fire-proof level,good pressure resistance,moisture-proof,mildew proof,and no deformation | ||||||
| Application | Gymnasium ,Meerting room,multi-function hall, auditorium,Conference room, Banquet hall,etc. | ||||||
| Service |
1.Support Oem&Odm service
2.Provide acoustic product design services 3.One-stop acoustic environment overall solution,including:Engineering design, product manufacturing and engineering installation |
||||||
If you have any questions, please click on this text to consult us.
In addition to the product specifications shown above, we have many other specifications, and our factory also supports the customization of special specifications.
If you have any questions, please click this text to consult u
s
!
Application place: Gymnasium, Meeting room, Multi-Function hall, Auditorium, Conference room, Banquet hall, etc.
