Quick Details
-
Dimension(L*W*H):
-
Depends on boiler capacity
-
Weight:
-
Depends on boiler capacity
-
Product name:
-
DZL coal-fired steam industrial boiler
-
Design fuel:
-
Biomass
-
Application:
-
Hospital
-
Keywords:
-
Automatic Efficient
-
Applicable Fuel:
-
Biomass Chips
-
Material:
-
Special steel plate for boiler
-
Certification:
-
ISO9001
-
Application Field:
-
Building Materials
-
Thermal efficiency:
-
83-84%
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Core Components:
-
Three-way valve, fan, pump, air pressure switch
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGDE
-
Dimension(L*W*H):
-
Depends on boiler capacity
-
Weight:
-
Depends on boiler capacity
-
Product name:
-
DZL coal-fired steam industrial boiler
-
Design fuel:
-
Biomass
-
Application:
-
Hospital
-
Keywords:
-
Automatic Efficient
-
Applicable Fuel:
-
Biomass Chips
-
Material:
-
Special steel plate for boiler
-
Certification:
-
ISO9001
-
Application Field:
-
Building Materials
-
Thermal efficiency:
-
83-84%
-
Marketing Type:
-
Ordinary Product

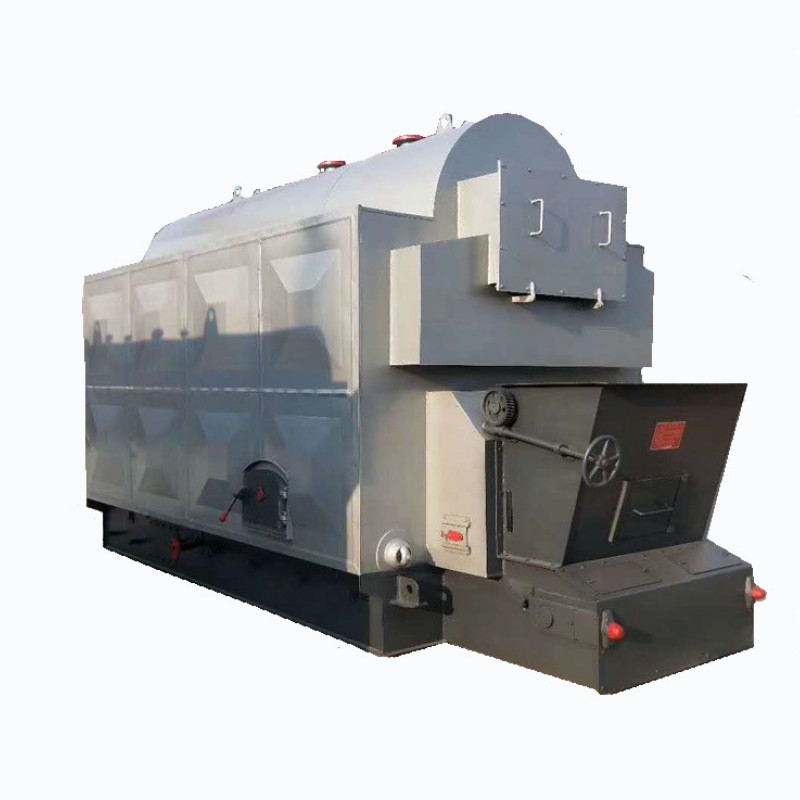

Henan Province Zhongde 20 tons Wood Pellet Biomass Fired Steam Boiler
DZL Coal Biomass steam(Hot Water) Boiler is energy saving and compact structure, the pressure raise up quickly. DZL series Biomass Hot Water Boiler is single drum horizontal type shell boiler, the combustion equipment is chain grate , has the advantages of feed mechanically and strong adaptability of different fuels. The fuel could be wood chips, rice hull, bagasse, straw, peanut shell, mustard stalk, cotton stalk, coconut shell, and waste cloth, etc. Biomass particle diameter should be 6-10 mm, length should be 25-50mm, and water content should be less than 15%. The source of solid biomass fired hot water boiler fuel is widespread, it is renewable green energy with the advantages of low cost, environmental friendly (sulfur content<0.06%, and zero CO2 emission), energy saving, and high combustion efficiency (>90%).
Product Details
Product specification
|
Boiler model
|
DZL1-0.7-T、DZL1-1.0-T、DZL1-1.25-T
|
DZL2-0.7-T、DZL2-1.0-T、DZL2-1.25-T
|
DZL4-1.25-T、DZL4-1.6-T
|
DZL6-1.25-T、DZL6-1.6-T
|
DZL8-1.25-T、DZL8-1.6-T
|
DZL10-1.25-T、DZL10-1.6-T（Up and down assembly）
|
|
Rated evaporation(t/h)
|
1
|
2
|
4
|
6
|
8
|
10
|
|
Rated steam pressure(MPa)
|
0.7/1.0/1.25
|
0.7/1.0/1.25
|
1.25/1.6
|
1.25/1.6
|
1.25/1.6
|
1.25/1.6
|
|
Rated steam temperature(℃)
|
170/184/194
|
170/184/194
|
194/204
|
194/204
|
194/204
|
194/204
|
|
Maximum shipping weight（t）
|
17
|
23
|
25
|
35
|
45
|
33（Upper part）28（Lower part）
|
|
Length×width×height（mm）
|
5.1×2.2×3
|
5.5×2.3×3.3
|
6.6×2.6×3.6
|
8.2×2.9×3.8
|
8.1×3.1×3.8
|
7.7×3.2×3.6（Upper part）8.6×3.0×2.6（Lower part）
|
Application
DZL steam boiler has high heating temperature, low working pressure, energy saving, and can be widely used in various industrial heating processes. Such as petrochemical industry, synthetic fiber industry, textile printing and dyeing, plastic rubber, paper industry, wood industry, building materials, machinery industry, food industry, electrical equipment, coking industry, metal and foundry industry, detergent industry, fat and coating industry, carbon Su industry.
Boiler case
Packing and shipping
Selling Units:Single item
Package Type:customized
Single package size: Depends on the capacity
Single gross weight:Depends on the capacity
Our survice
Pre-sale service:
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.Provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
