Quick Details
-
No-Load Speed:
-
2800rpm
-
Disc(Wheel) Type:
-
Grinding Disc
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Model Number:
-
MR-600F
-
Rated Voltage:
-
As customer request
-
Frequency:
-
50HZ/60HZ
-
Dimensions:
-
700x630x630mm
-
Weight:
-
175/200KGS
-
Worktable Diameter:
-
300mm
-
Worktable longitudinal travel:
-
300mm
-
Worktable cross travel:
-
150mm
-
Worktable area:
-
130x550mm
-
Center height:
-
125mm
-
Rotating Angle of Wheel head:
-
360°
-
Grinding wheel size:
-
125x50x32mm
-
Power/Speed:
-
2800rpm
Quick Details
-
Type:
-
Bench Grinder
-
Variable Speed:
-
NO
-
Rated Input Power:
-
0.75HP
-
No-Load Speed:
-
2800rpm
-
Disc(Wheel) Type:
-
Grinding Disc
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Model Number:
-
MR-600F
-
Rated Voltage:
-
As customer request
-
Frequency:
-
50HZ/60HZ
-
Dimensions:
-
700x630x630mm
-
Weight:
-
175/200KGS
-
Worktable Diameter:
-
300mm
-
Worktable longitudinal travel:
-
300mm
-
Worktable cross travel:
-
150mm
-
Worktable area:
-
130x550mm
-
Center height:
-
125mm
-
Rotating Angle of Wheel head:
-
360°
-
Grinding wheel size:
-
125x50x32mm
-
Power/Speed:
-
2800rpm

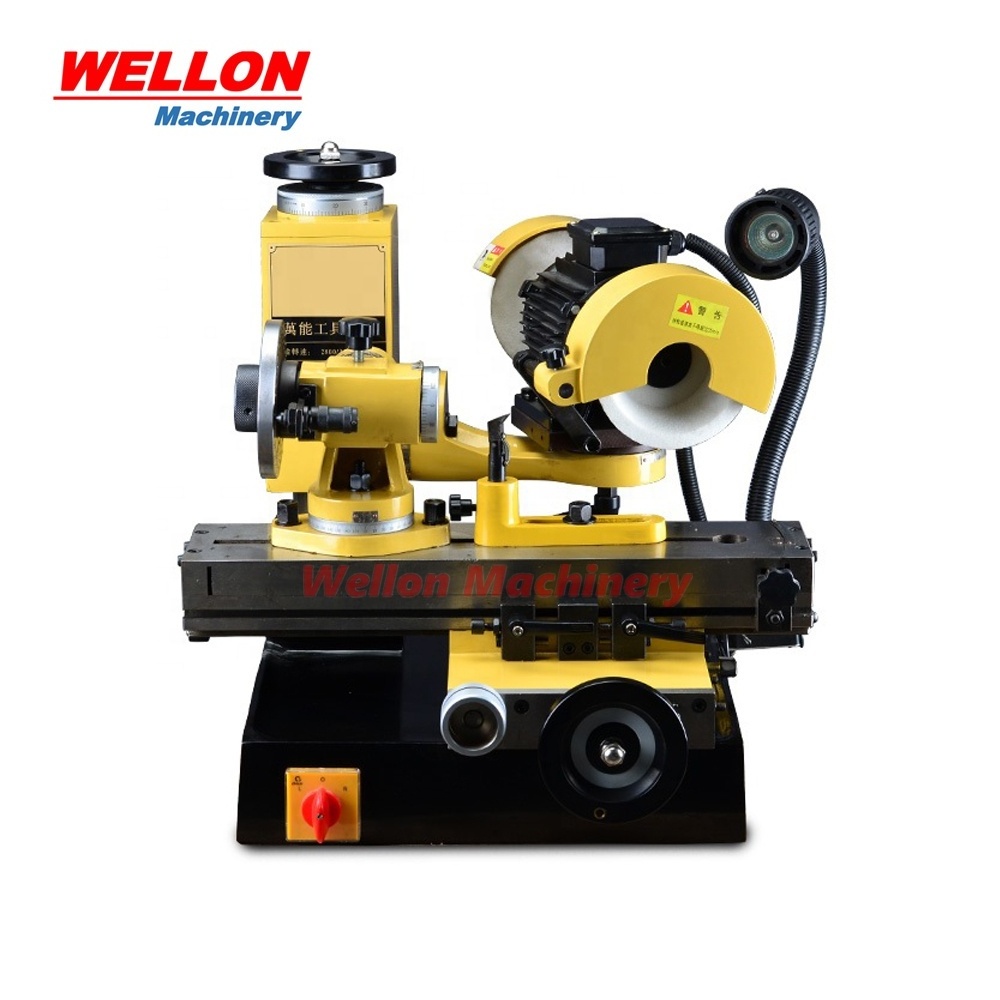

Features:
The working table uses high precision straight line roiling guide rails,good back and forth movement, high stability, steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper cutters,etc.
Technical Paramter :
|
Model |
MR-600 F |
|
About worktable Diameter |
300mm |
|
About worktable longitudinal travel |
30 0mm |
|
About worktable cross travel |
150mm |
|
Worktable area |
130×5 5 0mm |
|
Center height |
125mm |
|
Rotating Angle of Wheel head |
360° |
|
Grinding wheel size |
125×50×32mm |
|
Power/Speed |
2800 RPM |
|
Motor |
3/4HP 220V/380V |
|
Dimension |
700×630×630mm |
|
Weight |
175kg/16 5 kg |
|
Standard Equipment |
50C, 50H can grind slot miller,face and side cutter,lathe tool ,hobbing cutter,reamer bit etc. |
|
Option Equipment |
50E grind spiral milling cutter ball end mill,R type lathe tool,graver and other taper milling cutter. 50K can grind drill bit ,screw tap,side mill,round bar and so on. 50D can grind end mill ,side mill and so on. 50B stand base 50J thimble |
