Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DAYTOP
-
Item Name:
-
RV Boat Trailer Torsion Bar Trailer Axles for Sale
-
Load Capacity (Ton):
-
1, 2, 3, 5, 6, 8 ton...
-
Material:
-
Steel
-
Studs:
-
4 Bolts, 5 Bolts, 6 Bolts, 8 Bolts
-
Track:
-
1200, 1400, 1500, 1600, 1650 or customized as requested
-
Axle Beam:
-
Round, Square
-
ABS Brake System:
-
With/Without
-
Surface treatment:
-
Painted, Galvanized
-
Type:
-
Welding
-
Package:
-
Pallet
Quick Details
-
OE NO.:
-
light duty axle
-
Max Payload:
-
20 TON
-
Size:
-
TRACK CUSTOMIZED
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DAYTOP
-
Item Name:
-
RV Boat Trailer Torsion Bar Trailer Axles for Sale
-
Load Capacity (Ton):
-
1, 2, 3, 5, 6, 8 ton...
-
Material:
-
Steel
-
Studs:
-
4 Bolts, 5 Bolts, 6 Bolts, 8 Bolts
-
Track:
-
1200, 1400, 1500, 1600, 1650 or customized as requested
-
Axle Beam:
-
Round, Square
-
ABS Brake System:
-
With/Without
-
Surface treatment:
-
Painted, Galvanized
-
Type:
-
Welding
-
Package:
-
Pallet

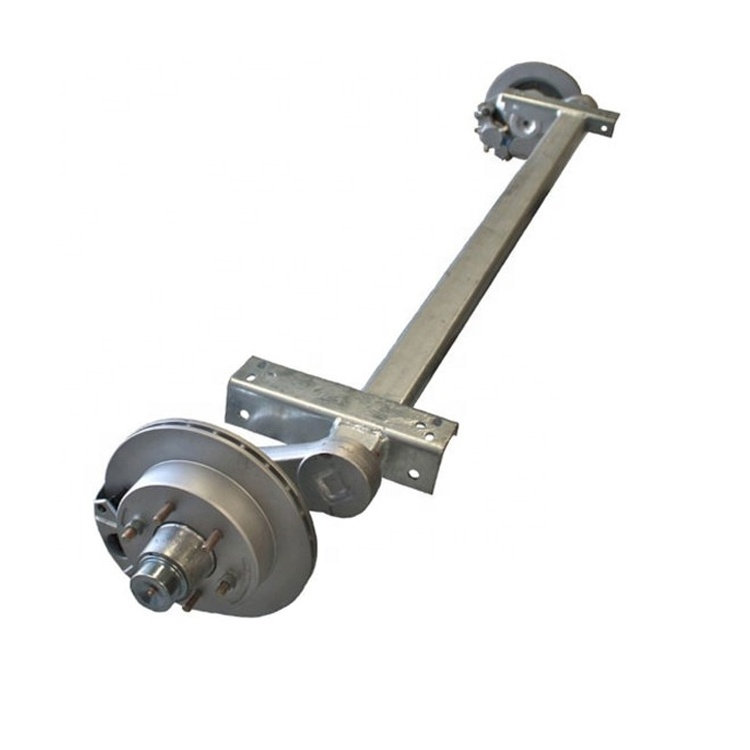

Leaf Spring Trailer 1.5t Half Torsion Axle for RV Boat Trailer Torsion Bar Trailer Axles for Sale
Product Description
| Type | M Load Capacity | Total Length (mm) |
Idler Hub/ Bolt Hub |
Tube Sie | Axle Shape | Spindle Size | Hub Fae/Spring Center |
| USA Models | 2000 LB | Customized | 4x4",5x4.5" | 1x3/4" |
Round |
1", 1-1/16" |
61"/46" |
| 3500 LB | Customized |
5x4.5”
5x4.75”
5x 5”
5x5.5”
6x5.5”
|
2-3/8” |
Round |
1-3/8x 1-1/16” |
73/58" 85/70” 89/74” 95/80” |
|
| 5200 LB | Customized | 6x5.5" | 3" | Round | 1-3/4" x 1-1/4" | 73/58”85/70” 89/74”95/80” | |
| 7000 LB | Customized | 8x6.5" | 3" | Round | 1-3/4" x 1-1/4" |
73/58”
85/70”
89/74”
95/80”
|
|
| 8000 LB | Customized | 8 x 6.5" | 3-1/2" | Round | 1-3/4" x 1-1/4" | 73/58” 85/70” 89/74”95/80” | |
| Type | Load Capacity | Track Length (mm) | Bolt Pattern | Alxe Size | Axle Shape | Bearing | |
| Australia Type | 750 KG | Customized |
4x100mm
5x100mm
|
39 mm | Round | LM Parallel | |
| 1000 - 1200 KG | Customized |
4x4”
5x4.25”
5x4.5”
|
45 mm | Round | Slimline | ||
| 1450 - 1600 KG | Customized |
4x139.7mm
5x4.25
5x4.5”
5x4.5”
5x150mm
6x139.7mm
|
50 mm | Round |
LM
Slimline
|
||
| 2500 KG | Customized |
5x5.5”
5x150mm
6x139.7mm
|
65 mm | Round | 2.0 Tonne | ||
| 3500 KG | Customized |
5x 150mm
6 x 139.7mm
6 x 205mm
|
75 mm | Round | 3.0 Tonne |
The Track can be customized according to customer requirements
