Quick Details
-
Brand Name:
-
AYNUO
-
Color:
-
Silver
-
Sze:
-
M16x1.5-10
-
Air Flow Rate:
-
1500ml/min/cm²@ 7 Kpa
-
Water Entry Pressure:
-
>60KPa dwell 30 sec
-
Moisture Vapor Transmission Capacity:
-
>5000 g/m²/24h
-
IP Rating:
-
IP 68/69K
-
Oleophobic Grade:
-
Grade 7
-
Standard or Nonstandard:
-
Standard
Quick Details
-
Port Size:
-
M16*1.5
-
Place of Origin:
-
Kunshan, Jiangsu, China
-
Model Number:
-
AYN-LWVV_SS_M16x1.5-10_E20WO-E
-
Brand Name:
-
AYNUO
-
Color:
-
Silver
-
Sze:
-
M16x1.5-10
-
Air Flow Rate:
-
1500ml/min/cm²@ 7 Kpa
-
Water Entry Pressure:
-
>60KPa dwell 30 sec
-
Moisture Vapor Transmission Capacity:
-
>5000 g/m²/24h
-
IP Rating:
-
IP 68/69K
-
Oleophobic Grade:
-
Grade 7
-
Standard or Nonstandard:
-
Standard
Product display


Product Paramenters


Products Name
|
Color
|
Air Permeability
|
WEP
|
Membrane Surface Property
|
AYN-LWVV_SS_M16x1.5-10_TB20WO-E
|
Silver
|
1500 ml/min@7kpa
|
60KPa
|
Oleophobic & Hydrophobic
|
Product details
AYNUO

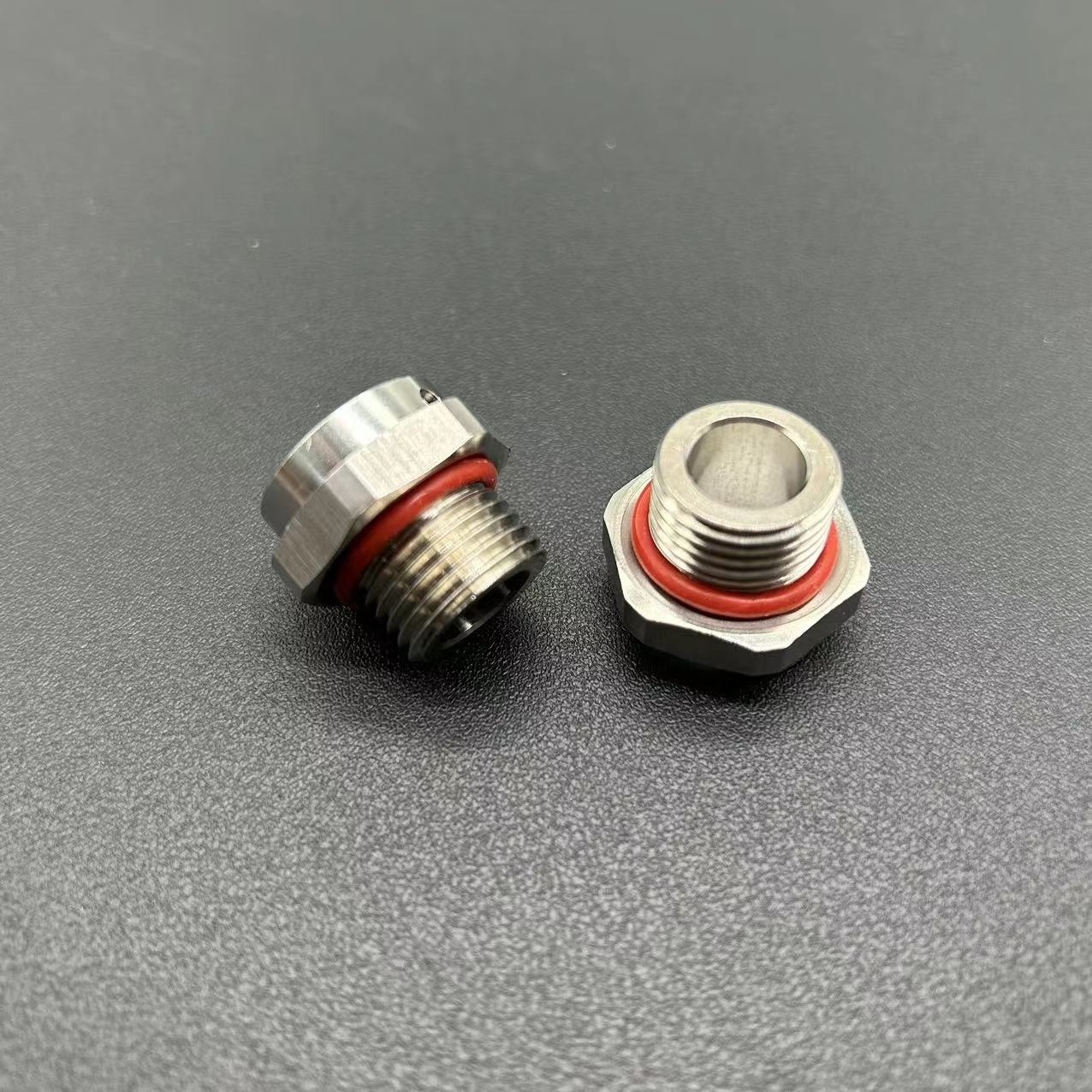

Screw-In Vent Valve effectively equalize pressure and reduce condensation in sealed enclosures, while keeping out solid and liquid contaminants.
AYNUO
Screw-In
Vent Valve is used to protect Automotive sensitive control units, sensors/actuators, motors
and hybrid/electric component.
and hybrid/electric component.
AYNUO
Screw-In
Vent Valve effectively equalize pressure and reduce condensation in sealed enclosures, while keeping out solid and liquid contaminants.
