baseball making machine/brand new lathe machines/carpentry lathe machine
baseball making machine/brand new lathe machines/carpentry lathe machine
baseball making machine/brand new lathe machines/carpentry lathe machine
baseball making machine/brand new lathe machines/carpentry lathe machine
baseball making machine/brand new lathe machines/carpentry lathe machine
baseball making machine/brand new lathe machines/carpentry lathe machine
baseball making machine/brand new lathe machines/carpentry lathe machine
baseball making machine/brand new lathe machines/carpentry lathe machine

baseball making machine/brand new lathe machines/carpentry lathe machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $8800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Motor:
Stepper moter
Max processing dia:
300mm
Certificate:
CE ISO
Brand name:
Cosen
Power(W):
4000
Model:
CNC315K

Quick Details

Place of Origin:
China
product name:
mutifuntional carpenter wood turning lathe for turning pavilion column
Control system:
cnc
Motor:
Stepper moter
Max processing dia:
300mm
Certificate:
CE ISO
Brand name:
Cosen
Power(W):
4000
Model:
CNC315K

Single spindle double cutte rs CNC woodworking lathe

Product details

1.Specfication

According the requirement and characteristics of woodworking industry, CNC woodworking lathe combining CNC and other mechanical technology, could process the complex shape of the wood rotary products or semi-finished wood products. , such as staircase column,cylindrical, conical, curved, spherical etc. It is especially suitable for the mass production of small or medium-scale wood enterprises, set shape flexibly and changing processing style rapidly.

2 . Applications:

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.

3.Brand Marks:

COSEN CNC ® - The first brand of CNC Woodworking Lathe in China and Multifunctional Wood Lathe manufacturing expert symbol for the diversified market requirement . we focus on the high technic and quality for the

COSEN C NC ® brand rely on the Chinese sole Wood Lathe Research Institute of COSEN. Nowadays,we have established lots of service network statio n across the country through decade of years effort

4.Main features

(1) The machine has 2 cutters (The Rough turning cutter and finish turning cutter work synchronously with layered process ) and so that improve the efficiency and workpiece surface quality.

(2) Adopt Germany ball screw and taiwan PMI helical square rail with high transmitting precision and longevity. Bid module helical/diagonal rack. high precision and durable.

It is heavy-duty and heavy weight with good stability,avoid shaking when the spindle rotates fast or the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.

(4) Easy operation, we can draw by Coredraw,Artcam,autoCAD and other softwares, and the control directly by the CNC cabinet computer (Industrial PC configuration) or transfer the files to machine by a USB (DSP handle configuration).

(5) High accuracy stepper motor, after program calculating, guarantee the exact processing size.

5.Parameters

Model CNC315S/K/W CNC415S/K/W CNC425S/K/W
Max Processing Size 1500x300mm 1500x400mm 2500x400mm
Spindle Power 4kw 4kw 5kw
Quantity of Spindle 1 1 1
Quantity of Tools 2 2 2
Max Feed Speed 35mm/s 35mm/s 35mm/s
Spindle Speed 0-3500rpm 0-3500rpm 0-3500rpm
Accuracy 0.001mm 0.001mm 0.001mm
Control System CNC,PC+12"LCD Or DSP CNC,PC+12"LCD Or DSP CNC,PC+12"LCD Or DSP
Support Command International  G Code International G Code International G Code
Software Coreldraw,Artcam,Type3,Ucancam,Caxa,UG,Mastercam,AutoCAD
Voltage 380V/50HC 380V/50HC 380V/50HC
Machine Dimension 2750x1200x1300mm 2750x1300x1400mm 3750x1300x1400mm
Weight 1500kgs 1500kgs 2000kgs

Lathe Model Index:

Classified By Function:

(1). Double Cutters Series:

CNC315S, CNC415S, CNC425S - Turning Only.

(2). Double Cutters + MFL™ (Multi-Function Lathe) Series:

CNC315K, CNC415K, CNC425K  - Cylinder Engraving

(3). Double Cutters + MFL™ (Multi-Function Lathe) Series:

CNC315W, CNC415W, CNC425W  - Cylinde + Plane Engraving

(COSEN MFL™ - Turning+Milling+Twisting line+Hollowout+Engraving all-in-one CNC lathe- Patented Product )

Classified By Max Process Sizes:

(1 ). 315 Series: CNC315S, CNC315K, CNC315W -  Max Process Length 1500mm * DIA Φ300mm

(2). 415 Series: CNC415S, CNC415K, CNC415W  - Max Process Length 1500mm * DIA Φ400mm

(3). 425 Series: CNC425S, CNC425K, CNC425W  - Max Process Length 2500mm * DIA Φ 400mm

( For special type size requirements, need to custom-made)

6.Warranty:

(1). The engineers of the original factory are available to do all kinds of

the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after-sale service in time and professionally .

(2). we also  offer 24 hours heart to heart service on-line or mobile .

(3). Your technologists could attend the training in our factory and on-line which be free of chaege

(4). The warrantyof CNC lathe  is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.

(5). We offer you best agent price and distributer price for our further cooperation  .

(6). we can offer special custom-made according to your request.

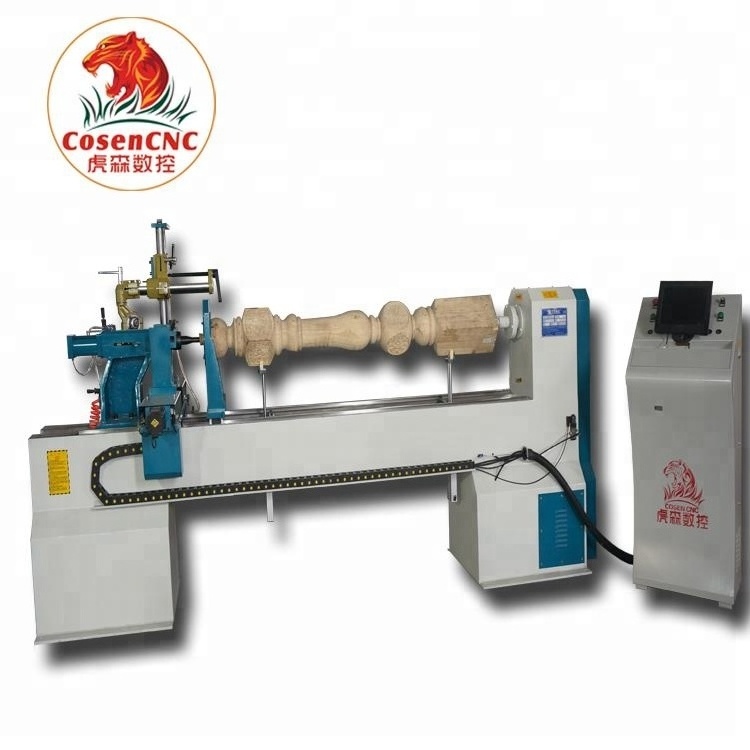

7.Pictures of the lathe

Packing & shipping

Our customers

Company information

If you are interested in our any products, please do not hesitate to contact us.

For offer the exactly quotation timely. Please tell us more questions with RFQ as below:

(1). Where's the working area? Such as Country or end-user place.

(2). What kind of work do you want to do? Such as cutting column or engraving panel.

(3). What's the workpiece material you want to process? Such as the wood species and the stock thickness you want to process.

(4). What's the sample do you want to engrave or cut? Such as sample name or pictures

We also welcome you to our factory for visiting,and the visiting lines as below:

Factory exact address:

Sujia Industrial Area, Huanghe 4th Rd.,Binzhou City,Shandong Province,China.

(1). By air to BEIJING International Airport, JINAN or QINGDAO Airport of Shandong,China

(2). By high-speed train to ZIBO or JINAN Railway station of Shandong Province,China.
