Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
HIG
-
Model Number:
-
241
-
surface:
-
galvanized, black
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Reducing
-
Head Code:
-
Hexagon
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
HIG
-
Model Number:
-
241
-
surface:
-
galvanized, black

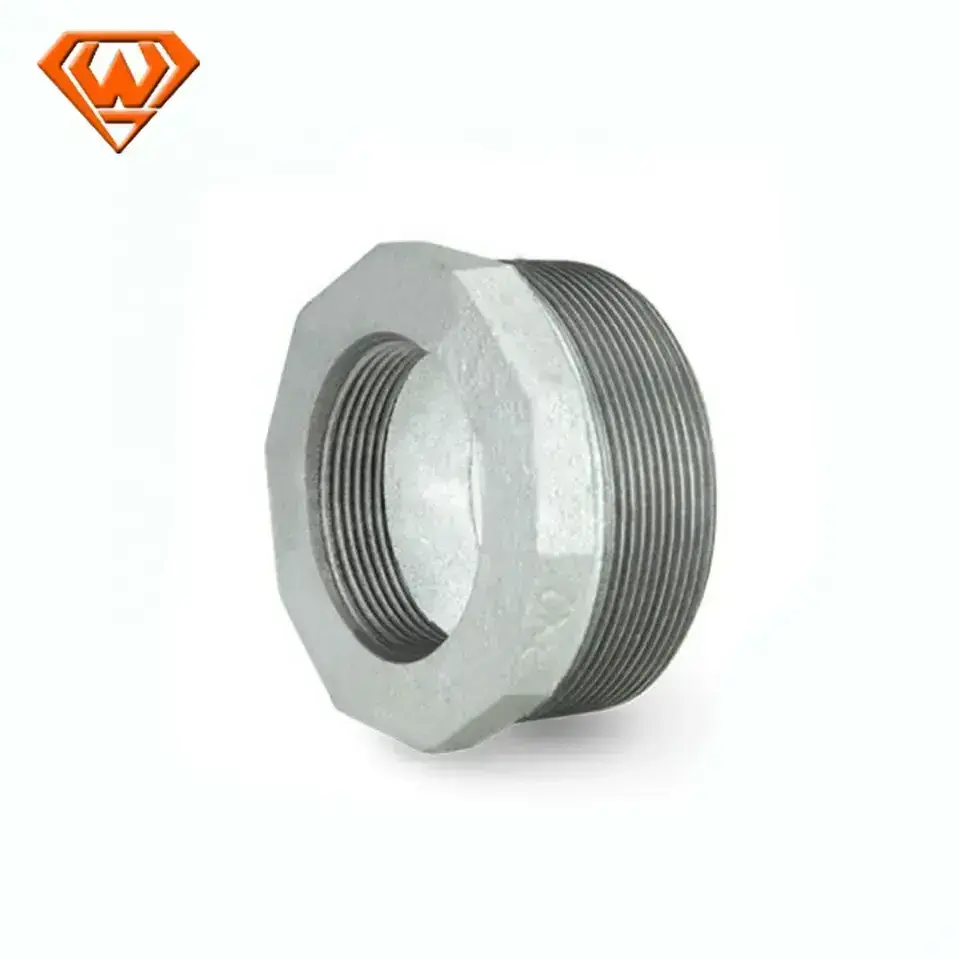

| Malleable Iron Pipe Fittings Details | ||
| Material | Black heart malleable iron | |
| American Standard | Threads : ANSI B1.20.1 | |
| Dimension: ASME B 16.3, B16.14. Union: B 16.39 | ||
| British Standard | Threads :ISO 7/1 | |
| Dimension: BS EN 10242, BS 143&1256 | ||
| DIN Standard | Threads : ISO 7/1 | |
| Dimension : ISO 49, DIN2950, EN10242 | ||
| Chemical property |
(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65),
(P% <0.1), (S% <0.2%) |
|
| Physical property |
Tensile strength >=350MPa, Elongation >=10%,
Hardness <=150HB |
|
| Testing pressure | 2.5MPa, 100% test before shipment | |
| Working pressure | 1.6MPa | |
| Type | Banded without ribs,Beaded with ribs,Beaded without ribs | |
| Surface | Ø Galvanized | |
| Ø Normal black/Shining black | ||
| Series | Heavy, standard, medium, light | |
| Certificate | BSI, ANAB, ISO9001, FM | |
| Applications | Suitable for Pipe lines connect of steam, air, gas, oil and so on. | |
| Buyer’s drawings or designs are available. | ||
| Package | 1. Cartons without pallets. 2. Cartons with pallets. | |
| 3. Double woven bags Or as buyer’s requirements. | ||
| Delivery detail | ||
| According to the quantities and specifications of each order. | ||
| Normal delivery time is from 30 to 45 days after receiving the deposit. | ||
