Quick Details
-
Model Number:
-
12v 10ah 20hr
-
Battery Size:
-
12V 10AH Battery
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
3.1Kg
-
Usage:
-
UPS
-
Voltage:
-
12V
-
Certificate:
-
CE,ROHS, UL,ISO,MSDS
-
Cycle use:
-
14.6-15V
-
Company established year:
-
2005
-
Standby use:
-
13.5V-13.8V
-
initial current:
-
less than 3.0A
-
Product name:
-
12 volt 10 amp battery 6 fm 10 12v 10ah
-
Battery type:
-
Sealed VRLA Lead Acid Battery
-
Size:
-
151*98*99
-
Warranty:
-
14 months
Quick Details
-
Anode Material:
-
/
-
Application:
-
Power Tools, Home Appliances, Electric Bicycles/Scooters, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
NEATA
-
Model Number:
-
12v 10ah 20hr
-
Battery Size:
-
12V 10AH Battery
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
3.1Kg
-
Usage:
-
UPS
-
Voltage:
-
12V
-
Certificate:
-
CE,ROHS, UL,ISO,MSDS
-
Cycle use:
-
14.6-15V
-
Company established year:
-
2005
-
Standby use:
-
13.5V-13.8V
-
initial current:
-
less than 3.0A
-
Product name:
-
12 volt 10 amp battery 6 fm 10 12v 10ah
-
Battery type:
-
Sealed VRLA Lead Acid Battery
-
Size:
-
151*98*99
-
Warranty:
-
14 months

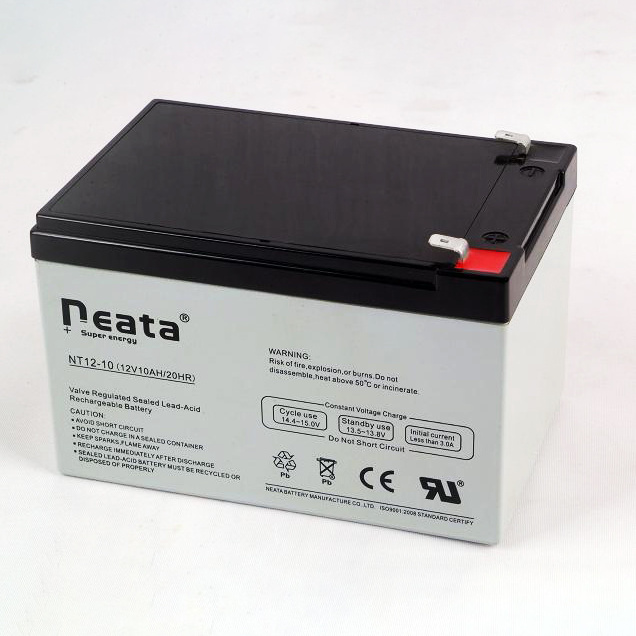

Products Description
|
Description
|
|
|
||
|
Model
|
12V10Ah
|
|
||
|
Nominal Voltage
|
12V
|
|
||
|
Nominal Capacity
(20 hour rate)
|
10Ah
|
|
||
|
Cyclic Life
|
50%(C20) Depth of discharge
|
600Times
|
||
|
Capacity 25℃ (77°F)
|
20 hour rate (0.5A)
|
10Ah
|
||
|
|
10 hour rate (0.95A)
|
9.5Ah
|
||
|
|
5 hour rate (1. 6A)
|
8.0 Ah
|
||
|
|
1 hour rate (6.5A)
|
6.5Ah
|
||
|
internal Resistance
|
Full Charged Battery 25℃(77°F)
|
≤22mΩ
|
||
|
Capacity Affected By Temperature
(20 Hour Rate)
|
40℃ (104°F)
|
102%
|
||
|
|
25℃ (77°F)
|
100%
|
||
|
|
0℃ (32°F)
|
85%
|
||
|
|
-15℃ (5°F)
|
65%
|
||
|
Self-Discharge at 25℃ (77°F)
|
Capacity after 3 month storage
|
90%
|
||
|
|
Capacity after 6 month storage
|
80%
|
||
|
|
Capacity after 12 month storage
|
62%
|
||
|
Float Life
|
25℃(77°F) Float charge at 13.8V
|
About
2 Years
|
||
|
Charge (Constant Voltage)25℃ (77°F)
|
Cycle
|
Initial Charging Current
Less than 3.0A
Voltage14.6-15.0V
|
||
|
|
Float
|
Voltage 13.5-13.8V
|
||
|
Float Charge(Constant Voltage)
|
Voltage13.5-13.8V
|
|
||
|
Usage
|
UPS/Solar/Wind/Alarm/Security/Telecommunication/Emergency
Lighting System.
|
|
||
|
|
Electronic Instrument/ Fire-fighting Equipment/ Standby Power Supply/ Etc
|
|
||
|
Warranty
|
1 Years
|
|
||
|
OEM Service
|
Accept
|
|
||
|
Color
|
Black, Gray
|
|
||
|
Certificate
|
ISO/CE/UL/ROHS
|
|
||
|
Battery Construction
|
|
|
|
|
|
|
|
|||||||
|
Component
|
Positive plate
|
Negative plate
|
Container
|
Safety valve
|
Terminal
|
Separator
|
Electrolyte
|
|||||||
|
Raw matterial
|
Lead dioxide
|
Lead
|
ABS
|
Rubber
|
Copper
|
Fiberglass
|
Sulfuric acid
|
|||||||
|
Dimension
|
|
|
||
|
Battery
(L×W×H)
|
mm±1
|
151×98×99
|
||
|
|
inch
|
5.94×3.86×3.90
|
||
|
Box
(L×W×H)
|
mm±2
|
320×220×122
|
||
|
|
inch
|
12.6×8.67×4.81
|
||
|
Quantity Per Box
|
|
4 PCS
|
||
|
Net weight Per Cell
|
|
3.1Kg±50g
|
||
|
Net weight Per Box
|
|
12.4Kg
|
||
|
Gross Weight
|
|
12.7 Kg
|
||
