Quick Details
-
Drilling Speed:
-
40-60 mm/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITECH
-
Model Number:
-
DS703A
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
As require
-
Power (kW):
-
3.5
-
Weight (KG):
-
600 KG
-
Product name:
-
EDM Drilling Machine Deep Hole Small Hole Drilling for 0.3-3mm
-
Worktable Size:
-
400x300mm
-
Worktable Travel:
-
250x200mm
-
Servo Travel:
-
330mm
-
Spindle Travel:
-
200mm
-
Electrode diameter:
-
0.3 - 3mm
-
Machine dimension:
-
1070x710x1970mm
-
Max. working current:
-
22A
-
Function:
-
Metal Perforating
-
Application:
-
Drilling deep and small holes
Quick Details
-
type:
-
Bench Drilling Machine
-
Max. Drilling Dia. (mm):
-
3
-
Range of Spindle Speed(r.p.m):
-
1 - 120 r.p.m
-
Drilling Speed:
-
40-60 mm/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITECH
-
Model Number:
-
DS703A
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
As require
-
Power (kW):
-
3.5
-
Weight (KG):
-
600 KG
-
Product name:
-
EDM Drilling Machine Deep Hole Small Hole Drilling for 0.3-3mm
-
Worktable Size:
-
400x300mm
-
Worktable Travel:
-
250x200mm
-
Servo Travel:
-
330mm
-
Spindle Travel:
-
200mm
-
Electrode diameter:
-
0.3 - 3mm
-
Machine dimension:
-
1070x710x1970mm
-
Max. working current:
-
22A
-
Function:
-
Metal Perforating
-
Application:
-
Drilling deep and small holes
Main Features
☆☆☆☆☆
1) X.Y axes are equipped with digital readout device.
2) Working liquid is purified water or tap water.
3) It can drill holes from slant surIace and curved surface of workpiece.
4) Ratio of hole depth to hole diameter can reach up to 200:1.
5) This machine can be also used for corrode and get rid of drill heads, screw taps which brake off in workpieces, and the workpiece hole and thread will not be damaged.

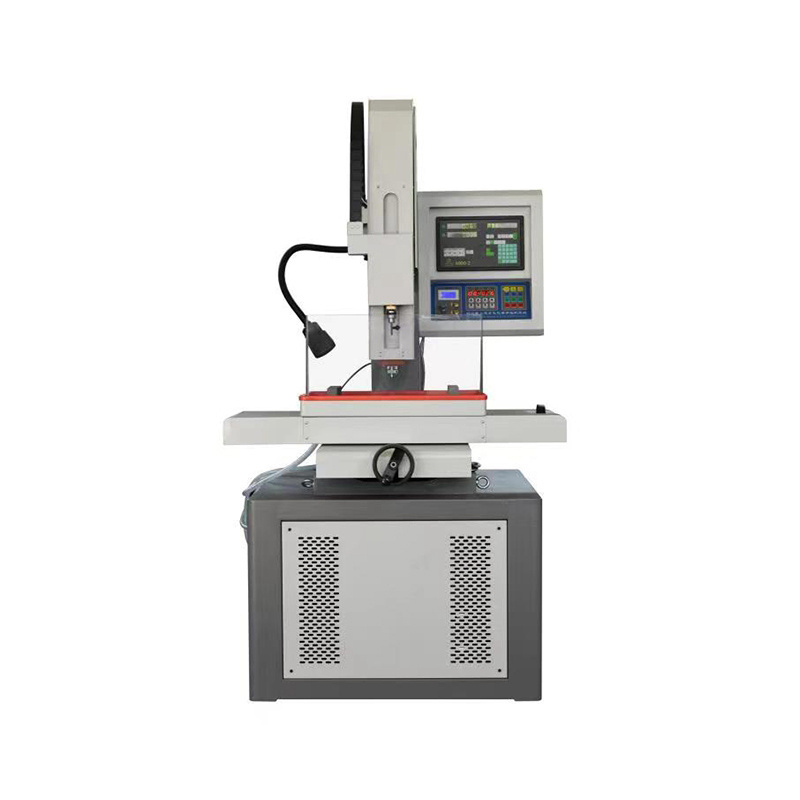

EDM Small Hole High Speed Drilling Machine Introduction
This machine is mainly used for drilling deep and small holes in various kinds of conducting materials such as stainless steel. hardened steel, hard alloy, copper and aluminium. It can make holes for EDM wire cutting machine wire. spinneret orifice of chemical fiber spinnerst, holes in filter plates and sieve plates, ventilation holes of engine blade and cylinder block, pipelines and pneumatic holes of hydraulic and pneumatic valves.
Main Parameters of EDM Small Hole High Speed Drilling Machine
|
Model
|
DS703A
|
|
Worktable Size
|
400*300mm
|
|
Worktable Travel
|
250*200mm
|
|
Servo Travel
|
330mm
|
|
Spindle Travel
|
200mm
|
|
Electrode Diameter
|
0.3 - 3mm
|
|
Max. Working Current
|
22A
|
|
Power Input
|
380V/50Hz 3.5kW
|
|
Machine Weight
|
600kg
|
|
Machine Dimension
|
1070m*710m*1970mm
|
