Quick Details
-
Brand Name:
-
Walker
-
Model Number:
-
depends
-
Product name:
-
Calcium And Iron Analyzer
-
Color:
-
Customer Required
-
Standard:
-
International Standard
-
Function:
-
Electrical Performance Testing
-
MOQ:
-
1 Set
-
Accuracy:
-
High Accuracy
-
Display:
-
Digital Display
-
Package:
-
Wooden Case
-
Feature:
-
Easy Operation
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Walker
-
Model Number:
-
depends
-
Product name:
-
Calcium And Iron Analyzer
-
Color:
-
Customer Required
-
Standard:
-
International Standard
-
Function:
-
Electrical Performance Testing
-
MOQ:
-
1 Set
-
Accuracy:
-
High Accuracy
-
Display:
-
Digital Display
-
Package:
-
Wooden Case
-
Feature:
-
Easy Operation
Product Description
Introduce

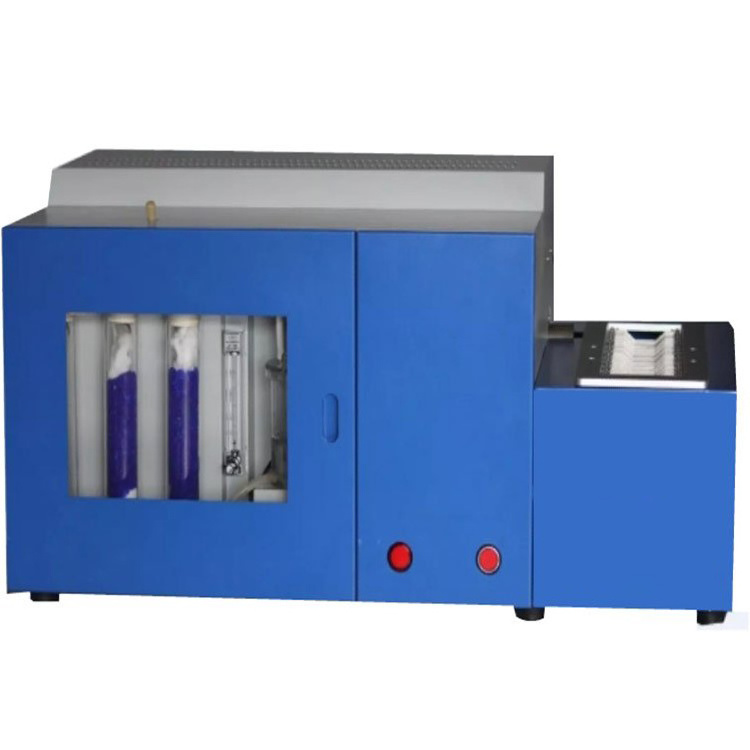

The microcomputer sulfur analyzer is mainly used to determine the total sulfur content in coal, steel and various minerals. It is the preferred instrument for laboratories in departments such as coal, electric power, chemical industry, building materials, metallurgy, geological exploration, commodity inspection, and environmental protection testing.
Features
1.
The system is used to measure the sulfur content of coal, coke, and other minerals.
2.
The whole test process is automatically completed by the computer control, and it can also work without the computer.
3.
It is convenient and intuitive to correct during the experiment.
4.
The measurement results can be saved for a long time, and can be queried and printed.
5.
System working temperature The user can choose to set between 600°C----1150°C through the software (1050°C when measuring coal, and 800°C when measuring oil).
6.
The standard RS232 serial interface is used between the microcomputer and the single-chip microcomputer system, which has the characteristics of simple wiring, reliable transmission, long transmission distance and low failure rate.
7.
The single-chip microcomputer system is responsible for controlling the temperature control of the high-temperature furnace, collecting measurement data, and transmitting the data to the main control microcomputer through the serial line, and the microcomputer performs data processing. The cooperation with the main program of the microcomputer greatly improves the overall performance of the system. improve.
8.
This system rationally places high-temperature furnace, magnetic stirrer, air purification device, electrolytic cell, automatic sample feeding mechanism, and single-chip microcomputer control circuit in the same chassis, so that the whole system is beautiful, small in size, and convenient to place and connect , System operation and daily maintenance are simple and so on.
Technical Parameters
1.
Measuring range of sulfur: 0~100%.
2.
Carrier gas flow rate: 1000ml/min.
3.
Sulfur measurement time: 3-5 minutes, computer automatic judgment control.
4.
Heating rate: ≤25min.
5.
Power requirements: single-phase AC voltage ~220V 50Hz, power 2KW.
6.
Accuracy: Comply with the national standard GB/T214-2007.
Packing&Delivery
◆ Ways of packing
1.Small parts packed in the wooden cases
2.Big parts packed by plastic membrane
3.The whole big machine is loaded in the container
3.The whole big machine is loaded in the container
◆ Shiping by sea/air freight
or any way the customer requires
