Quick Details
-
Power (kW):
-
15
-
Weight (KG):
-
2000
-
Name:
-
Sanding machine
-
Model:
-
GD-RP630
-
Application material:
-
Wood Cabinets, doors, Metal
-
Maximum processing width:
-
630mm
-
Sanding thickness:
-
3-110mm
-
Min processing panel length:
-
260mm
-
First sanding motor:
-
11kw
-
Second sanding motor:
-
7.5kw
-
Keywords:
-
Wood sanding machine, metal sanding machine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guandiao CNC
-
Marketing Type:
-
Hot Product 2024
-
Power (kW):
-
15
-
Weight (KG):
-
2000
-
Name:
-
Sanding machine
-
Model:
-
GD-RP630
-
Application material:
-
Wood Cabinets, doors, Metal
-
Maximum processing width:
-
630mm
-
Sanding thickness:
-
3-110mm
-
Min processing panel length:
-
260mm
-
First sanding motor:
-
11kw
-
Second sanding motor:
-
7.5kw
-
Keywords:
-
Wood sanding machine, metal sanding machine
Product Description
Full Automatic Wood Metal Polishing Sanding Machine CNC Stainless Steel Slags Remove Metal Sanding Sander Machine Price

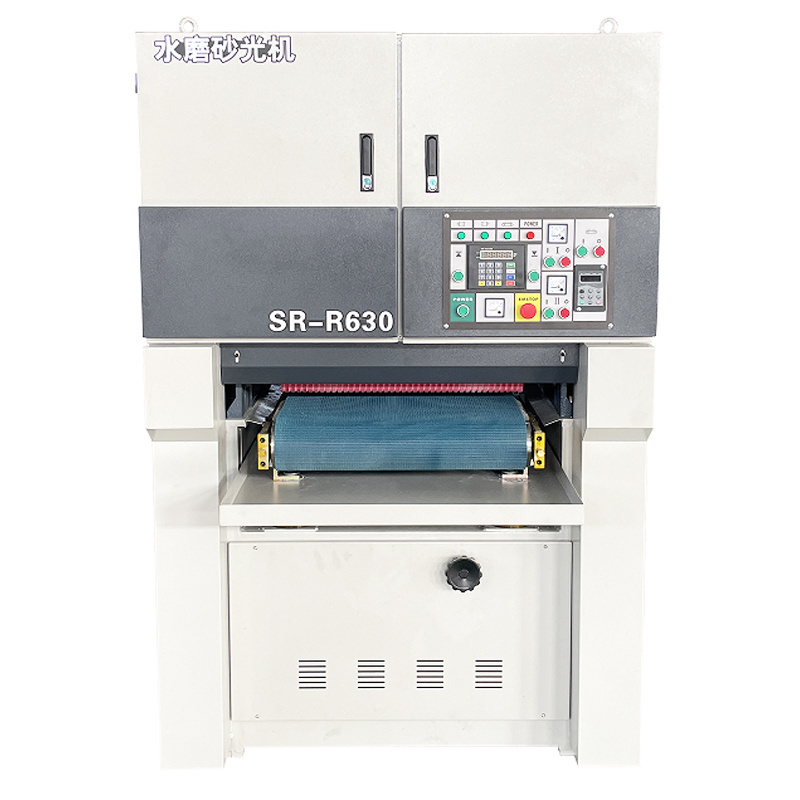

Wood sanding machine introduction:
The belt
wood sanding machine
is a machine tool for sanding and polishing the surfaces of various parts with abrasive belts. It is suitable for sanding wooden components, particle boards, fiberboards, thin wood veneers, artificial marble, etc., and sanding surfaces coated with polyester paint.
Broadband sanding machine is a kind of high-efficiency and highly automatic sanding equipment, which is widely used in sanding processing of large-format wood-based panels, panel furniture parts and solid wood. It can complete sanding with fixed thickness and surface modification. The sanding machine is mainly composed of frame, feeding device, lifting device, electro-pneumatic control device, dust collection device and so on.
Wood Sanding Machine Features
1.The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and durability
2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient maintenance.
3. The belt tensioning cylinder is made of cast iron, which has large tension and good stability.
4. Conveyor belt adjustment cylinders are all 63*20 cylinders, with high strength and good stability.
2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient maintenance.
3. The belt tensioning cylinder is made of cast iron, which has large tension and good stability.
4. Conveyor belt adjustment cylinders are all 63*20 cylinders, with high strength and good stability.
Specification
Wood sanding machine parameters
|
Model
|
R-RP630
|
R-RP1000
|
R-RP1300
|
|
Max.working width（mm）
|
630
|
1000
|
1300
|
|
The shortest processing length（mm）
|
500
|
500
|
500
|
|
The shortest processing length（mm）
|
3-110
|
3-110
|
3-110
|
|
Converyor speed(/min)
|
6-30
|
6-30
|
6-30
|
|
Total power（kw）
|
20.37
|
35.37
|
63.37
|
|
Motor for first unit（kw）
|
11
|
18.5
|
37
|
|
Motor for second unit（kw）
|
7.5
|
15
|
22
|
|
Feeding motor（kw）
|
1.5
|
1.5
|
4
|
|
Lifting motor（kw）
|
0.37
|
0.37
|
0.37
|
|
Diameter for first roller （mm）
|
190
|
190
|
240
|
|
Diameter for second roller（mm）
|
190
|
190
|
210
|
|
Sand belt size（mm）
|
650x1920
|
1020x2000
|
1330x2200
|
|
Working pressure（Mpa）
|
0.6
|
0.6
|
0.6
|
|
Outline dimension（mm）
|
1900x1200x2100
|
1900x1600x2100
|
2700x2100x2100
|
|
Weight（kg）
|
1200
|
2000
|
3300
|
Details Images
Wood sanding machine details
SANDING TYPE
The first sand frame-steel roller. Second sand frame-rubber roller+ graphite cloth.
CONVEYOR BELT
Adjust speed control controller smoothly used
.
