Servo drive system can make fan have a fast reaction with DSP control core and inner complex control algorithm. In addition, it
has continuously variable, precise localization and the protection system with over voltage,over currents.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Qixiang
-
Voltage:
-
220V/380V
-
Product name:
-
industrial ceiling fans
-
Blade Quantity:
-
5PCS
-
Fan Diameter:
-
2500mm---7200mm
-
Weight:
-
65KG---115KG
-
Max Speed:
-
50 RPM---120RPM
-
Max Air Volume:
-
14800m3/min
-
MAX.Current:
-
2.2A/3A
-
Noise Level:
-
<39db
-
Area Covered:
-
1450 m2
-
Certification:
-
ce,RoHS,ISO9001
Quick Details
-
Mounting:
-
Ceiling Fan
-
Power:
-
660W/ 880W/1300W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qixiang
-
Voltage:
-
220V/380V
-
Product name:
-
industrial ceiling fans
-
Blade Quantity:
-
5PCS
-
Fan Diameter:
-
2500mm---7200mm
-
Weight:
-
65KG---115KG
-
Max Speed:
-
50 RPM---120RPM
-
Max Air Volume:
-
14800m3/min
-
MAX.Current:
-
2.2A/3A
-
Noise Level:
-
<39db
-
Area Covered:
-
1450 m2
-
Certification:
-
ce,RoHS,ISO9001
Product Description

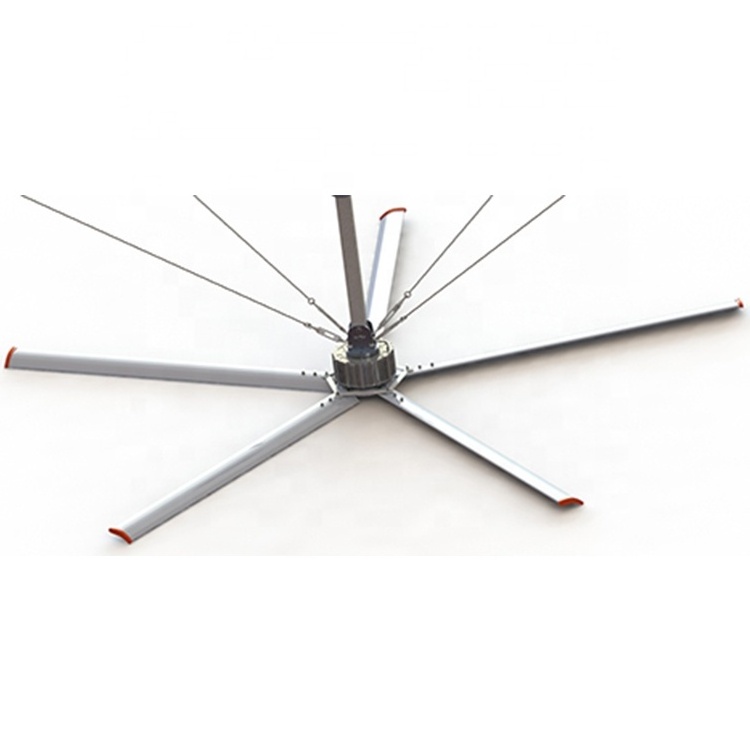

HVLS Giant Industrial Ceiling Fan for Machine Factory
Qixiang HVLS Giant Industrial Ceiling Fans are made by the advanced technology. It is energy-saving and environment-friendly, with low power, it can deliver plenty of nature wind, make a large amount of air circulation and create a comfortable environment for large indoor or outdoor facility, like factory production line, warehouse, hotel, railway station, airport, stadium,mosques, church and park and other leisure center.
Advantage:
- High volume with efficient air flow at low power
- Low cost and free maintenance
- Large application area
-Compact size, light weight
- 5-Blade designed with Aluminum Magnesium Alloy
- High volume with efficient air flow at low power
- Low cost and free maintenance
- Large application area
-Compact size, light weight
- 5-Blade designed with Aluminum Magnesium Alloy
The Most Popular Qixiang Gearless PMSSM Industrial Ceiling Fan
Specification (Big Sizes)
Specification (Big Sizes)
|
Model
|
HVD-H7200
|
HVD-B6700
|
HVD-B6200
|
|
Diameter
|
7.2m(24ft)
|
6.7m(22ft)
|
6.2m(20ft)
|
|
Blades Qty
|
5
|
5
|
5
|
|
Weight
|
115KG
|
113KG
|
110KG
|
|
Power
|
1.3KW
|
1.3KW
|
1.3KW
|
|
Max Speed
|
55RPM
|
60RPM
|
65RPM
|
|
Max air Volume
|
15197m³/min
|
12560m³/min
|
10747m³/min
|
|
Voltage
|
380V/220V
|
380V/220V
|
380V/220V
|
|
MAX. Current
|
3.1A/4.5A
|
3.1A/4.5A
|
3.1A/4.5A
|
|
Noise Level
|
≤39db
|
≤39db
|
≤39db
|
|
Permanent magnet servo drive motor
|
|
|
|
1.IP64, small size, no lubricating oil, low energy consumption, no maintenance, can work for nearly 15 years, beautiful
appearance, especially suitable for villas, churches, cafes, restaurants, etc. 2. The motor is designed with high pyrolysis technology and the operating temperature is about 38 °C. 3. internal precision Hall induction digital closed-loop control, can correctly control the switch station, step-less speed change. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fan blades
7075 aviation aluminum-magnesium alloy with T6 anodizing heat treatment.High resistance to deformation and anti-fracture.The tensile strength is 572mpa, the thickness is 2.00mm. Second, 5 strength ribs in the inner fan, and one is 3mm thickness for a more strong structure and not easy to deform and break.
Strong mechanical properties, precision measurement to ensure longer life.
stability and security.
