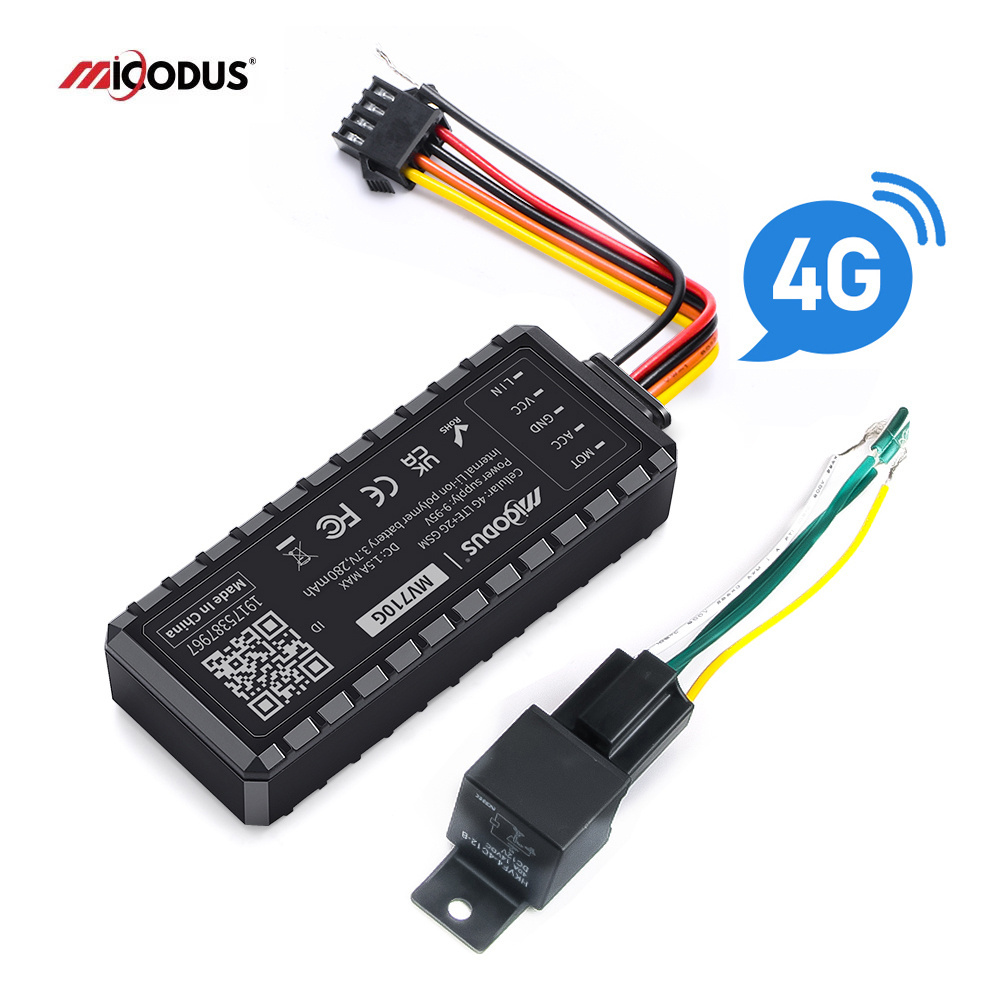

Micodus MV710G Anti Teft Kill Switch Motorcycle Tracking Accurate Vehicle Tracker Manual Track Device Relay J16 Gps Tracker

Micodus MV710G Anti Teft Kill Switch Motorcycle Tracking Accurate Vehicle Tracker Manual Track Device Relay J16 Gps Tracker

FOB Reference Price: Get Latest Price

≥2 Pieces

US $14

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 years

Place of Origin:: Guangdong, China

Brand Name:: MiCODUS

Model Number:: MV710G

Item Size:: 79mm * 33mm * 16mm

Operating Voltage:: 9-90V DC

Network and Frequency:: 4G LTE-FDD+2 G GSM

Positioning Ways:: BDS+GPS+GLONASS+LBS

Backup Battery:: 280mAh

GPS Sensitivity:: -162 dBm

Special Feature:: Remote Control

Certificate:: CE ROHS

Tracking system:: www.micodus.net

Weight:: 40g

Quick Details

Positioning Mode:: GSM, GPS, GLONASS, Real-Time Positioning

Function:: ANTI-SHOCK, street view, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence, Movement alarm, Tamper alarm, Vibration alarm, ,Cut wire alarm, remotely Cut off fuel, Engine start alarm, Auto arm ACC, Tow alarm, Low voltage alarm, Cut Off Oil Safely, Cut Off Oil Immediately, Detecting Door Status, Door Open Alarm, GPS Data Compensate By Cornering, GPS Data Supplementary Of Network Blind Area

Data Storage:: Cloud Storage, Other

Warranty:: 1 years

Place of Origin:: Guangdong, China

Brand Name:: MiCODUS

Model Number:: MV710G

Item Size:: 79mm * 33mm * 16mm

Operating Voltage:: 9-90V DC

Network and Frequency:: 4G LTE-FDD+2 G GSM

Positioning Ways:: BDS+GPS+GLONASS+LBS

Backup Battery:: 280mAh

GPS Sensitivity:: -162 dBm

Special Feature:: Remote Control

Certificate:: CE ROHS

Tracking system:: www.micodus.net

Weight:: 40g

Products Description

Micodus MV710G Anti Teft Kill Switch Motorcycle Tracking Accurate Vehicle Tracker Manual Track Device Relay J16 Gps Tracker

*FREE SAMPLE For New Customers

Main Features:
1. Network: 4G LTE FDD + 2G GSM
2. Mini Size and Easy to Hidden
3. BDS+GPS+GLONASS+LBS Positioning Ways.
4. Wide Operating Voltage 9-90V DC, compatible with vehicles on the market!
5. Door Status Detection and Door Open Alarm
6. Two Ways Cut Off The Fuel: Remotely Cut Off Immediately & Cut Off Safely
7. ACC Detection
8. Low Voltage Alarm
9. Anti-theft Alarms: Vibration alarm, Displacement alarm, Geo-fence alarm, Tow alarm, Overspeed Alarm.
10. Remotely Firmware OTA

11. GPS Data Compensate By Cornering
12.GPS Data Supplementary Of Network Blind Area
13. ONE YEAR FREE WEB TRACKING SOFTWARE AND MOBILE APP.
14. MiCODUS Tracking Platform Supports Multiple Languages.

www.micodus.net
iOS&Android APP: Micodus

Power Supply	External Battery
Working Voltage	DC 9V - 95V
Working Current	12V/average 35mA
Sleep Current	12V/average 10mA
Built-in Battery	280mAh 3.7V polymer battery
Working Temperate	-20℃ - 75℃
Storage Temperatu re	-30℃ - 80℃
Working Humidity	10%-85% RH non-condensing
Communication mo dule brand/chip mo del	SIMCOM A7670SA
Network and Band s	4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
Network and Band s		GSM/2G: 850/900/1800/1900MHz
SIM Type	Micro SIM Card
Antenna Type	FPC
Positioning Module	AT6558R
Positioning Type	BDS+GPS+GLONASS+LBS
Cold Start	Average 32s
Hot Start	Average 1s
Sensitivity	-162 dBm
Antenna Size	18mm * 18mm * 4mm
GPS Bands	L1:1575.42±1.023MHz
BDS Bands	B1:1561.098±2.046MHz
Channels	32
Accuracy	<10m（1σ）
Dimensions	79mm * 33mm * 16mm

Wiring Instruction

NOTE: After installed SIM card correctly , it is very important to connect the tracker with external power no less than 12V for power supply before operation!

Wide Voltage 9-95V DC

Wide voltage 9-95V DC, can be applied to various vehicles: cars, trucks, electric vehicles, motorcycles, bus etc.

Door Status Detection

MV710G can detect the status of vehicle doors and monitor in real-time whether the doors are open or closed through the tracking platform.

Vehicle Battery Voltage Detecting

MV710G GPS tracker can detect vehicle battery's voltage, and with low voltage alarm function.

Remotely Fuel Cut Off And Resume

It can remotely cut off and restore the fuel circuit, which is suitable for vehicle theft or loss of control of the vehicle.

Auto Arm By ACC

Intelligent automatic arming and disarming according to ACC status, no manual operation required.

Multiple anti-theft alarm functions

Multiple anti-theft alarm functions: Vibration alarm, Displacement alarm, Engine start and flameout alarm, Geo-fence alarm, Power failure alarm, Tow alarm.

GPS Data Compens By Cornering

When turning, the device will upload a GPS data in order to reflect the details of turning, the uploaded positioning data will be more denser and the trajectory query is more accurate.

GPS Data Supplementary Of Network Blind Area

Without network, the device will disconnect with the server, but the GPS data will be saved by the built-in memory, 5000pcs GPS data can be stored at the most. once the network signal recovered the saved data will be uploaded to the tracking server.

Firmware OTA

MV710G GPS device supports firmware upgrading remotely, keep your device always be the latest version.

Installation Recommendation

1) The device should face to the sky. 2) Metal thermal barrier of heating layer of the windshield affects the signal.

Web Tracking Platform and Mobile APP

One Year Free Micodus tracking system! Web server and both iOS and Android version APP are available!

1). Time Zone & Local Language: More than 10 languages and timezone settings
2). Multiple Account Support: Allow you to set up an account for company users to manage many vehicles
3). Group Management: The user can manage the vehicle by setup different groups
4). Reporting and Export: The overview report, Speeding report, Mileage Report, Stop Report
5). Freely import GPS devices.
6). MiCODUS tracking platform support most GPS models.
7). Micodus platform can host unlimited quantity of gps tracking device.

www.micodus.net
APP: MiCODUS
