Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
±0.1mm/m
-
Control Software:
-
DSP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUEMING
-
Weight (KG):
-
410 KG
-
Products handled:
-
Acrylic, Wood, Crystal, Leather, MDF, Plastic
-
Feature:
-
Cutting & Engraving
-
Product name:
-
130w laser cutting machine
-
Keywords:
-
non-metal acrylic wood MDF CO2 laser cutter
-
Power supply:
-
220V / 50Hz
-
Laser source:
-
RECI
-
Dimension:
-
1900*1700*1100mm
-
Water chiller:
-
CW5200
-
Working environment:
-
temp: 5~40℃ humidity: 5~80% clean, less dust
-
Application meterial:
-
Non-material.Acrylic. Wood.MDF Leather Fabric
-
Working table:
-
Honeycomb Working Table/Blade working table
-
Transmission system:
-
Belt Transmisssion
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-30m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
±0.1mm/m
-
Control Software:
-
DSP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUEMING
-
Weight (KG):
-
410 KG
-
Products handled:
-
Acrylic, Wood, Crystal, Leather, MDF, Plastic
-
Feature:
-
Cutting & Engraving
-
Product name:
-
130w laser cutting machine
-
Keywords:
-
non-metal acrylic wood MDF CO2 laser cutter
-
Power supply:
-
220V / 50Hz
-
Laser source:
-
RECI
-
Dimension:
-
1900*1700*1100mm
-
Water chiller:
-
CW5200
-
Working environment:
-
temp: 5~40℃ humidity: 5~80% clean, less dust
-
Application meterial:
-
Non-material.Acrylic. Wood.MDF Leather Fabric
-
Working table:
-
Honeycomb Working Table/Blade working table
-
Transmission system:
-
Belt Transmisssion
Product Description
Specification
|
Condition:
|
New
|
|
Usage:
|
non-metal cutting
|
|
Product name:
|
130w laser cutting machine
|
|
Model:
|
CMH1610-B-A CMH1610-T-A
|
|
Keywords:
|
non-metal acrylic wood MDF CO2 laser cutter
|
|
Cutting area:
|
1600×1000mm
|
|
Laser power
|
100w(Optional 60w-180w)
|
|
Power supply：
|
220V / 50Hz
|
|
Place of Origin:
|
Guangdong, China
|
|
Laser source
|
RECI
|
|
Graphic Format Supported:
|
AI, PLT, DXF, dsb, nc, out, yln, etc.
|
|
Repeated positioning accuracy：
|
±0.1mm/m
|
|
Speed:
|
0-30m/min
|
|
Dimension:
|
2200*1780*1100mm
|
|
Warranty:
|
1 year
|
|
Mode of operation:
|
continuous wave
|
|
Cooling mode:
|
water cooling
|
|
Chiller:
|
external
|
|
Water chiller:
|
cw5200
|
|
Weight (KG):
|
380kg
|
|
Working environment：
|
temp: 5~40℃ humidity: 5~80% clean, less dust
|
|
Machinery Test Report:
|
Provided
|
|
Marketing Type:
|
New Product 2023
|
|
Video outgoing-inspection:
|
Provided
|

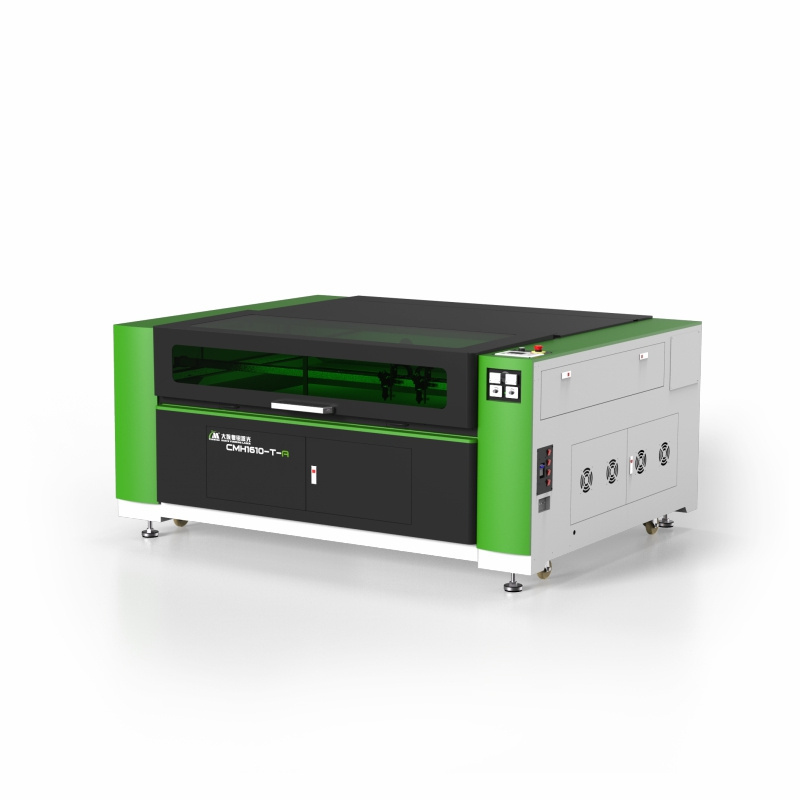

CO2 LASER CUTTING MACHINE
PARAMETER
|
Machine Size(Optional)
|
1900”1060”1100mm 2020*1580*1100mm,1900*1700*1100mm,2200*1780*1100mm
|
|
Laser Power (Optional)
|
60/80/100/130/180/30QW
|
|
Working Area (Optional)
|
600*400/1000*800/1300*g00/1600*1000mm
|
|
Laser Head(Optional)
|
Single/Double
|
|
Positioning Accuracy
|
土0.15mm
|
|
Cutting Speed
|
0-30m/min
|
MAIN PARTS
