Mining industry project gcl geosynthetic clay liner factory price 4800gsm
Mining industry project gcl geosynthetic clay liner factory price 4800gsm
Mining industry project gcl geosynthetic clay liner factory price 4800gsm
Mining industry project gcl geosynthetic clay liner factory price 4800gsm
Mining industry project gcl geosynthetic clay liner factory price 4800gsm
Mining industry project gcl geosynthetic clay liner factory price 4800gsm
Mining industry project gcl geosynthetic clay liner factory price 4800gsm
Mining industry project gcl geosynthetic clay liner factory price 4800gsm

Mining industry project gcl geosynthetic clay liner factory price 4800gsm

FOB Reference Price: Get Latest Price
≥1000 Square meters
US $1.74
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Landfill site,Mining,Biogas pond etc, Water storage, Construction floor, Subway etc
Design Style:
Contemporary
Place of Origin:
Shanghai, China
Brand Name:
Yingfan
Model Number:
YF-GCLNP
Type:
Other Earthwork Products
Product name:
bentonite for ponds gcl geosynthetic clay liner for environment
Function:
Waterproofing,reinforcement,protection,erosion control
Type::
GCL-NP
Unit weight::
5000g/m2
UV resistance::
Yes
Certificate::
ISO9001/ ISO14001/ OHSAS18001
Width:
3m-6m or as required
Length:
10m, 20m, 30m, 40m, or customerized

Quick Details

Warranty:
1 Year
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
Project Solution Capability:
graphic design, total solution for projects, Cross Categories Consolidation, Others
Application:
Landfill site,Mining,Biogas pond etc, Water storage, Construction floor, Subway etc
Design Style:
Contemporary
Place of Origin:
Shanghai, China
Brand Name:
Yingfan
Model Number:
YF-GCLNP
Type:
Other Earthwork Products
Product name:
bentonite for ponds gcl geosynthetic clay liner for environment
Function:
Waterproofing,reinforcement,protection,erosion control
Type::
GCL-NP
Unit weight::
5000g/m2
UV resistance::
Yes
Certificate::
ISO9001/ ISO14001/ OHSAS18001
Width:
3m-6m or as required
Length:
10m, 20m, 30m, 40m, or customerized

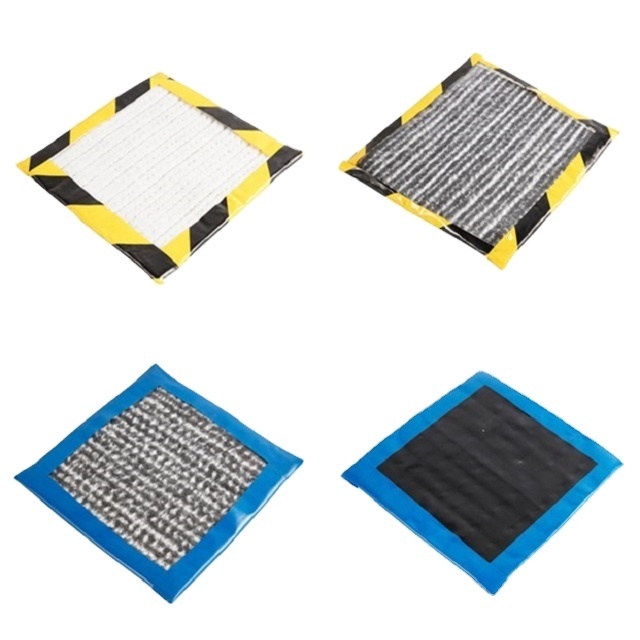

Product-GCL

Customized all size of Geosynthetics

Welcome to YINGFAN

Professional Geosynthetics manufacture

Description of Bentonite GCL

1 Bentonite GCL is self-attaching and self -sealing to concrete or other construction structures .

2 It is made of a non-woven geotextile, a natural sodic bentonite layer, with or without a pe geomembrane layer, and a polypropylene sheet.

3 These layers are connected with a dense felter that makes the bentonite a self-confinement with controlled expansion. With this system it is possible to avoid slippage and the accumulation of bentonite as a consequence of cuts, tears, vertical applications and movements.

What is the type of GCL-NP: The upper layer is geotextile, the bottom layer is woven geotextile and the inner part between the two layers is the natural sodium bentonite clay.

China manufacture new style bentonite for ponds gcl geosynthetic clay liner

Benifits of GCL:

Good Self Water-Retention Property:

Form high density diaphragm under hydraulic pressure, the water permeable capability

equals to 100 times density degree of 30cm clay when the thickness of GCL is 3mm. It

has very good self water-retention property.

Permanent Water Proofing Capability:

GCL is nature inorganic material, it won't aging or corrode even after long

time or surrounding changed, so it has permanent water proofing capability.

Environment-friendly:

GCL is nature inorganic material, which is non-poisonous and harmless to human body, as a result, it is eco-products.

Specification:

GCL-NP

Property

Unit

Values

SPECIFICATION

GCL4800

Geotextile layers

Geotextile of cover layer
(non-woven geotextile)

g/m2

200

Geotextile of carrier layer
(woven geotextile,PP)

g/m2

110

Bentonite layer

Type

-

Sodium bentonite

Mass per unit area

g/m2

≥4500

Swell index

ml/2g

≥24

Fluid Loss

ml

≤18

Geosynthetic Clay Liner

Mass per unit area

g/m2

≥4800

Tensile strength

N/100mm

≥600

Elongation at break

%

≥10

Peel strength

N/100mm

≥40

Permeability

m/s

≤5.0×10 -11

Forms: Sizes Available:

Unit weight: 4500g/m2, 4800g/m2, 5000g/m2, 5500g/m2, 6000g/m2 or customerized

Width: 3m-6m or customerized

Length: 10m, 20m, 30m, 40m, or customerized

Bentonite Geosynthetic Clay Liner GCL Applications:

1    Water storage, miniature reservoir, dam, irrigation channel, pond, etc.

2    Construction floor, roof garden, basement, etc.

3    Light industry, oil and metallurgy, etc.

4    Landfill

5    Artificial lake, landscape pool, etc.

6    Subway, railway, expressway, tunnel, airport, road, bridge, etc.

Bentonite Geosynthetic Clay Liner GCL Manufacture

I nstallation Process Flow of Bentonite Geosynthetic Clay Liner GCL
