Quick Details
-
Brand Name:
-
AOSPOW
-
Material:
-
Aluminum
-
Input Type:
-
DC
-
Voltage - Rated:
-
2Vdc
-
Voltage Range:
-
1.1~10.0Vdc
-
Frequency:
-
50-20000Hz
-
Technology:
-
Not Applicable
-
Current - Supply:
-
500μA(Max)
-
Operating Temperature:
-
-20°C ~ 70°C
-
Mounting Type:
-
Wire Lead
-
Termination:
-
Quick Connect
-
Size / Dimension:
-
9.7*4.5mm
-
Height - Seated (Max):
-
4.5mm
-
Voltage - Input (Max):
-
10.0Vdc
-
Impedance:
-
2.2kΩ(Max), 2.2kΩ(Max)
-
Frequency Range:
-
50-20000Hz
-
Height (Max):
-
4.5mm
-
Efficiency - Type:
-
Sensitivity
-
Rated Voltage:
-
2Vdc
-
Directional Characteristic:
-
Omni-Directional
-
Sensitivity:
-
-36±2dB
-
S/N Ratio:
-
65dB(Min)
-
Current Consumption:
-
500μA(Max)
-
Size:
-
9.7*4.5mm
-
Frequency Response:
-
50-20000Hz
-
Standard Operating Voltage:
-
2Vdc
Quick Details
-
Model Number:
-
ASF-F9745AL36-186
-
Type:
-
Microphone, Electret collar clip microphone core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AOSPOW
-
Material:
-
Aluminum
-
Input Type:
-
DC
-
Voltage - Rated:
-
2Vdc
-
Voltage Range:
-
1.1~10.0Vdc
-
Frequency:
-
50-20000Hz
-
Technology:
-
Not Applicable
-
Current - Supply:
-
500μA(Max)
-
Operating Temperature:
-
-20°C ~ 70°C
-
Mounting Type:
-
Wire Lead
-
Termination:
-
Quick Connect
-
Size / Dimension:
-
9.7*4.5mm
-
Height - Seated (Max):
-
4.5mm
-
Voltage - Input (Max):
-
10.0Vdc
-
Impedance:
-
2.2kΩ(Max), 2.2kΩ(Max)
-
Frequency Range:
-
50-20000Hz
-
Height (Max):
-
4.5mm
-
Efficiency - Type:
-
Sensitivity
-
Rated Voltage:
-
2Vdc
-
Directional Characteristic:
-
Omni-Directional
-
Sensitivity:
-
-36±2dB
-
S/N Ratio:
-
65dB(Min)
-
Current Consumption:
-
500μA(Max)
-
Size:
-
9.7*4.5mm
-
Frequency Response:
-
50-20000Hz
-
Standard Operating Voltage:
-
2Vdc

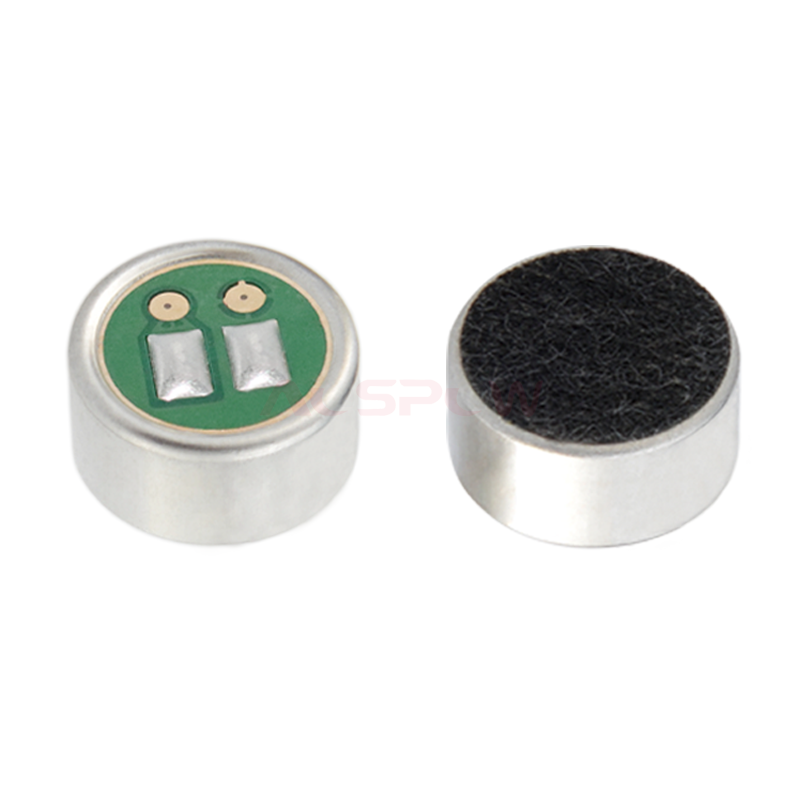

Product Description
|
Part Name：
|
Electret Condenser Microphone
|
|
|
|
|||
|
Model：
|
ASF-F9745AL36-186
|
|
|
|
|||
|
Impedance：
|
2.2kΩ(Max)
|
|
|
|
|||
|
Sensitivity：
|
-36±2dB
|
|
|
|
|||
|
Frequency Response：
|
50-20000Hz
|
|
|
|
|||
|
Specification：
|
9.7*4.5mm
|
|
|
|
|||
|
Type：
|
9.7*4.5mm Condenser Microphone
|
|
|
|
|||
Q1: Could I have free sample?
A1: If what you need is our regular product, we could provide you free samples under 10pcs unit. In addition, you will be charged all related shipping costs.
Q2: How will you control product quality?
A2:There are strict production process requirements and stringent quality inspection standards for our products. The conventional sensitivity is kept in ±2 dB floating range, far beyond the standard of ±3 dB in the industry. Moreover, our production meets ISO9000,14000,ROHS, CE and FCC requirements.
Q3: Can customize, modify and develop products according to the design drawing?
A3: Yes,we provide OEM service and can customize products according to the drawing. If the product needs to develop new mould, you need to charge the mould and sample fees. And we will be refundable after confirm order at certain quantity.
