Quick Details
-
Brand Name:
-
YAFIT
-
Model Number:
-
garnet sand
-
Use:
-
grinding and polishing
-
Diameter Size:
-
3.8
-
Color:
-
red
-
Shape:
-
powder
-
Application:
-
polishing and grinding.
-
Certification:
-
ISO9001
-
samples:
-
Free
-
MOQ:
-
1kg
-
Packing:
-
1000carat/bag
-
Sample:
-
Availble
-
bulk density:
-
3.4-3.6/cm3
Quick Details
-
Type:
-
blasting media
-
Abrasive Grain Sizes:
-
Customised
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YAFIT
-
Model Number:
-
garnet sand
-
Use:
-
grinding and polishing
-
Diameter Size:
-
3.8
-
Color:
-
red
-
Shape:
-
powder
-
Application:
-
polishing and grinding.
-
Certification:
-
ISO9001
-
samples:
-
Free
-
MOQ:
-
1kg
-
Packing:
-
1000carat/bag
-
Sample:
-
Availble
-
bulk density:
-
3.4-3.6/cm3
Garnet Sand
Garnet Sand , derived from mined Almandite and Andradite mineral deposits, is a semi-precious stone. Once extracted, it is processed and then screened to the desired grade. The combination of the high density and physical properties make Garnet nature’s most highly efficient, effective and safe abrasive for both wet and dry blasting applications.
Production Specification
|
Product Name
|
Almandite Garnet / Garnet Sand
|
|
|
|
Colour
|
Red Coloured;
Intensely Red；
Red/Brown;
Reddish pink;
Reddish brown
|
|
|
|
Size
|
8/12;
12/25;
20/40 ;
30/60 ;
80# ;
100# ;
120#;
|
|
|
|
Application
|
※Sand blasting;
※Water & liquids filtration;
※Waterjet Cutting.
|
|
|
|
Raw Material
|
Rock garnet sand mined from 200 meters underground.
|
|
|
|
Production process
|
Crushing →magnetic separation→washing →drying →screening
|
|
|
|
Mineralogical Composition
|
Garnet (Almandite)
|
95% at least
|
|
|
|
Ilmenite
|
1-2%
|
|
|
|
Quartz
|
<0.5%
|
|
|
|
Others
|
0.5%
|
|
|
CHEMICAL ANALYSIS
|
Silicon Dioxide (SiO2)
|
39.03%
|
|
|
|
Ferric Oxide (Fe2O3)
|
24.62%
|
|
|
|
Aluminium Oxide (Al2O3)
|
15.14%
|
|
|
|
Calcium Oxide（CaO）
|
10% MAX
|
|
|
|
Magnesium Oxide (MgO)
|
6%MAX
|
|
|
|
TIO2
|
2%MAX
|
|
|
|
MnO
|
1% MAX
|
|
|
Physical Characteristics
|
Chloride
|
<25PPM
|
|
|
|
Hardness (Mo's ale )
|
7.5 to 8
|
|
|
|
PH
|
>7
|
|
|
|
Conductivity
|
105 μS/cm
|
|
|
|
Bulk density
|
2.34 g/cm3; 145 lb/ft3
|
|
|
|
Specific gravity
|
4.10 g/cm3
|
|
|
|
Grain shape
|
Sharp angular
|
|
A+Rock Garnet 30/60 mesh

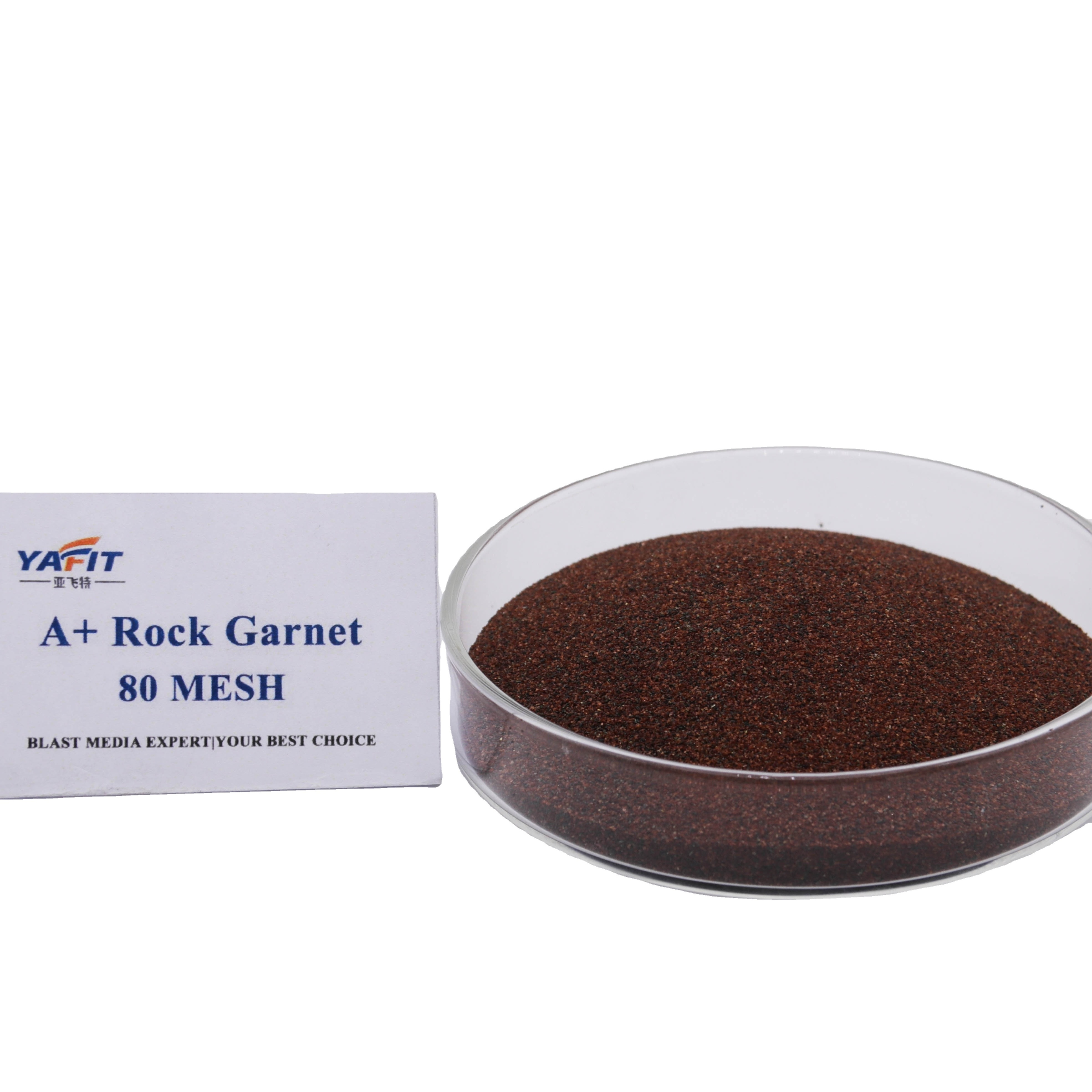

A+Rock Garnet 80 mesh
Sea garnet 80 mesh
Typical Size Analysis
|
Mesh
|
MM
|
Percentage Retention – Typical(%)
|
|
|
|
|
|
|||||
|
-
|
-
|
8/12
|
12/25
|
20/40
|
30/60
|
80
|
100
|
|||||
|
8
|
2.360
|
0
|
|
|
|
|
|
|||||
|
12
|
1.700
|
0-3
|
|
|
|
|
|
|||||
|
14
|
1.400
|
10-21
|
0-1
|
|
|
|
|
|||||
|
18
|
1.000
|
70-85
|
12-25
|
|
|
|
|
|||||
|
20
|
0.850
|
0-7
|
30-45
|
0-5
|
|
|
|
|||||
|
30
|
0.600
|
0-3
|
30-50
|
50-70
|
0-5
|
|
|
|||||
|
40
|
0.425
|
|
3-11
|
10-20
|
15-30
|
0
|
|
|||||
|
50
|
0.300
|
|
|
0-10
|
40-60
|
15-30
|
|
|||||
|
60
|
0.250
|
|
|
|
10-25
|
20-30
|
|
|||||
|
80
|
0.180
|
|
|
|
5-10
|
20-50
|
0-10
|
|||||
|
100
|
0.150
|
|
|
|
|
5-10
|
20-40
|
|||||
|
120
|
0.125
|
|
|
|
|
|
40-60
|
|||||
|
140
|
0.106
|
|
|
|
|
|
5-20
|
|||||
