Quick Details
-
Place of Origin:
-
shenzhen,China
-
Brand Name:
-
qolelarm
-
Supplier Type:
-
shield box
-
name:
-
mobile phone signal test shield box
-
working frequency(GHz):
-
100MHz~8GHZ
-
shielding effect:
-
≥80 dB for 2.4GHz/5.8GHz
-
inner working dimensions:
-
481(W)*494(D)*481(H)mm
-
outside dimensions:
-
633(W)*551(D)*533(H)mm
-
appearance of color:
-
Blue/beige
-
weight:
-
40kg
-
fitler module quantiy:
-
default 1 pc, max 2 pcs
-
filter interface:
-
AC, RJ45, USB 2.0, USB 3.0 , more interfaces optional)
Quick Details
-
Chipset:
-
NO
-
Application:
-
mobile phone signal test
-
Model Number:
-
MS505050-5
-
Place of Origin:
-
shenzhen,China
-
Brand Name:
-
qolelarm
-
Supplier Type:
-
shield box
-
name:
-
mobile phone signal test shield box
-
working frequency(GHz):
-
100MHz~8GHZ
-
shielding effect:
-
≥80 dB for 2.4GHz/5.8GHz
-
inner working dimensions:
-
481(W)*494(D)*481(H)mm
-
outside dimensions:
-
633(W)*551(D)*533(H)mm
-
appearance of color:
-
Blue/beige
-
weight:
-
40kg
-
fitler module quantiy:
-
default 1 pc, max 2 pcs
-
filter interface:
-
AC, RJ45, USB 2.0, USB 3.0 , more interfaces optional)
Product Description
OEM designing and manufacturing wireless products test equipment anechoic chamber rf rfid signal blocker box
Description

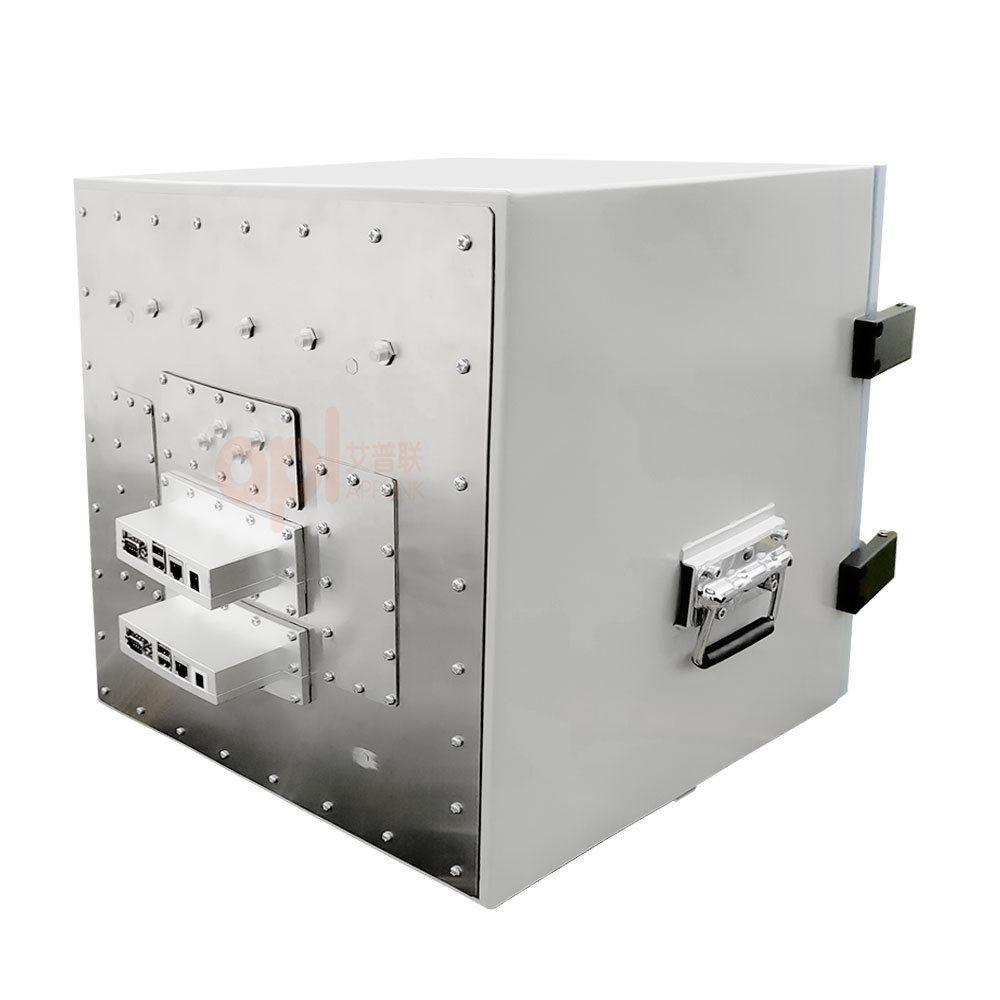

MS505050 is a high quality manual singer-layer shielding box, which allows engineers to create an affordable end-to-end test environment with each UE shielded individually.It is most suitable to test small devices like RF modules, smart phones,WIFI,Bluetooth,smart grid equipment,automotive electronics, unmanned aerial vehicles, smart home and so on.
Application
2)GPS products: cellular phones as W-CDMA of 3G, PDC and GSM; the mobile phone with GPS function, RC drone;
3)Smart products: signal block or isolating for smart led, smartwatch, smart security,smart robot, smart lock, smart ring, smart bracelets), TV BOX(set-top box)
4)Measure products: water measure, electricity measure,temperature measurements, etc)
Why Choose Us
Low MOQ
Our OEM/ODM starts at as few as 1-10 pcs of one design to fit your needs.
Customized design
We are good at the customization on manual shield box, AC / USB3.0 RF filter, EMI test antenna since 2009.
Fast Delivery with stable carton
We can deliver the stock sample within 1 working day after payment, and finish the new customized shield box within 15 working days
Product Paramenters
|
working frequency(GHz)
|
100MHz～8GHZ
|
|
shielding effect
|
≥80 dB@2.4GHz/5.8GHz
|
|
appearance of color
|
body: beige,
cover: blue
(color can be customized) |
|
material
|
metal plate
|
|
outside dimensions (mm)
|
600(W)*633(D)*533(H)
|
|
inner working dimensions (mm)
|
494(W)*481(D)*481(H)
|
|
filter quantity
|
1 filter as default, but max 5 filters can be added
|
|
filter size(mm)
|
144mm*57mm
|
|
weight (kg)
|
40 kg
|
|
Interface Type(Kindly confirm which interface need)
|
VGA,DB9,DB25,2.0USB,3.0USB,SMA,RJ45,BNC,RCA,DC,AC,HDMI
|
Details Images
More Shield Filters Optional
|
filter interface
|
specification
|
|
N-SMA
|
50Ω, 0～6GHz
|
|
USB2.0
|
2.0,480Mbps/1.8A
|
|
DB9
|
Current:0-100V/1.6A
|
|
DB25
|
Current:0-100V/1.6A
|
|
DC jack(A type)
|
ID=2.5mm,1KV
|
|
RJ45(A type)
|
10/100/1000Mbased Ethemer
|
|
RJ45(10G)
|
10000M based Ethemer
|
|
RS232(B type)
|
921,600bps
|
|
VGA（B type）
|
15-pin, suitable for Laptop pcyt
|
|
AC jack(A type)
|
ID=110-250V,10A or 15A
|
|
HDMI(A type)
|
HD transmit
|
Professional full test before delivery
